5.2 Wiring the Keypad to a Maglock (Fail-Safe)

(Utilizing the same power supply for both the keypad and the lock.)

Use the following steps to connect thekeypadtoaMaglock(Fail-

Safe):

1. Connect the red wire (V+) to the blue wire (common), and

then connect them to the positive on the power supply.

2. Connect the gray wire (normally closed) to the positive on

the maglock.

3. Connect the black wire (V-) to the negative on the Maglock,

and then connect them to the negative on the power supply.

5.3 Wiring the Keypad to an Electric Strike

(Fail-Secure)

(Utilizing the same power supply for both the keypad and the

lock.)

Use the following steps to connect the keypad to an electric strike

(fail-secure) (seeFigure6forreference):

1. Connect the red wire (V+) to the blue wire (common), and

then connect them to the positive on the power supply.

2. Connect the green wire (normally open) to the positive on

the strike.

3. Connect the black wire (V-) to the negative on the strike, and

then connect them to the negative on the power supply.

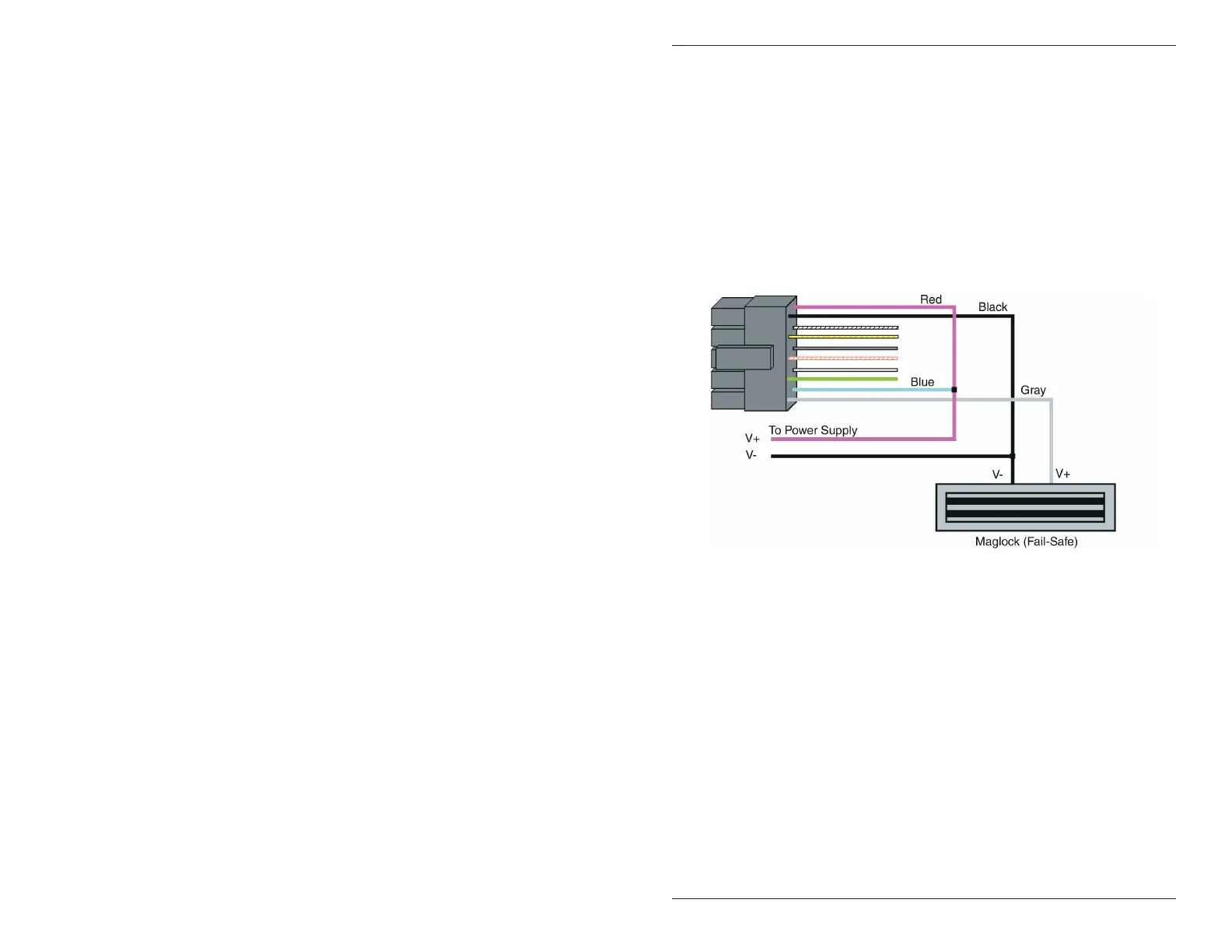

Figure 5 Wiring the Keypad to a Maglock (Fail-Safe)

IEI 212eM/242eM Standalone Installation/Programming Manual

Document # 6174000, Rev. 1.1 9
