11

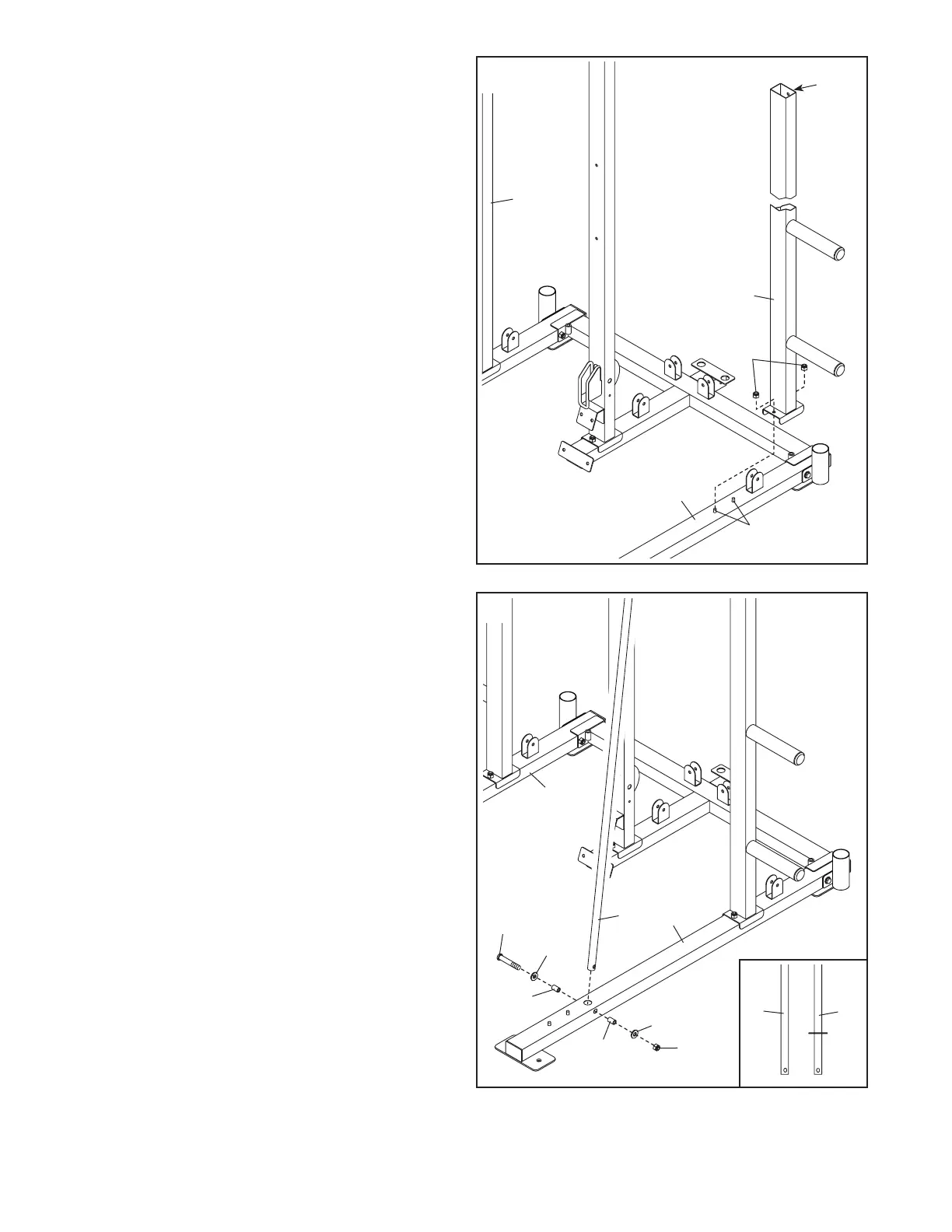

6. Attach the Left Support (6) to the left Base (1)
with the indicated two M10 x 65mm Carriage
Bolts (83) and two M10 Locknuts (79). Do not
tighten the Locknuts yet.
Repeat this step with the Right Support (7).
6
Hole
1
79
7
83
7. See the inset drawing. Identify the Weight Bar
Guides (5) and the Carriage Guides (64).
Attach a Weight Bar Guide (5) to the left Base
(1) with an M10 x 90mm Bolt (89), two M10
Washers (84), two 25mm Spacers (55), and an
M10 Locknut (79). Do not tighten the Locknut
yet.
Repeat this step with the other Weight Bar
Guide (not shown).
89
84
55
5
1
1
84
55
79
5 64
6
7
