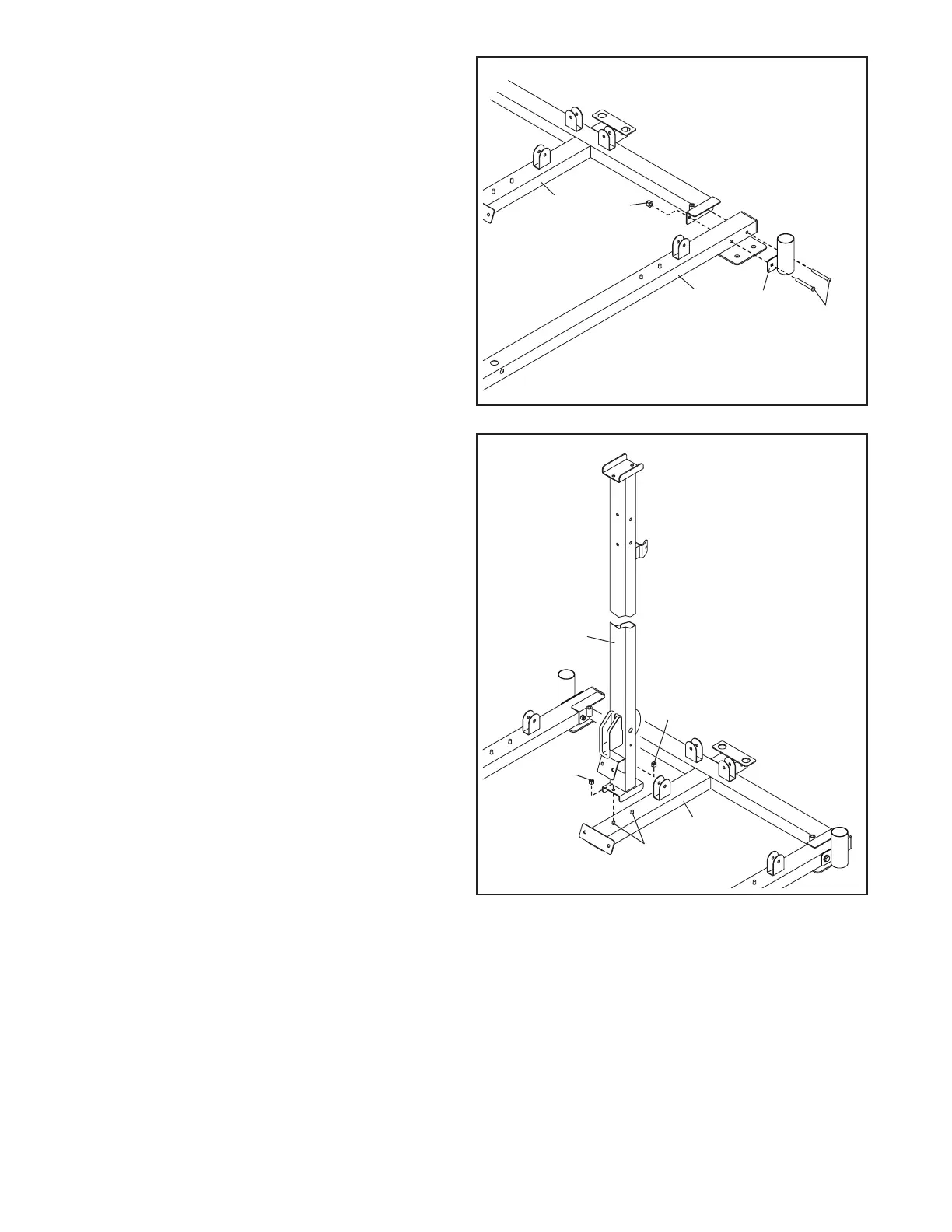

4. Attach a Base (1) and a Storage Tube (137) to
the Center Base (2) with two M10 x 93mm Bolts
(97) and an M10 Locknut (79). Do not tighten
the Bolts yet.
Attach the other Base (not shown) and the
other Storage Tube (not shown) to the Center
Base (2) in the same way.
5. Attach the Backrest Upright (8) to the Center
Base (2) with the indicated two M10 x 65mm
Carriage Bolts (83) and two M10 Locknuts (79).
Do not tighten the Locknuts yet.
5
8
79
79
2
83
2
79
97
137
1
4
