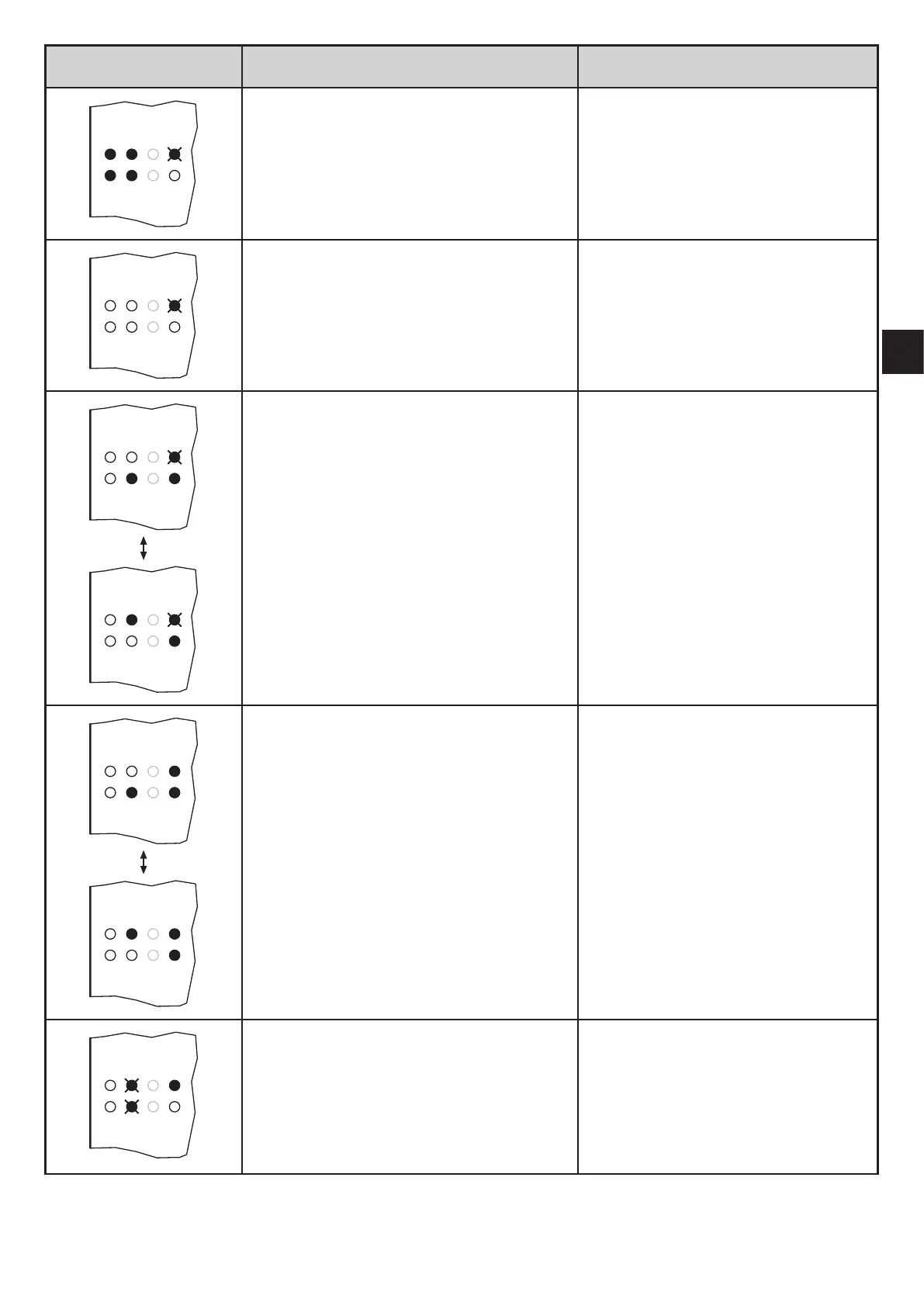

LED display Cause of the fault Troubleshooting
K1 E1 T1 POWER
K2 E2
Fault T
Fault
• Overvoltage
• Undervoltage
► Check wiring
► Check power supply
K1 E1 T1 POWER
K2 E2
Fault T
Fault
• Overvoltage
• Undervoltage
► Check wiring
► Check power supply
K1 E1 T1 POWER
K2 E2
Fault T
Fault
K1 E1 T1 POWER
K2 E2
Fault T
Fault
• Undervoltage ► Check wiring
► Check power supply
K1 E1 T1 POWER
K2 E2
Fault T
Fault
K1 E1 T1 POWER
K2 E2
Fault T
Fault
• Short circuits ► Check wiring
K1 E1 T1 POWER
K2 E2
Fault T
Fault
• Input S43 active more than 0�5 s
after input S34 (→ 8.1.2)
• Feedback contact error
• Short circuit S34/S44
► Check wiring
► Switch the fail-safe sensor/
switch off and on again
