8.5 Safety relay for e-stop, for 2-channel fail-safe sensors/
switches with contact output or for mechanical switches
In this operating mode the simultaneity of the contacts is not monitored�
The 2-channel fail-safe sensors/switches are for example "electro-sensitive
protective equipment" (ESPE) to EN 61496-1.
The contacts of the sensors/switches must allow a minimum current of 6
mA�
8.5.1 Connection

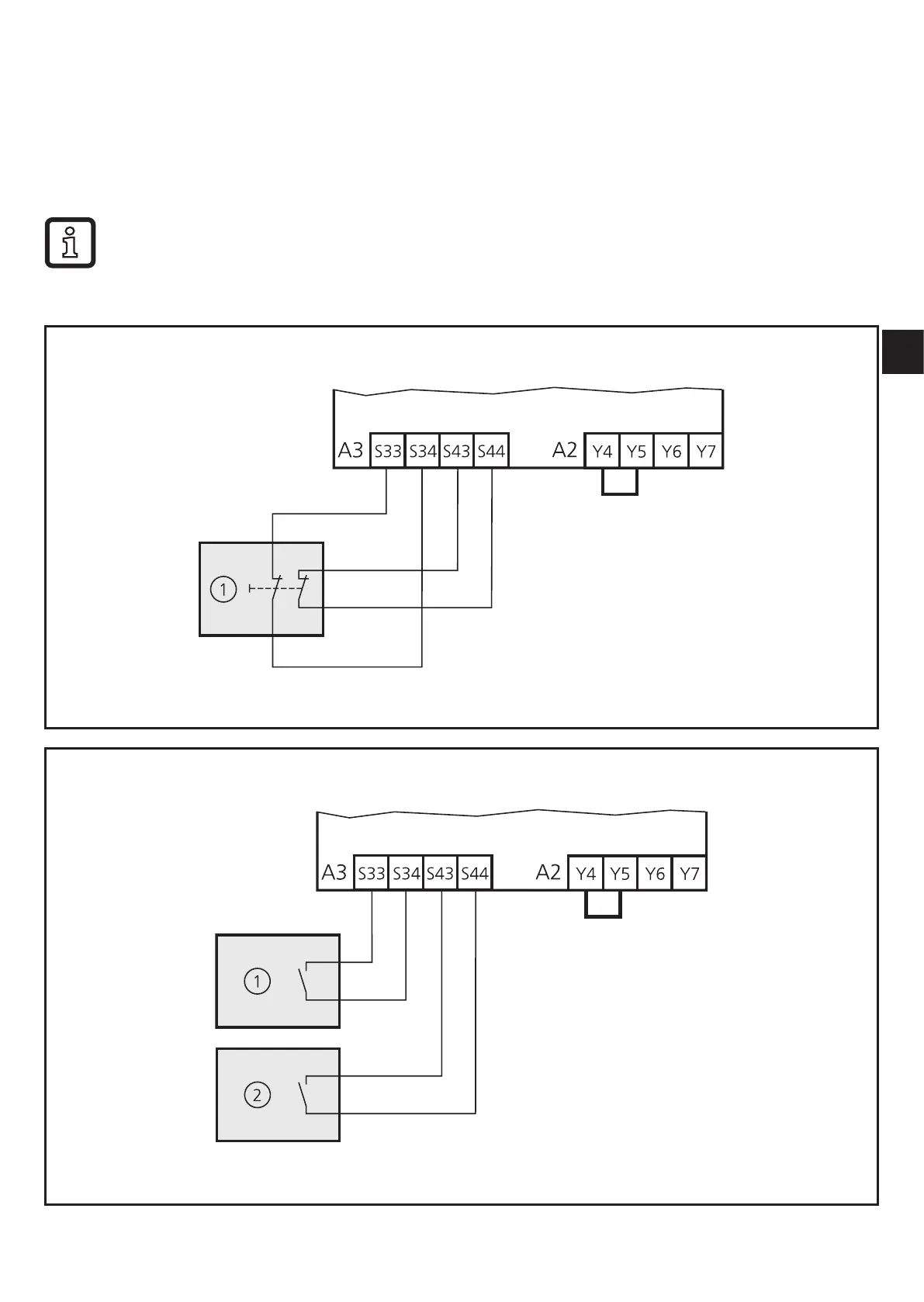

Connection e-stop / 2-channel fail-safe sensors/switches:
G1502S
1: Fail-safe sensor/switch
Connection of two mechanical switches:
G1502S
1: Mechanical switch 1 2: Mechanical switch 2
