IFM Electronic G1502S - Scale Drawing; Technical Data

48

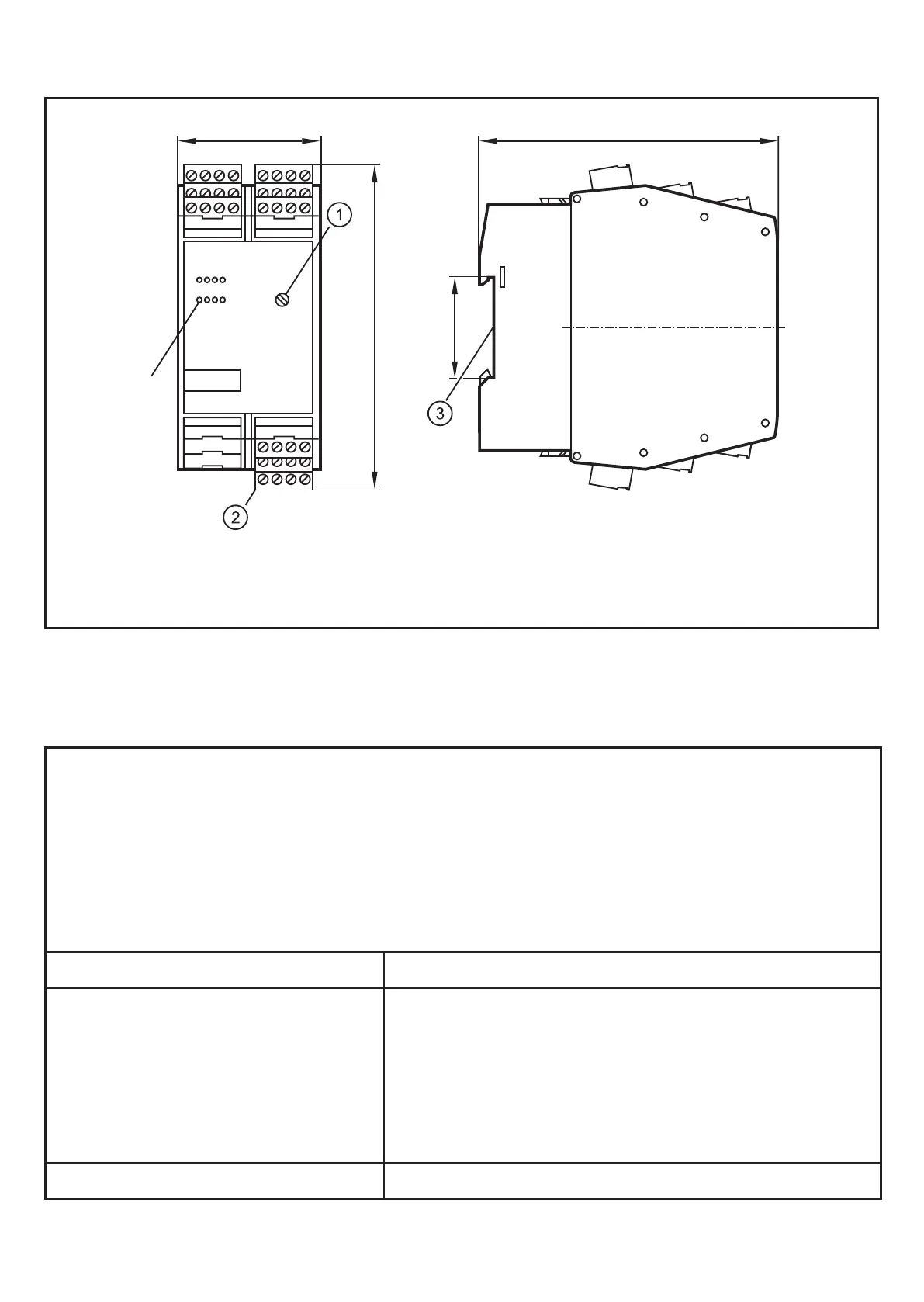

10 Scale drawing
Original Scale Drawing (MTD)
EPS Source
Product Scale Drawing
Frame Size: 80 mm x 45 mm
P_MZ_100_0563
114
LED
50 105
35,5
114
LED
50
105
35,5
1: Rotary switch for switch-o󰀨 delay
2: Screw terminal (supplied)
11 Technical data
G1502S
Safety relay with relay outputs
Terminal block Phoenix Contact MSTBO
Meets the requirements of:
EN ISO 13849-1: 2015, category 4 PL e, SIL 3 (IEC 61508)
Electrical design
Relay
Output function
3 safety-related NO contacts (floating) without delay;
2 non safety-related signal outputs without delay (1 x
NO, 1 x NC, floating contacts)
2 safety-related NO contacts (floating) with switch-off
delay
1 signal output (positive switching) with delay
Operating voltage
24 V DC (19.2...30) incl. 5 % residual ripple
