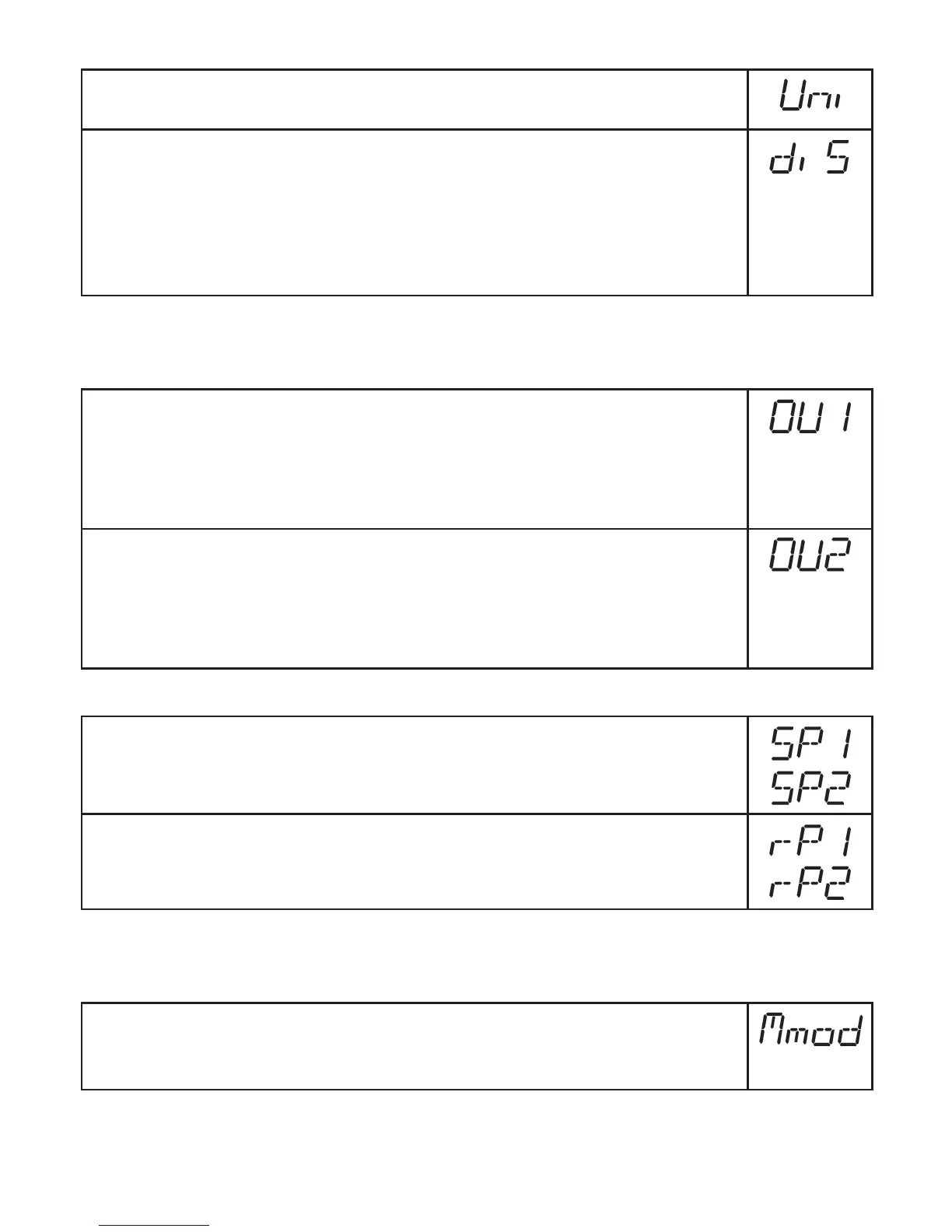

9.2 Configuration of the display (optional)

Select [Uni] and set the unit of measurement: ►

[°C] or [°F].

Select [diS] and set the update rate and orientation of the display: ►

[d1]: Update of the measured values every 50 ms. -

[d2]: Update of the measured values every 200 ms. -

[d3]: Update of the measured values every 600 ms. -

[rd1], [rd2], [rd3]: Display as for d1, d2, d3; rotated by 180°. -

[OFF]: The display is switched off in the operating mode. -

9.3. Setting of the output signals

9.3.1 Setting of the output function

Select [OU1] and set the function: ►

[Hno] = Hysteresis function / normally open. -

[Hnc] = Hysteresis function / normally closed. -

[Fno] = Window function / normally open. -

[Fnc] = Window function / normally closed. -

Select [OU2] and set the function: ►

[Hno] = Hysteresis function / normally open. -

[Hnc] = Hysteresis function / normally closed. -

[Fno] = Window function / normally open. -

[Fnc] = Window function / normally closed. -

9.3.2 Setting of the switching limits

Select [SP1] / [SP2] and set the value at which the output switches. ►

Select [rP1] / [rP2] and set the value at which the output switches off. ►

rPx is always smaller than SPx. The unit only accepts values which are

lower than the value for SPx.

9.4 User settings (optional)

9.4.1 Setting the measurement method

Select [Mmod] and set the value: ►

[3w] for 3-wire measurement. -

[4w] for 2-wire and 4-wire measurement -
