4 Installation
► Disconnect power before installation�
► For installation choose a flat mounting surface�
Maximum thickness of the mounting surface: 10 mm

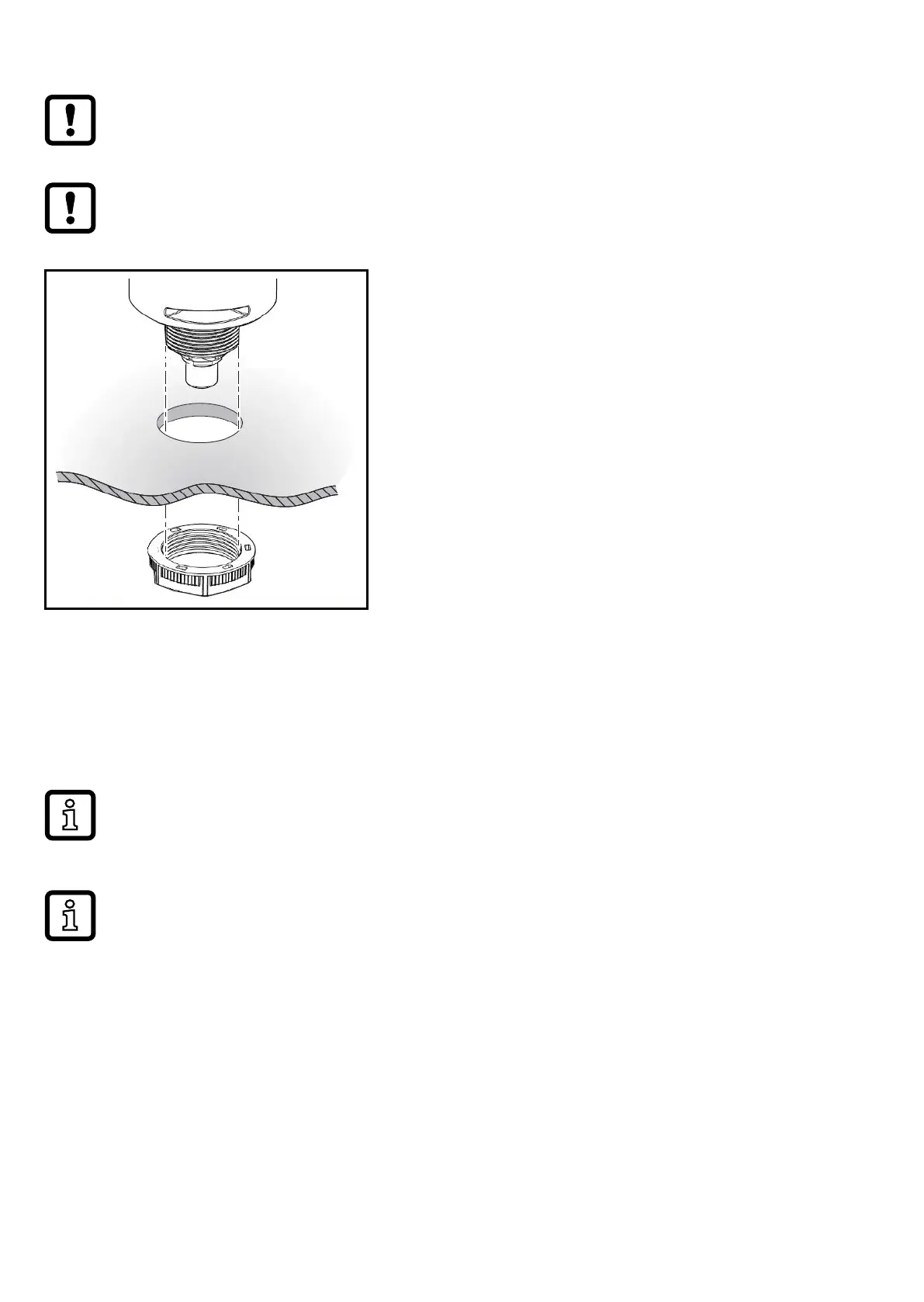

Installation example:
► Create a mounting section Ø 31 mm
► Only mount the unit in upright position using the supplied M30 nut�
Tightening torque 4�5 Nm�
Special accessories are available to allow mounting the unit using a
mounting tube or pole�
Integrated seals at the bottom of the unit and an O-ring on the cover
prevent penetration of humidity�
More information about available accessories at www�ifm�com
