IFM DV2120 - Operating and Display Elements; Operation Modes; IO-Link Operation

8

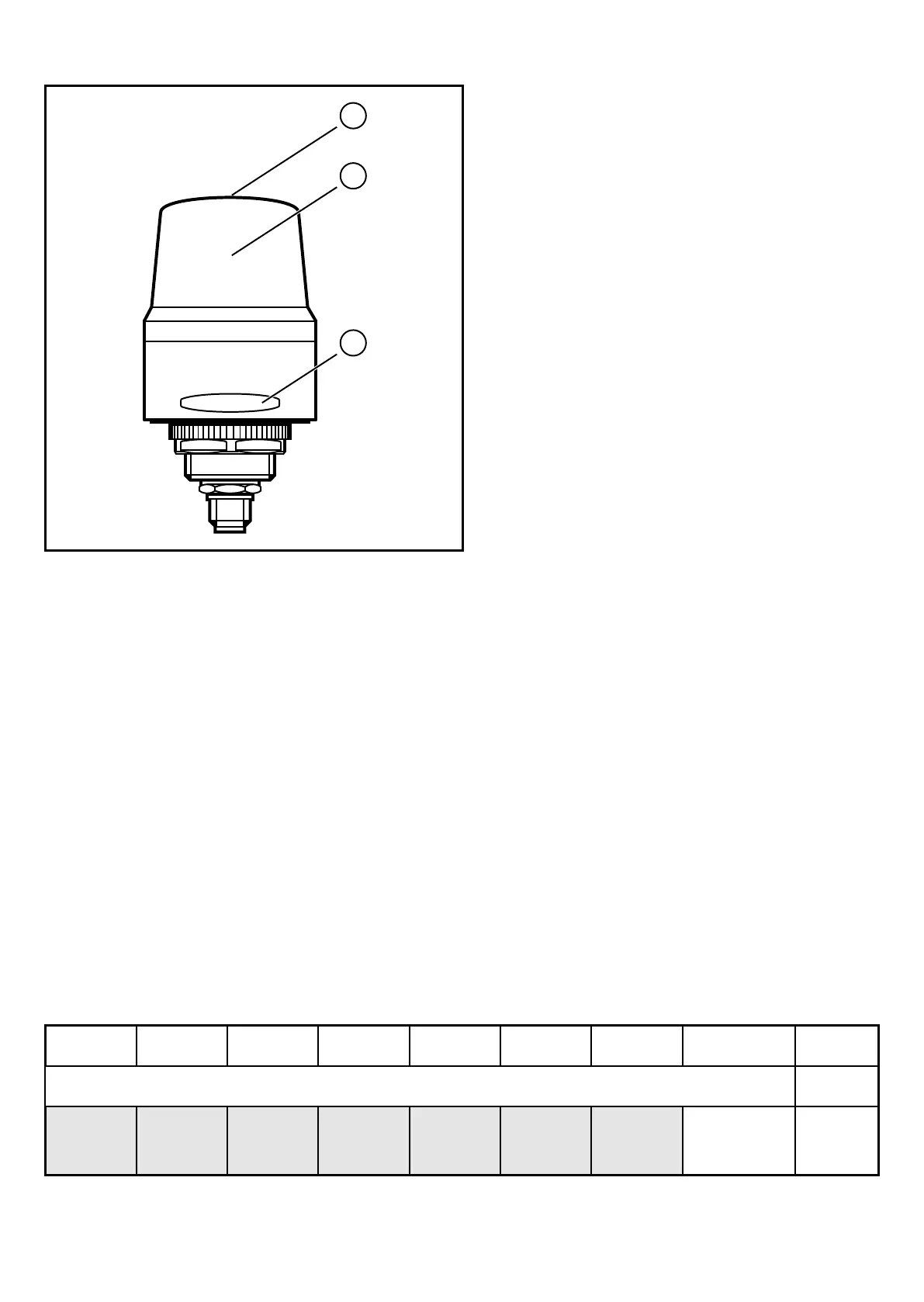

6 Operating and display elements
Original Scale Drawing (MTD)
EPS Source
Product Scale Drawing
Frame Size: 80 mm x 27 mm
P_MZ_e200_0102
80
92,3
75,5
M30x 1,5
36
5
M12x1
¹
LEDs
3
1
2
1: Feedback button (only DV21x1)
2: LED segment 1 with 3 RGB LEDs
3: Buzzer (only DV213x)
7 Operation
7.1 IO-Link
7.1.1 General
Connect the unit to an IO-Link master (A port) using a 5-pole connection cable.
The controller switches the LED segment on and off in the configured colours
according to the set parameters�
Via the parameter "Operating mode" the following modes can be set:
• On/off mode
• RGB mode
Versions with feedback button: The status of the feedback button can be read
(both in on/off mode and in RGB mode).
7 6 5 4 3 2 1 0 PDin
Device fault information Byte 0
Feedback
button
Byte 1
