IFR COM-120B Service Manual

STEP
PROCEDURE
20. With cursor on
"PM
DEVIATION
15
RAD,"
press
ENTER Key.
21. Edit Data Field using
DATA
SCROLL
Keys
(17)
tor Modulation Analyzer reading
closest to
15 Radians.
22.
Press ENTER Key
and
wait
until
Field
displays CALIBRATED.
23. With
cursor
on
"PM
DEVIATION 10 RAD,"
press
ENTER Key.
24. Edit
Data Field
using
DATA
SCROLL
Keys
(17)
tor Modulation Analyzer reading
closest to
10 Radians.
25. Press ENTER
Key
and
wait
until
Field
displays
CALIBnATED.
26.
With
cursor on
"PM
DEVIATION 1 RAD,"
press
ENTER Key.
27. Edit Data
Field
using
DATA
SCROLL
Keys
(17)
tor Modulation Analyzer reading
closest to
1 Radian.
28. Press ENTER Key and
wait
until
Field
displays
CALIBRATED.
29. Press RETURN
Soft
Function Key F6
to
return
to Calibration Screen. Go to Step 3.
1-22

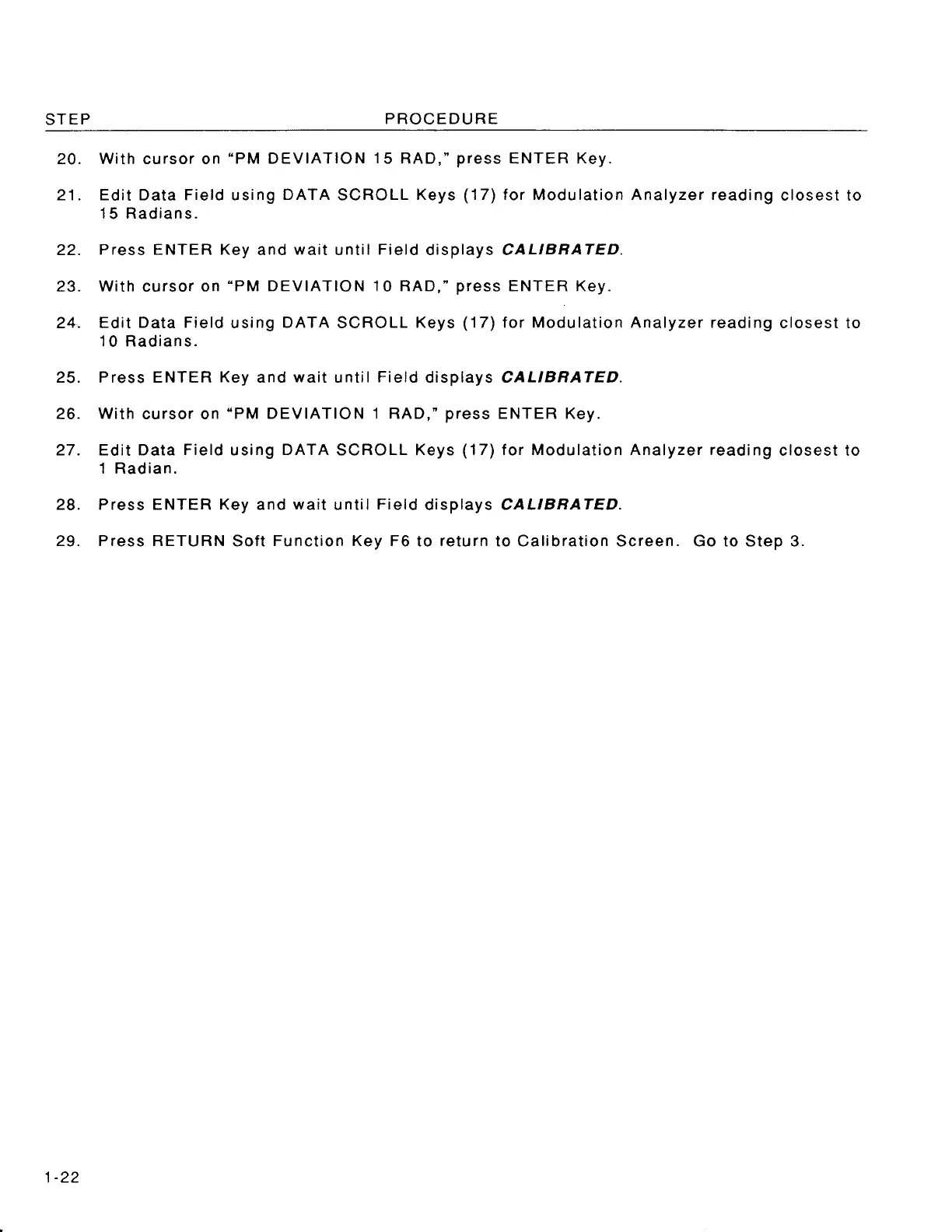

STEP
PROCEDURE
20. With cursor on "PM DEVIATION 15 RAD," press ENTER Key.
21. Edit Data Field using DATA SCROLL Keys (17) for Modulation Analyzer reading closest to
15 Radians.
22. Press ENTER Key and wait unti I Field displays CALIBRA TED.
23. With cursor on "PM DEVIATION 10 RAD," press ENTER Key.
24. Edit Data Field using DATA SCROLL Keys (17) for Modulation Analyzer reading closest to
10 Radians.
25. Press ENTER Key and wait until Field displays CALIBRATED.
26. With cursor on "PM DEVIATION 1 RAD," press ENTER Key.
27. Edit Data Field using DATA SCROLL Keys (17) for Modulation Analyzer reading closest to
1 Radian.
28. Press ENTER Key and wait until Field displays CALIBRATED.
29. Press RETURN Soft Function Key F6 to return to Calibration Screen. Go to Step 3.
1-22
Scans by ArtekMedia © 2008
