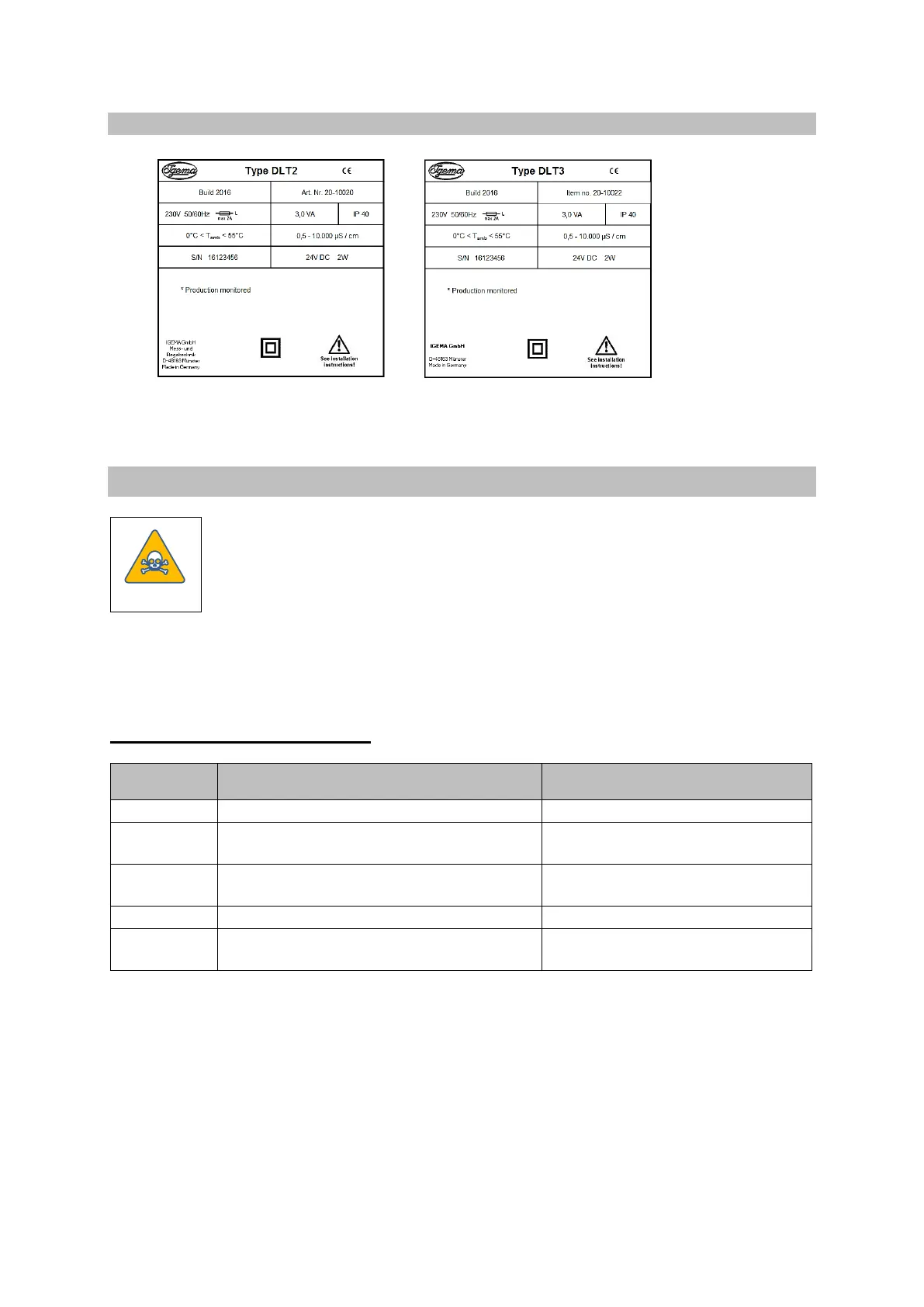

7.3 Data plate
8. Fault analysis and rectification
The device terminal strip is live during operation!!
Before working on the device disconnect it from the mains!!
In operation various error states are indicated in the display. These error codes can be
assigned to possible causes of error with the following tables.
Evaluation device malfunctions:
Error code
Cause
Remedial Action
000
Fault in the ADC converter
Replace device
001
Malfunction of the 24-volt supply voltage of
the evaluation device
Replace device
002
Malfunction in the probe supply voltage
Check data cable for fault ;
Replace device
005
Extra relay faulty
Replace device
8.8.8.
(flashing)
Segments in display faulty
Replace device
Danger
