OPERATION

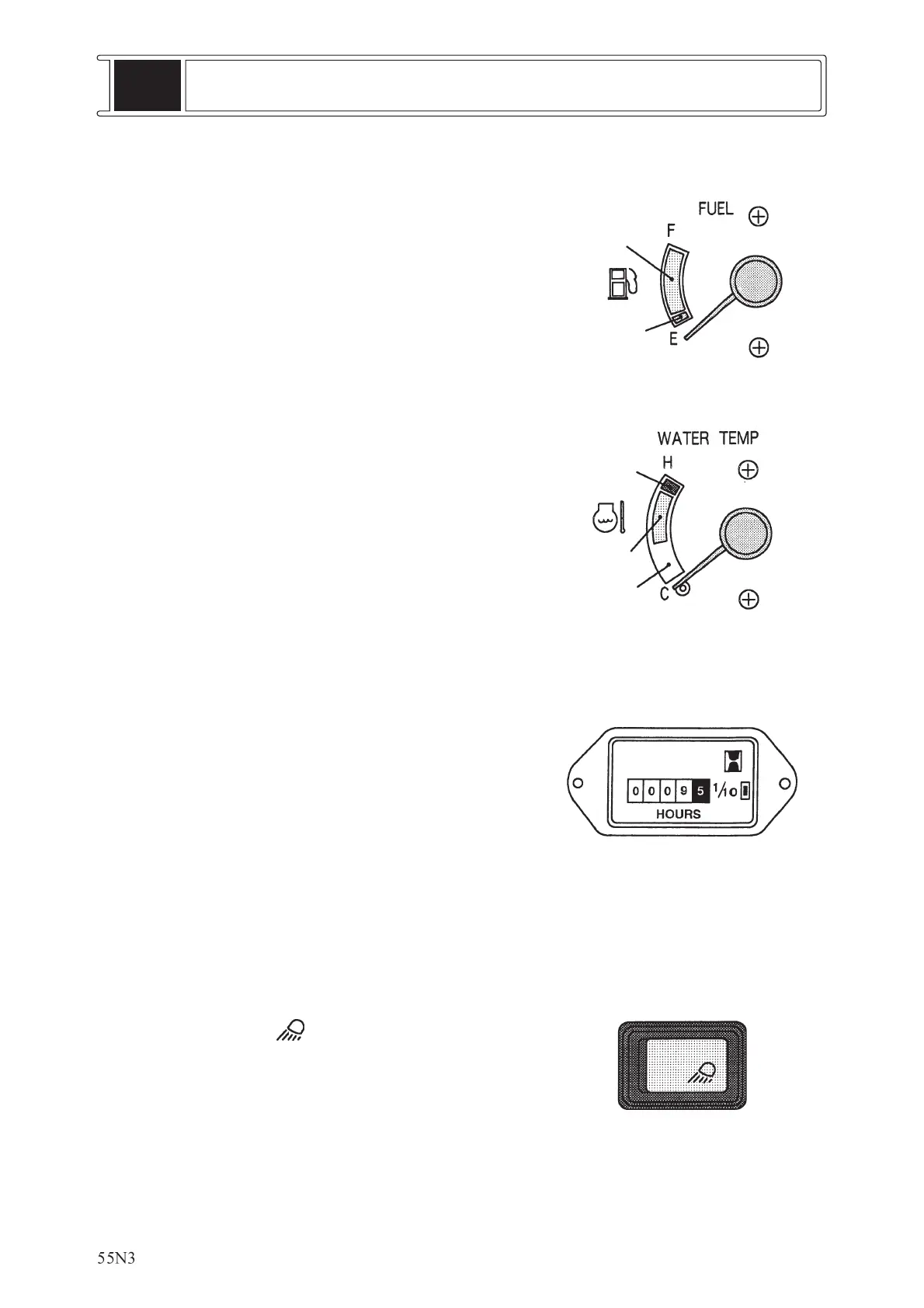

2. GAUGES and METER
f
Fuel Level Gauge
It indicates the amount of in the fuel tank. Add fuel
immediately when the gauge indicates the level
is in the E range.
F : The fuel tank is full.
E : Fuel level is too low.
g
Water Temperature Gauge
This indicates the engine coolant temperature.
Upon start-up, the lowest “White” range
indicates. While running the engine, with out load
and low idling warming up.
The “Green” range is the normal operating
temperature.
The “Red” range indicates overheating.
If the gauge indicate red range, reduce machine
operating speed and keep the engine at low idle
until the engine is cooled down. Stop the engine.
Check the coolant. Check the fan drive belt. Have
any necessary repair made.
h
Service Hour Meter
Indicates the total operating hours of the
machine.
It should be used to determine service hour
maintenance intervals.
3. SWITCHES
i Light Switch
Push down on the [ ] marked of the switch to
turn the light on.
Push down on the blank half of switch to turn the
working light off.
Green
Red
Green
Red
White
LIGHT
