12 BEFORE YOU OPERATE THE MONITOR
Turn the monitor ON and OFF.
Number(1-9)/
Other /
Function(F1-
F12)
Under iiWare: 0-9 numeric input
Under Windows: 0-9 numeric input,
Start/Space/ALT+Tab/ALT+F4/F1-12
for Keyboard function
Display
Provide source and resolution
information.
Home Android system main screen button.
Input Select the source.
Green Lock and unlock Buttons function.
Red
Lock and unlock Buttons and Touch
function.
ScreenO󰀨 TurnthebacklightOnandO󰀨.
Navigate through submenus and
settings.
: Up Button
: Down Button
: Left Button
: Right Button
Enter
Conrmyourselectionorsave
changes.
Quickly start “Writing Software”.
PgUp / PgDn
WhenselectFile:Therst/Last
When Internet browser: Scroll Up /
Scroll Down
Not available on this model.
Turnonoro󰀨themutefunction
when the Menu is not displayed.
MENU
Display the “Screen Setting“ menu
when the Android system is not
displayed.
Yellow Lock and unlock Touch function.
Blue Freeze the picture.
Backspace
Back
Return to a previous menu or closes
the OSD Menu.
VOL+ / VOL-
VOL+: Increase the sound volume.
VOL-: Decrease the sound volume.

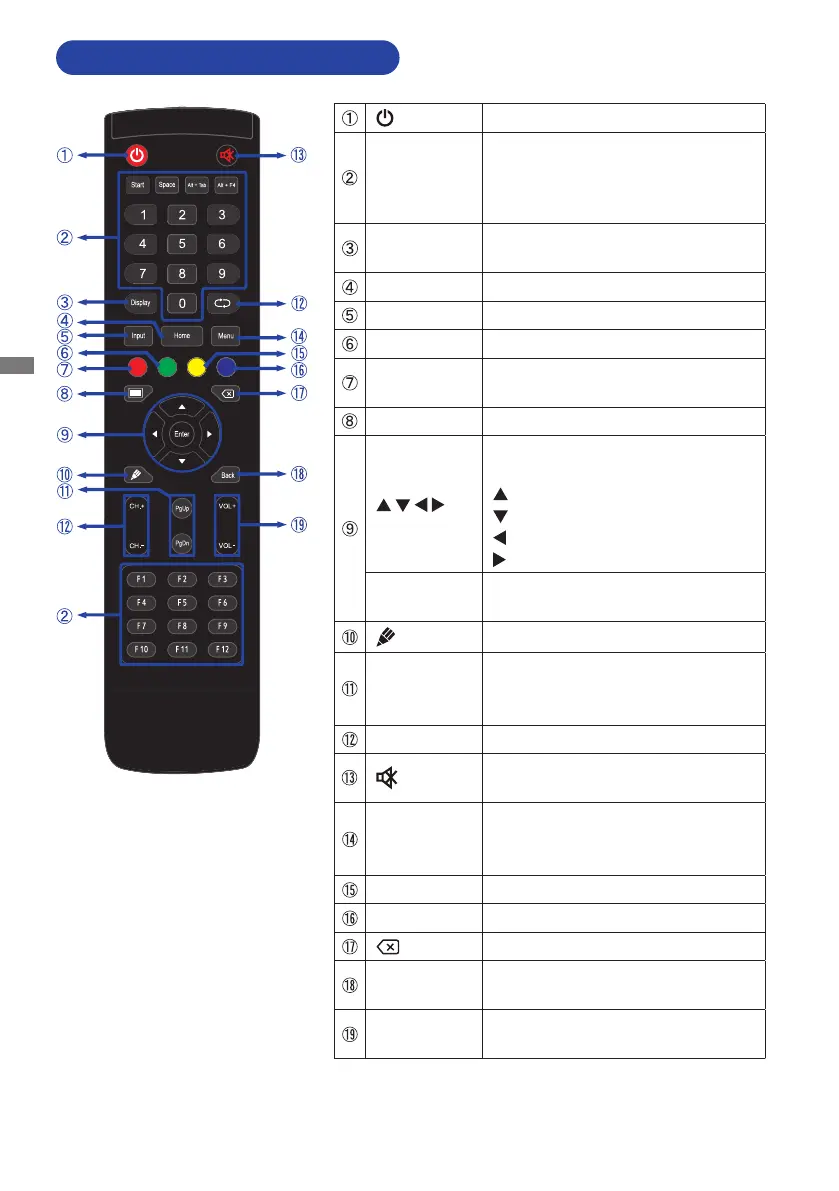

CONTROLS : REMOTE CONTROL

Iiyama ProLite TE8604MIS Specifications

General

Pixel pitch	0.4935 x 0.4935 mm
Response time	8 ms
Display diagonal	86 \
Touch technology	Multi-touch
Display brightness	350 cd/m²
Display technology	IPS
Native aspect ratio	16:9
Horizontal scan range	30 - 80 kHz
Touchscreen technology	Infrared
Contrast ratio (dynamic)	3500:1
Contrast ratio (typical)	1200:1
Display number of colors	1.07 billion colors
Display diagonal (metric)	217.4 cm
Active display area (W x H)	1895 x 1066 mm
Number of simultaneous touchpoints	20
Orientation	Horizontal
Product color	Black
Product design	Digital signage flat panel
Bezel width (side)	14 mm
Placement supported	Indoor
Bezel width (bottom)	43 mm
Panel mounting interface	800 x 600 mm
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	390 W
Package depth	270 mm
Package width	2102 mm
Package height	1278 mm
Package weight	84300 g
Purpose	Universal
Number of OSD languages	9
Operating hours (hours/days)	24/7
Mean time between failures (MTBF)	50000 h
On Screen Display (OSD) languages	CZE, DEU, DUT, ENG, ESP, FRE, ITA, POL, RUS
Graphics card	Mali-G52
Internal memory	4 GB
Processor cores	4
Processor family	ARM Cortex
Processor architecture	ARM Cortex-A73
Internal storage capacity	32 GB
Operating system installed	Android
DVI port	-
Interface	USB
USB version	3.2 Gen 1 (3.1 Gen 1)
USB ports quantity	5
Ethernet LAN data rates	1000 Mbit/s
HDMI input ports quantity	3
Ethernet LAN (RJ-45) ports	2
HDMI output ports quantity	1
Cables included	AC, HDMI, USB, USB Type-C
RMS rated power	32 W
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C

Weight and Dimensions

Depth	86 mm
Width	1957 mm
Height	1159 mm
Weight	64400 g
