Iiyama ProLite TE8604MIS User Manual

ENGLISH
OPERATING THE MONITOR 43
SCREEN ADJUSTMENTS

The screen adjustments described in this manual are designed to set image position and minimize
ickerorblurfortheparticularcomputerinuse.

The monitor isdesigned to provide thebestperformanceatresolutionof1920× 1080, butcan
notprovidethebestatresolutionsoflessthan1920×1080becausethepictureisautomatically
stretchedtotthefullscreen.Itisrecommendedtooperateatresolutionof1920×1080innormal
use.

Displayed text or lines will be blurred or irregular in thickness when the picture is stretched due to
the screen enlargement process.

It is preferable to adjust the image position and frequency with the monitor controls, rather than
the computer software or utilities.

Perform adjustments after a warm-up period of at least thirty minutes.

Additional adjustments may be required after the Auto Adjust depending on the resolution or signal
timing.

The Auto Adjust may not work correctly when displaying the picture other than the screen
adjustment pattern. In this case, manual adjustments are required.
There are two ways to adjust the screen. One way is automatic adjustment for Position, Clock
Frequency and Phase. The other way is performing each adjustment manually.
Perform the Auto Adjust first when the monitor is connected to a new computer, or resolution is
changed.Ifthescreenhasaickerorblur,orthepicturedoesnottinthedisplayareaafterperforming
the Auto Adjust, manual adjustments are required. Both adjustments should be made by using the
screenadjustmentpattern(Test.bmp)obtainedviatheIIYAMAwebsite(http://www.iiyama.com).
Adjust the image by following the procedure below to get the desired picture.
This manual explains adjustment under Windows OS.
Display the picture at the optimum resolution.
Enter the Test.bmp (screen adjustment pattern) to wallpaper.

Consult the appropriate documentation for doing this.

Set the display position to center in the wallpaper setting dialogue box.

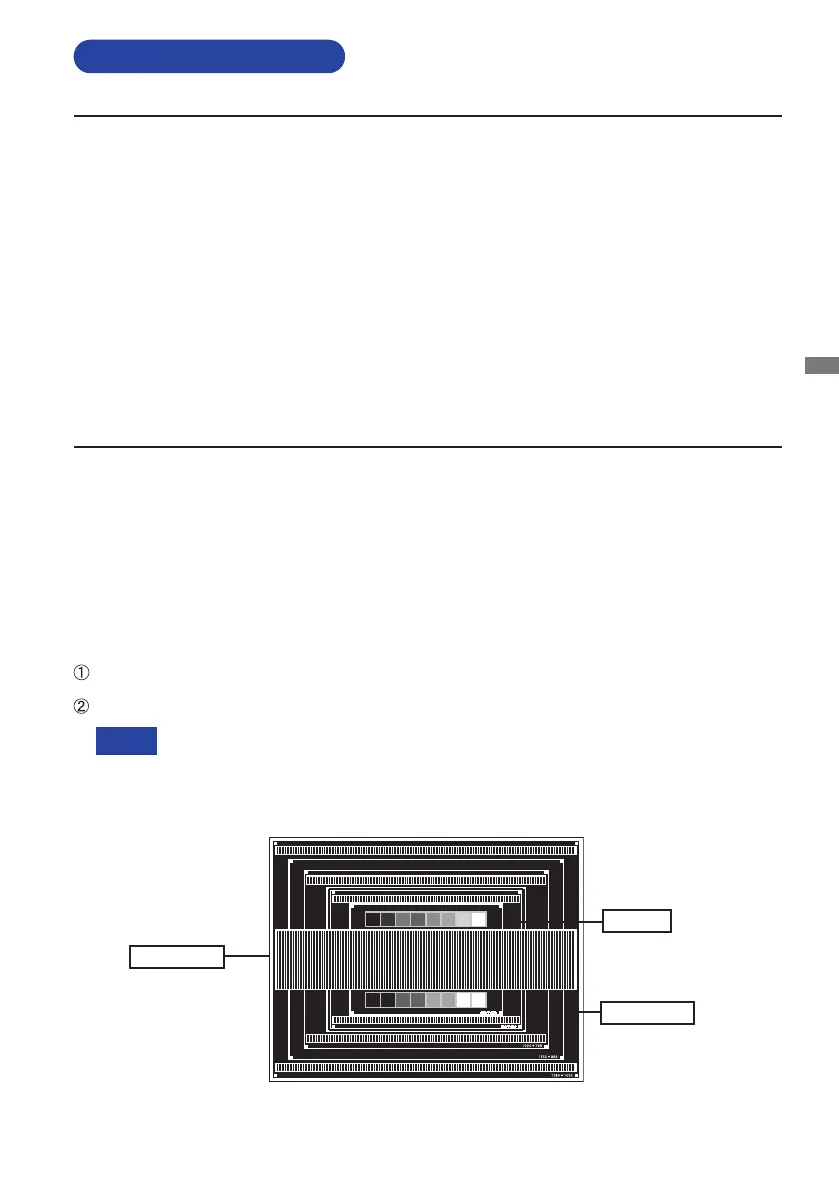

[Adjustment pattern]
Zebra pattern
Color bar
Picture frame
NOTE
Adjust the image by following the procedure below to get the desired picture when selecting Analog input.

Iiyama ProLite TE8604MIS Specifications

General

Pixel pitch	0.4935 x 0.4935 mm
Response time	8 ms
Display diagonal	86 \
Touch technology	Multi-touch
Display brightness	350 cd/m²
Display technology	IPS
Native aspect ratio	16:9
Horizontal scan range	30 - 80 kHz
Touchscreen technology	Infrared
Contrast ratio (dynamic)	3500:1
Contrast ratio (typical)	1200:1
Display number of colors	1.07 billion colors
Display diagonal (metric)	217.4 cm
Active display area (W x H)	1895 x 1066 mm
Number of simultaneous touchpoints	20
Orientation	Horizontal
Product color	Black
Product design	Digital signage flat panel
Bezel width (side)	14 mm
Placement supported	Indoor
Bezel width (bottom)	43 mm
Panel mounting interface	800 x 600 mm
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	390 W
Package depth	270 mm
Package width	2102 mm
Package height	1278 mm
Package weight	84300 g
Purpose	Universal
Number of OSD languages	9
Operating hours (hours/days)	24/7
Mean time between failures (MTBF)	50000 h
On Screen Display (OSD) languages	CZE, DEU, DUT, ENG, ESP, FRE, ITA, POL, RUS
Graphics card	Mali-G52
Internal memory	4 GB
Processor cores	4
Processor family	ARM Cortex
Processor architecture	ARM Cortex-A73
Internal storage capacity	32 GB
Operating system installed	Android
DVI port	-
Interface	USB
USB version	3.2 Gen 1 (3.1 Gen 1)
USB ports quantity	5
Ethernet LAN data rates	1000 Mbit/s
HDMI input ports quantity	3
Ethernet LAN (RJ-45) ports	2
HDMI output ports quantity	1
Cables included	AC, HDMI, USB, USB Type-C
RMS rated power	32 W
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C

Weight and Dimensions

Depth	86 mm
Width	1957 mm
Height	1159 mm
Weight	64400 g
