Iiyama ProLite TE8604MIS User Manual

ENGLISH
24 OPERATING THE MONITOR

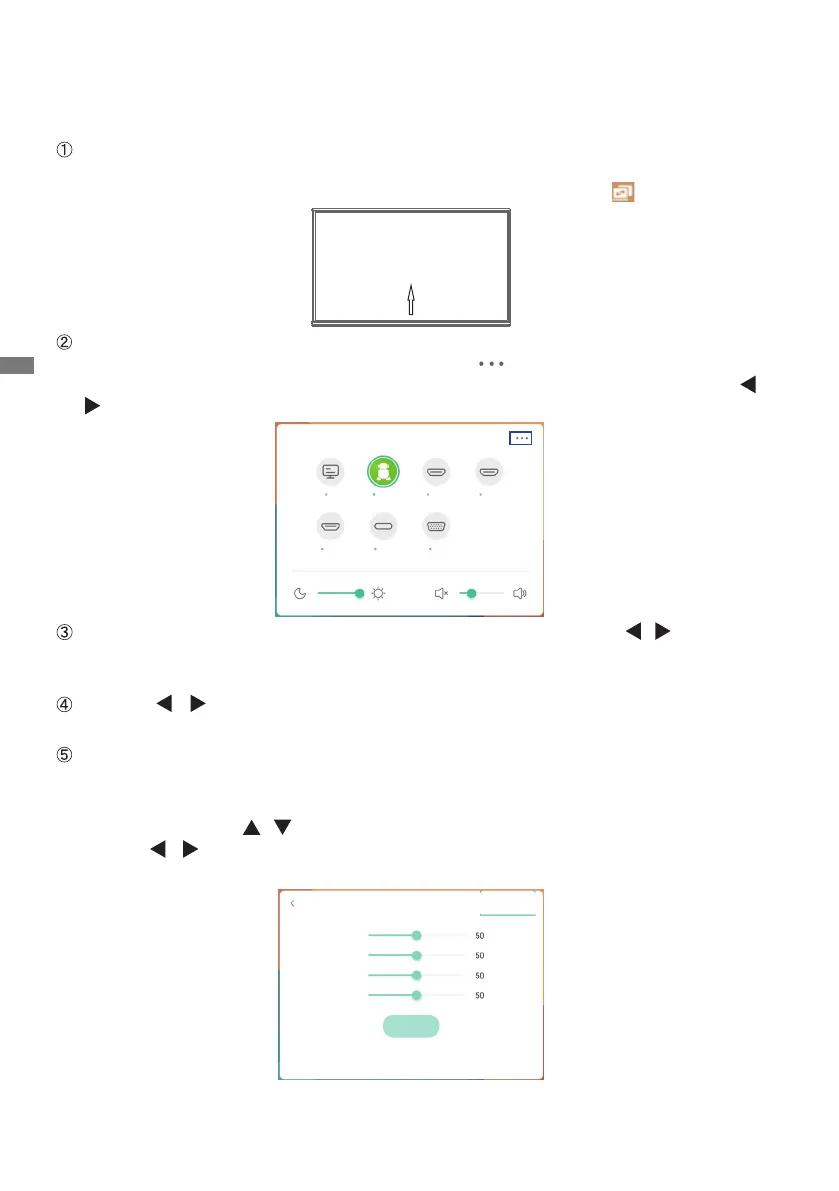

OPERATING THE MONITOR
To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT
TIMING shown on page 57. You are also able to adjust the picture by following the button operation
shown below. For more detailed adjustments, see page 43 for SCREEN ADJUSTMENTS.
Take middle point position on the buttom of display screen as starting point, use the
touch pen to drag towards screen center position to call up source menu as shown
below. Or press Input Button on the remote control. Click the
icon at the top
right of the screen.
Start the On Screen Display feature. "Common setting" is displayed. Then, press
the menu button on the remote control or click
on Common setting menu with
touch pen. There are additional Menu items which can be switched by using the
/
Buttons on the remote control or with the touch pen.
Select the Menu item of the adjustment you want to make. Use the / Buttons on
the remote control or with the touch pen to highlight the desired adjustment item.
Then, press the Enter button on the remote control.
Use the
/ Buttons on the remote control or with the touch pen to make the
appropriate adjustment or setting.
Press the Back Button on the remote control or click blank area outside menu with
the touch pen to exit menu.
For example, to correct for vertical position, select Menu item of "Adjust setting". Select "V
Position" by using the
/ Buttons on the remote control or with the touch pen.
Use the
/ Buttons on the remote control or with the touch pen to change the vertical
position settings. The vertical position of the overall display should be changing accordingly
while you are doing this.
Press the Back Button on the remote control or click blank area outside menu with the touch
pen, it ends, all changes are saved in the memory.
Slot-PC
iiWare
HDMI1 HDMI2
HDMI3
Type-C VGA
Common settings
Screen center
H Position
AdjustDisplayScreenAudio
V Position
Clock
Phase
AUTO
* "Adjust setting" is only
available for VGA input.

Iiyama ProLite TE8604MIS Specifications

General

Pixel pitch	0.4935 x 0.4935 mm
Response time	8 ms
Display diagonal	86 \
Touch technology	Multi-touch
Display brightness	350 cd/m²
Display technology	IPS
Native aspect ratio	16:9
Horizontal scan range	30 - 80 kHz
Touchscreen technology	Infrared
Contrast ratio (dynamic)	3500:1
Contrast ratio (typical)	1200:1
Display number of colors	1.07 billion colors
Display diagonal (metric)	217.4 cm
Active display area (W x H)	1895 x 1066 mm
Number of simultaneous touchpoints	20
Orientation	Horizontal
Product color	Black
Product design	Digital signage flat panel
Bezel width (side)	14 mm
Placement supported	Indoor
Bezel width (bottom)	43 mm
Panel mounting interface	800 x 600 mm
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	390 W
Package depth	270 mm
Package width	2102 mm
Package height	1278 mm
Package weight	84300 g
Purpose	Universal
Number of OSD languages	9
Operating hours (hours/days)	24/7
Mean time between failures (MTBF)	50000 h
On Screen Display (OSD) languages	CZE, DEU, DUT, ENG, ESP, FRE, ITA, POL, RUS
Graphics card	Mali-G52
Internal memory	4 GB
Processor cores	4
Processor family	ARM Cortex
Processor architecture	ARM Cortex-A73
Internal storage capacity	32 GB
Operating system installed	Android
DVI port	-
Interface	USB
USB version	3.2 Gen 1 (3.1 Gen 1)
USB ports quantity	5
Ethernet LAN data rates	1000 Mbit/s
HDMI input ports quantity	3
Ethernet LAN (RJ-45) ports	2
HDMI output ports quantity	1
Cables included	AC, HDMI, USB, USB Type-C
RMS rated power	32 W
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C

Weight and Dimensions

Depth	86 mm
Width	1957 mm
Height	1159 mm
Weight	64400 g
