IKA Plate - Installation

12 13
Installation

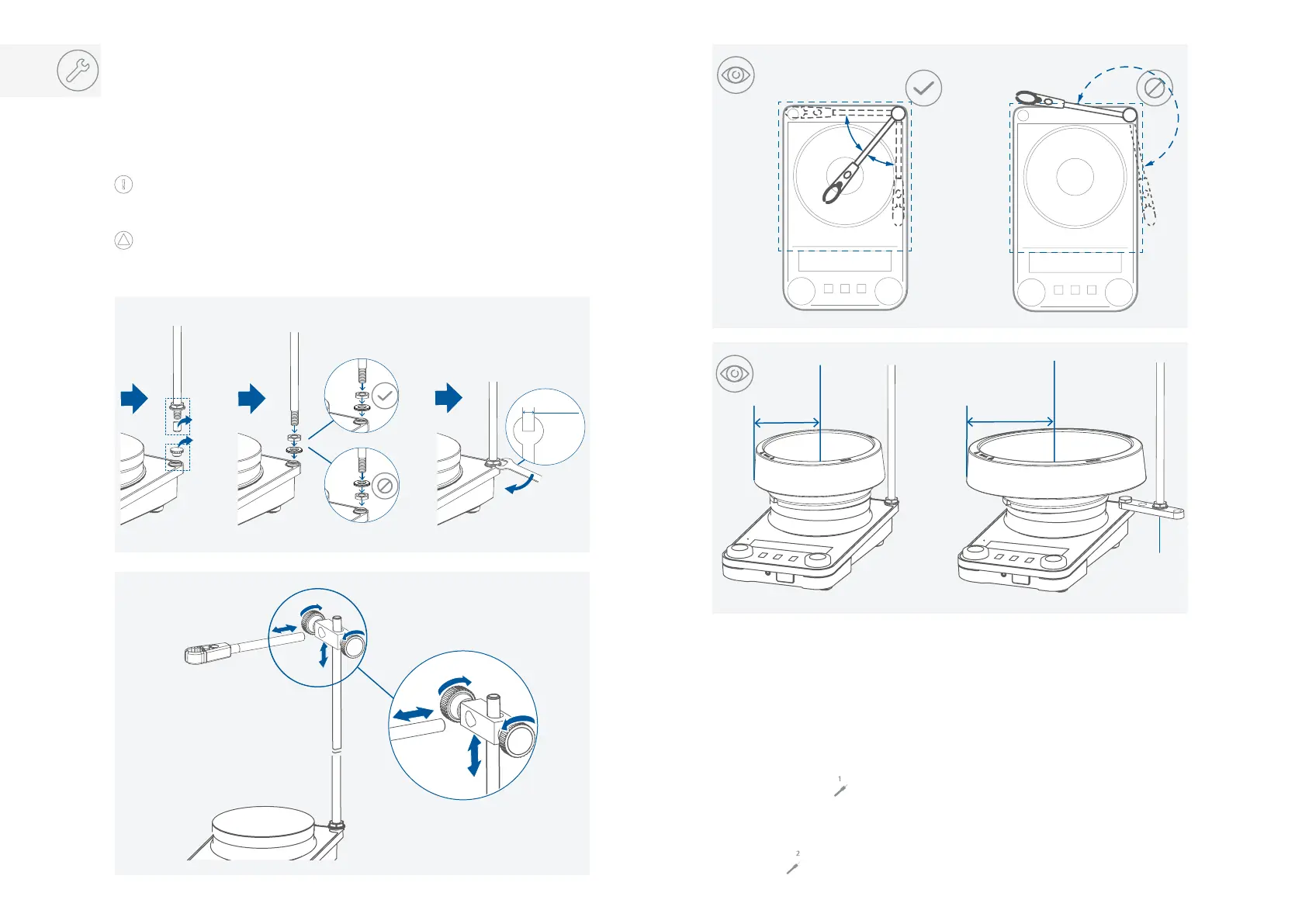

/// Assembling support rod / extension etc�
› Review the mounting and safety instructions of the IKA boss head clamp prior to using it� (see
“Accessories”)
› The device must not be suspended from the support rod!
Risk of tipping!
› Make sure that the center of mass of the attached device does not protrude over the safe
area indicated below with a dotted rectangle�
!
Notice!
› When using bath attachments with a diameter over 180 mm, use support rod in conjunction
with an extension (see “Accessories”)�
/// Connecting an external temperature sensor / thermometer
1� Switch off the device [main switch (A)]�
2� Connect safety contact thermometers according to DIN 12878 Class 2 or Temperature sensor
PT 1000 (single sensor) to the connection (M)�
3� Switch on the device via the main switch (A)�
Temperature sensor PT 1000:
› The actual temperature value shown on the display corresponds to the temperature of the
medium� The symbol shows on the display�
Contact thermometer ETS-D5 / ETS-D6:
› Follow the operating instructions for the contact thermometer�
The actual temperature value of the heating plate is shown on the display�
The symbol shows on the display�
≤ 90 mm
≥ 90 mm
H 16.3
2
1
1.
2.
3.
17 mm
1.
2.3.
4.
1.
2.
3.
4.
