IKEA Nutid Series Installation Instructions

7

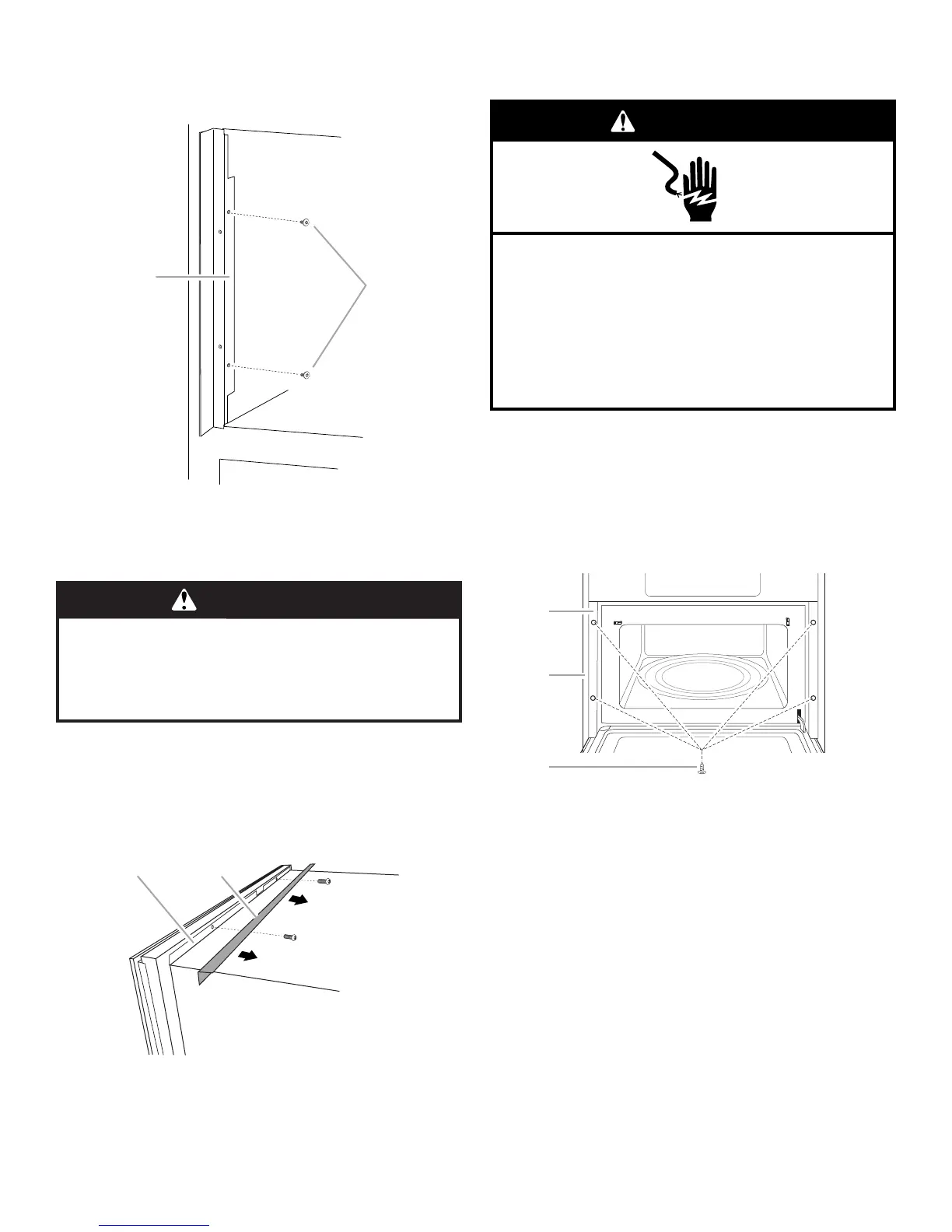

2. Using a drill with 5/64" (2 mm) bit, drill pilot holes through the
2 holes in the tiered edge.
3. Secure the bracket to the opening side rim with two
1/2" (1.27 cm) T10 screws.
4. Repeat on other side.
To Install Microwave Oven:
NOTE: For this microwave oven, the door handle may be used
for lifting. Do not use any other portion of the control panel, side
brackets, front frame, or trim for lifting.
1. Empty microwave oven of any loose items.
2. From behind the console, remove the 2 screws that secure
the top complement piece to the console. The top
complement piece will not be used in this installation.
3. Reinstall the 2 screws, securing the console to the
microwave oven.
4. With the microwave oven near the opening, plug the
microwave oven into the grounded 3 prong outlet.
5. Using 2 or more people, slide the microwave oven all the
way into the opening.
6. Open the microwave oven door. The holes in the door facing
frame should align with the holes in the mounting brackets.
Secure the microwave oven door facing to the mounting
brackets using four 1" (2.54 cm) T10 screws.
7. Proceed to the “Complete Installation” section.
A
B
A. Tiered edge
B. T10 screws
WARNING
Excessive Weight Hazard
Use two or more people to move and install
microwave oven.
Failure to do so can result in back or other injury.
A B
A. Back of console
B. Top complement piece
A
B
C
A. Microwave oven door
facing frame
B. Cabinet
C. 1" (2.54 cm) T10 screws (4)
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
WARNING
