IKEA Nutid Series Installation Instructions

6
Electrical Requirements
Observe all governing codes and ordinances.
Required:
■ A 120-volt, 60 Hz, AC-only, 15- or 20-amp electrical supply
with a fuse or circuit breaker.
Recommended:
■ A time-delay fuse or time-delay circuit breaker.
■ A separate circuit serving only this microwave oven.
INSTALLATION INSTRUCTIONS

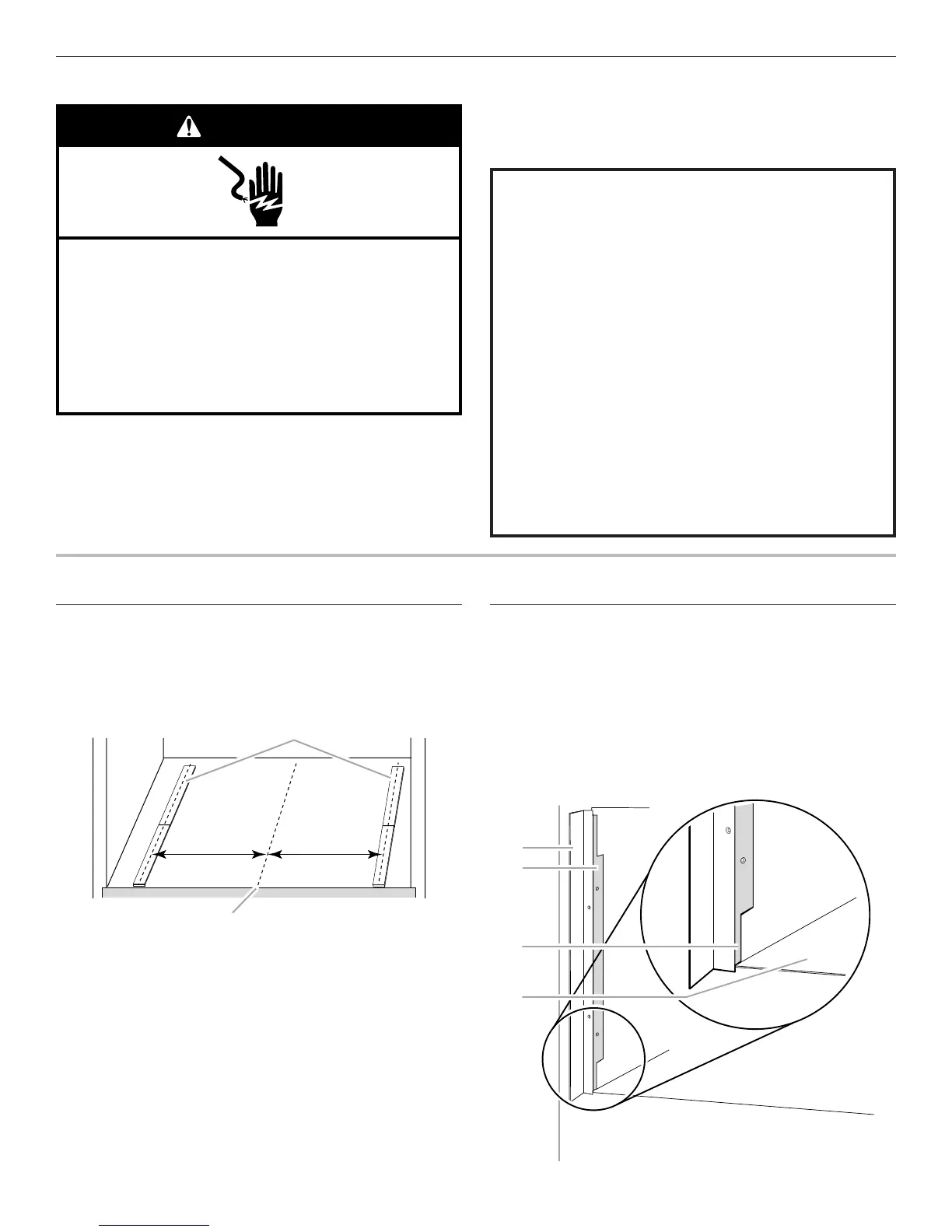

Install Spacer Strips
The provided self-adhesive spacer strips must be installed on
the cutout floor, as shown below. They are to be installed under
the feet of the microwave oven. This raises the microwave oven
1
/
8
" (3 mm) to ensure enough clearance for the door to open fully,
without obstruction from an installed lower appliance.
To Install Spacer Strips:
1. Mark centerline on floor of cutout opening.
2. Measure and mark 10
3
/
8
" (26.4 cm) out on either side of
centerline.
3. Remove adhesive backing from each strip.
4. Place one spacer strip flush with the front edge of the cutout
opening. Make sure it is centered at 10
3
/
8
" (26.4 cm) out from
centerline, as shown.
5. Place second spacer strip directly behind the first spacer strip.
6. Repeat on other side.
Install the Microwave Oven (24" [61.0 cm]
Installation Only)
For 24" (61.0 cm) installation, the mounting brackets must be
attached to the 2 side edges of the cutout opening.
To Attach Mounting Brackets:
1. Hold the bracket firmly against the side rim of the opening,
as shown.
The tiered edge of the bracket should be flat against the
inside wall of the opening. The small tier should rest against
the floor of the cutout opening.
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
WARNING
GROUNDING INSTRUCTIONS
SAVE THESE INSTRUCTIONS
■
For all cord connected appliances:
The microwave oven must be grounded. In the event of
an electrical short circuit, grounding reduces the risk of
electric shock by providing an escape wire for the electric
current. The microwave oven is equipped with a cord
having a grounding wire with a grounding plug. The plug
must be plugged into an outlet that is properly installed
and grounded.
WARNING: Improper use of the grounding plug can
result in a risk of electric shock. Consult a qualified
electrician or serviceman if the grounding instructions are
not completely understood, or if doubt exists as to whether
the microwave oven is properly grounded.
Do not use an extension cord. If the power supply cord is
too short, have a qualified electrician or serviceman install
an outlet near the microwave oven.
A
10³⁄₈" (26.4 cm) 10³⁄₈" (26.4 cm)
B
A. Spacer strips in place
B. Centerline
A
B
C
D
A. Mounting bracket
B. Tiered edge (shaded)
C. Small tier
D. Cutout floor
