9. Using 7/64" (3 mm) drill, drill pilot holes into the cabinet
through the screw holes in the side brackets.
10. Install two 1
1
/
2
" (3.81 cm) square/Phillips screws in the pilot
holes to secure the microwave oven in place.
NOTE: To ensure proper side trim panel fitting, do not
overtighten screws.
11. Open microwave oven door.
12. Position the tabular portion of the side trim panel behind the
door facing frame, then firmly push the outside edge of the
trim behind the side bracket, as shown.

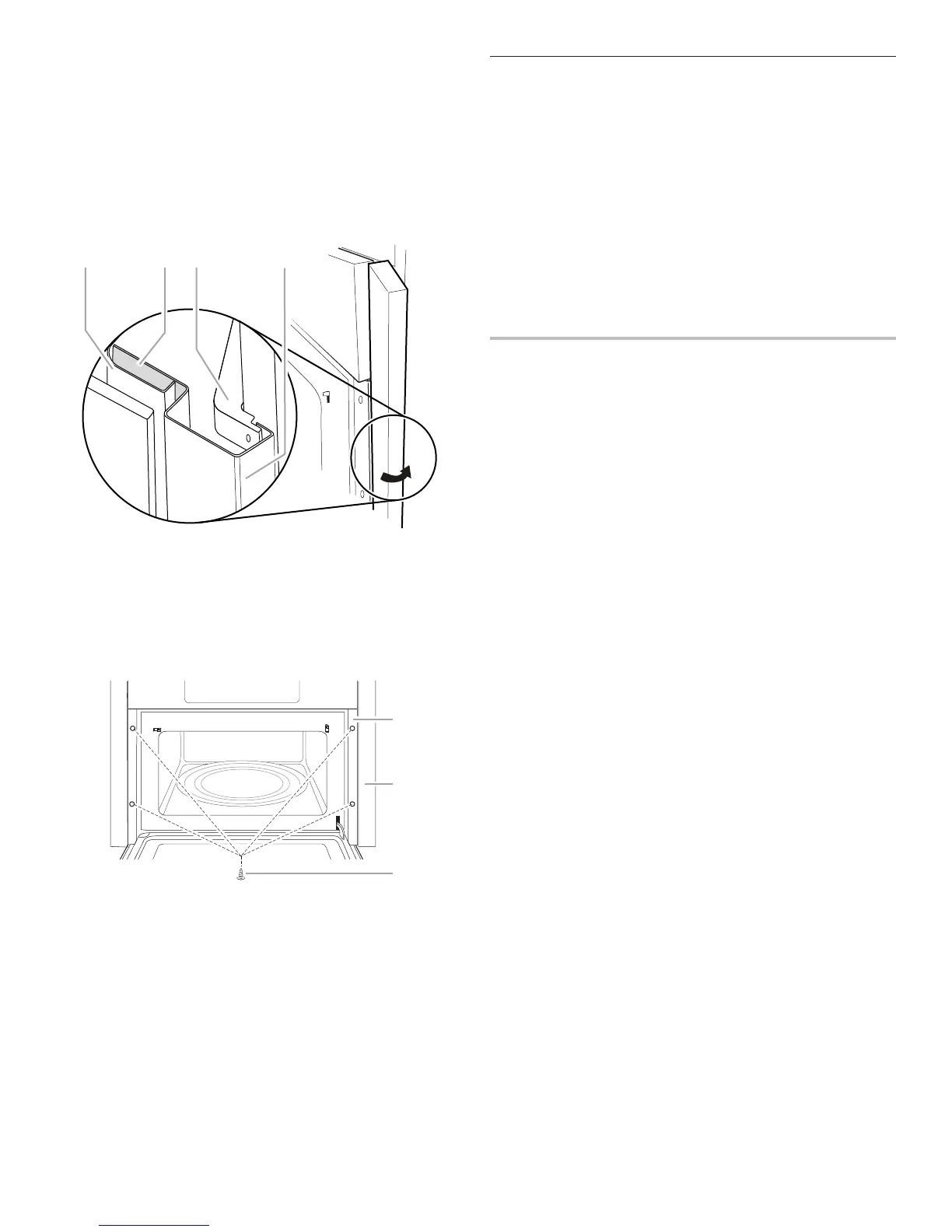

Exploded View of Panel Placement
13. Attach the side trim panel to the door facing frame using two
1" (2.54 cm) T10 screws.
14. Repeat steps 12 and 13 on other side.
Complete Installation
1. Install the turntable in the microwave oven.
2. Check the operation of microwave oven by placing 1 cup or
8 oz (250 mL) of water on the turntable and programming
cook time of 1 minute at 100% power.
3. If the microwave oven does not operate:
■ Check that a household fuse has not blown, or a circuit
breaker tripped. Replace the fuse or reset the circuit breaker.
If the problem continues, call an electrician.
■ Check that the power supply cord is plugged into a
grounded 3 prong outlet.
■ See the Use and Care Guide for troubleshooting information.
Installation is now complete.
Save these Installation Instructions for future use.
ASSISTANCE
Please reference the “Warranty” section of the Use and Care
Guide.
D
A. Door facing frame
B. Tabular portion (shaded)
of side trim panel
C. Side bracket
D. Side trim panel in place
A
B
A. Door facing frame
B. Trim panel
C. 1" (2.54 cm) T10 screws (4)
