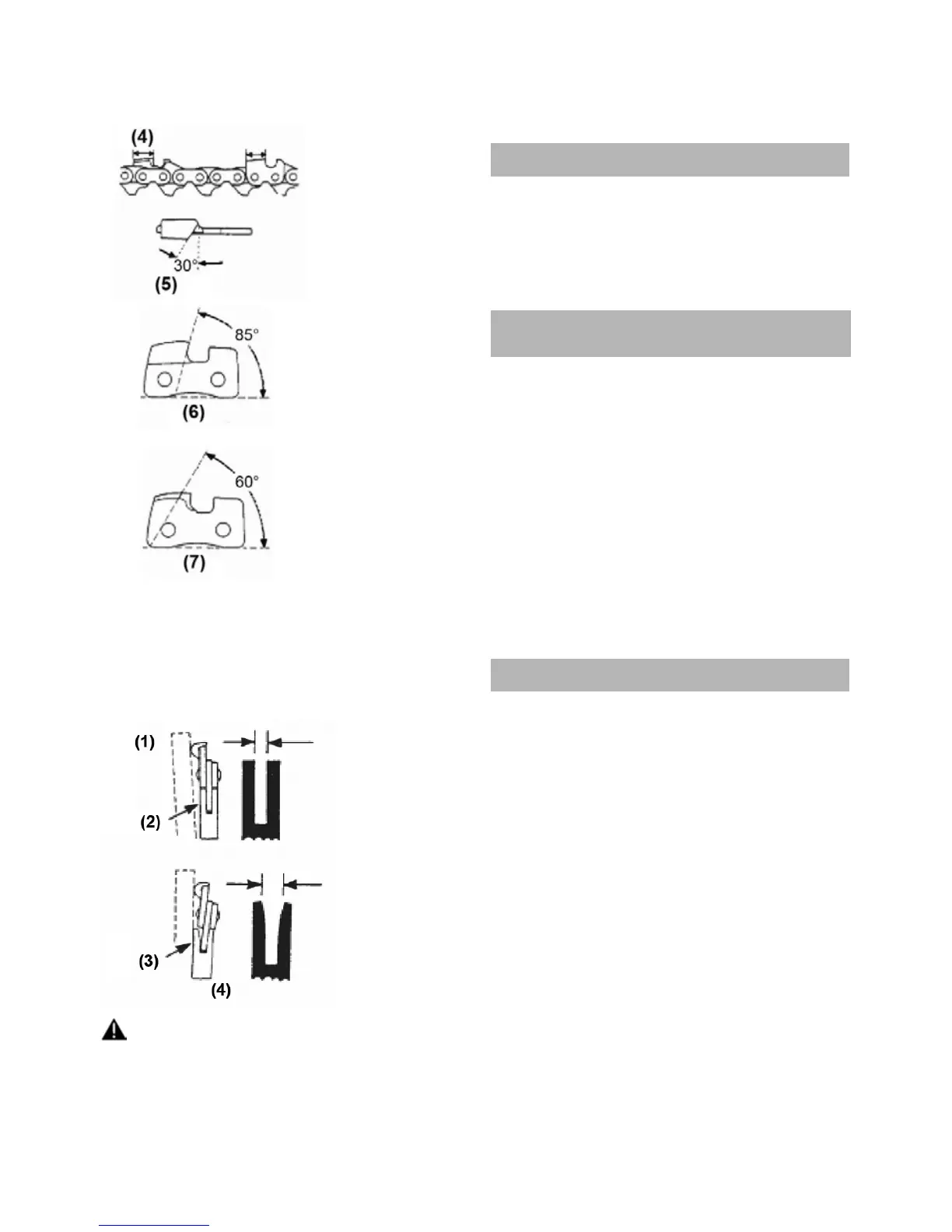

Make sure every cutter has the same length and edge
angles as shown below.
4) Cutting length
5) Filling angle
6) Side plate angle
7) Top plate cutting
angle
Guide bar
• Reverse the bar occasionally to prevent partial wear.
• The bar rail should always be a square. Check for
wear of the bar rail. Apply a ruler to the bar and the
outside of a cutter. If a gap is observed between them,
the rail is normal. Otherwise, the bar rail is worn. Such
a bar needs to be corrected or replaced.
1) Ruler
2) Gap
3) No gap
4) Chain tilts
WARNING
This saw is equipped with the following low kickback bar/
chain combination:
Guide bar:
IPCS 46 - Oregon 180SDEA095
Saw chain:
IPCS 46: Oregon 91P061X
For replacement use only above bars and chains.
If you use non-approved combinations it may cause se-
rious personal injury and damage to the machine.
11. Storage
1. Empty the fuel tank and run the engine out of fuel.
2. Empty the oil tank.
3. Clean the entire unit.
4. Store the unit in a dry place out of the reach of
children.
12. Waste disposal and environmental
protection
Never pour remainders of chain lubricant or 2-stroke fuel
mixture in the drain or sewerage system or soil, but dispose
of it in a proper, environmentally friendly way, e.g., at a
special collecting point or dump.
If your device should become useless somewhere in the
future or you do not need it any longer, do not dispose
of the device together with your domestic refuse, but
dispose of it in an environmentally friendly manner.
Thoroughly empty the oil/lubricant and fuel tanks and
dispose of the remainders at a special collecting point
or dump. Please also dispose of the device itself at an
according collecting/recycling point. By doing so, plastic
and metal parts can be separated and recycled. Informa-
tion concerning the disposal of materials and devices are
available from your local administration.
13. Warrenty
For this petrol tool, the company provides the end user
- independently from the retailer‘s obligations resulting
from the purchasing contract - with the following war-
ranties:
The warranty period is 24 months beginning from the
hand-over of the device which has to be proved by
the original purchasing document. For commercial use
and use for rent, the warranty period is reduced to 12
months. Wearing parts and defects caused by the use
of not tting accessories, repair with parts that are no
original parts of the manufacturer, use of force, strokes
and breaking as well as mischievous overloading of the
motor are excluded from this warranty. Warranty replace-
ment does only include defective parts, not complete
devices. Warranty repair shall exclusively be carried
out by authorized service partners or by the company‘s
customer service. In the case of any intervention of not
authorized personnel, the warranty will be held void.
All postage or delivery costs as well as any other subse-
quent expenses will be borne by the customer.
