Illuminati Instrument Corp. IM100 User Manual – Android, v1.41 P a g e | 2 3
Scientific Mode
The Illuminati Meter app will also display useful
color information and light intensity, and will
also plot the light source being measured in
CHROMATICITY Tab

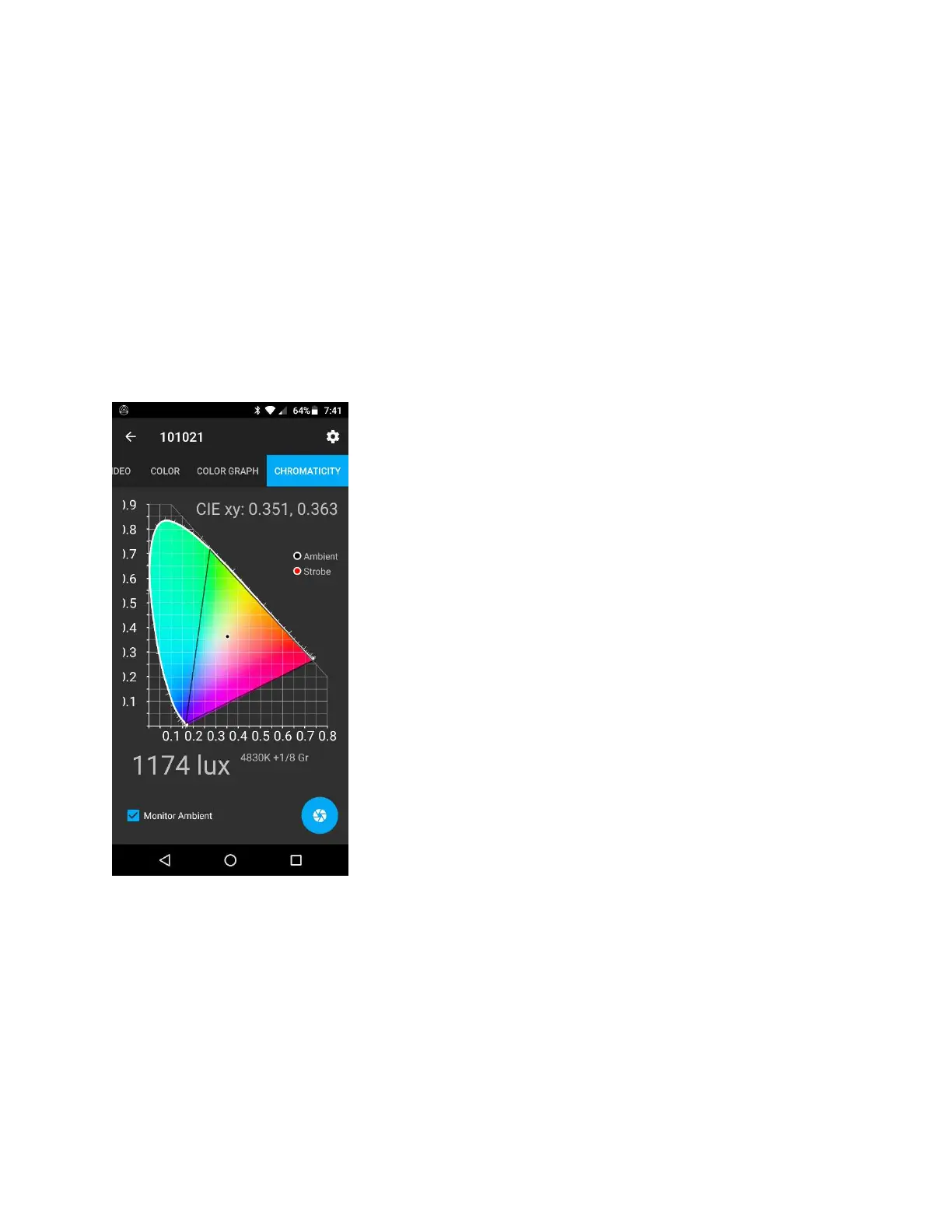

In the CHROMATICITY tab you will see a
traditional CIE x,y chromaticity diagram with the
light source plotted in x,y space. The CIE x,y
coordinates are given to 3 decimal places.
At the bottom of the screen is the illuminance
in lux (you can also choose to display foot-
candles), and the color temperature and
green/magenta shift of the light source.
