SPECIFICATIONS / COMPONENT IDENTIFICATION
2-6
2. Dryer Model DE30, 50, 75 lb. Dryer Rear View
No. Description
1. Blower & Basket motor (1 Ph)
2. Blower motor (3 Ph)
3. Basket motor (3 Ph)
4. Heating element (Electric, Gas, Steam
5. Electrical box
6. Cover, Top
7. Back guard upper
8. Back guard lower
9. Exhaust duct outlet

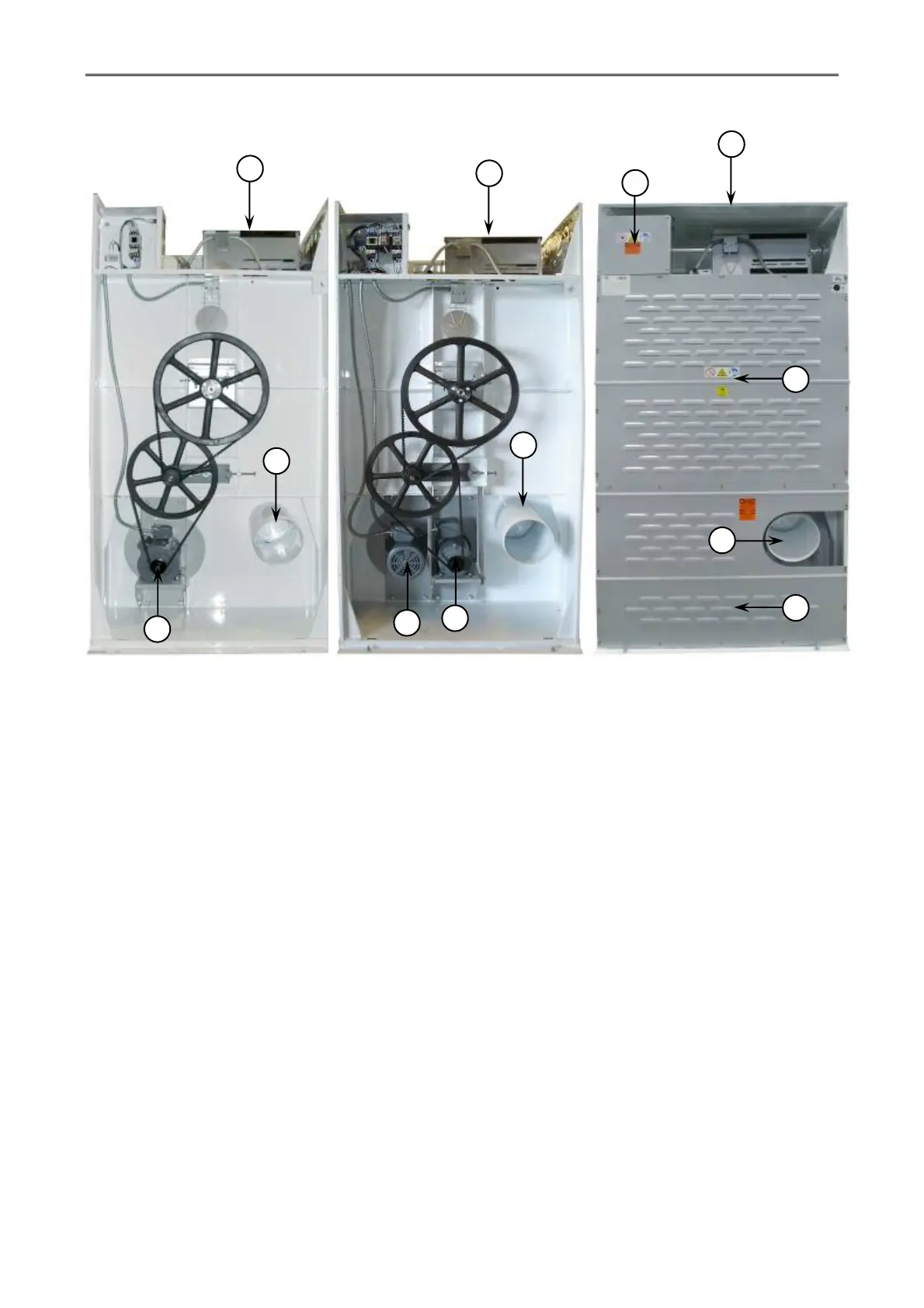

Figure.2-5 Dryer Model DE30, 50, 75 lb. Rear View
7
9
6
8
9
9
2
3
5
1
4
4
