INSTALLATION PROCEDURES
3-13

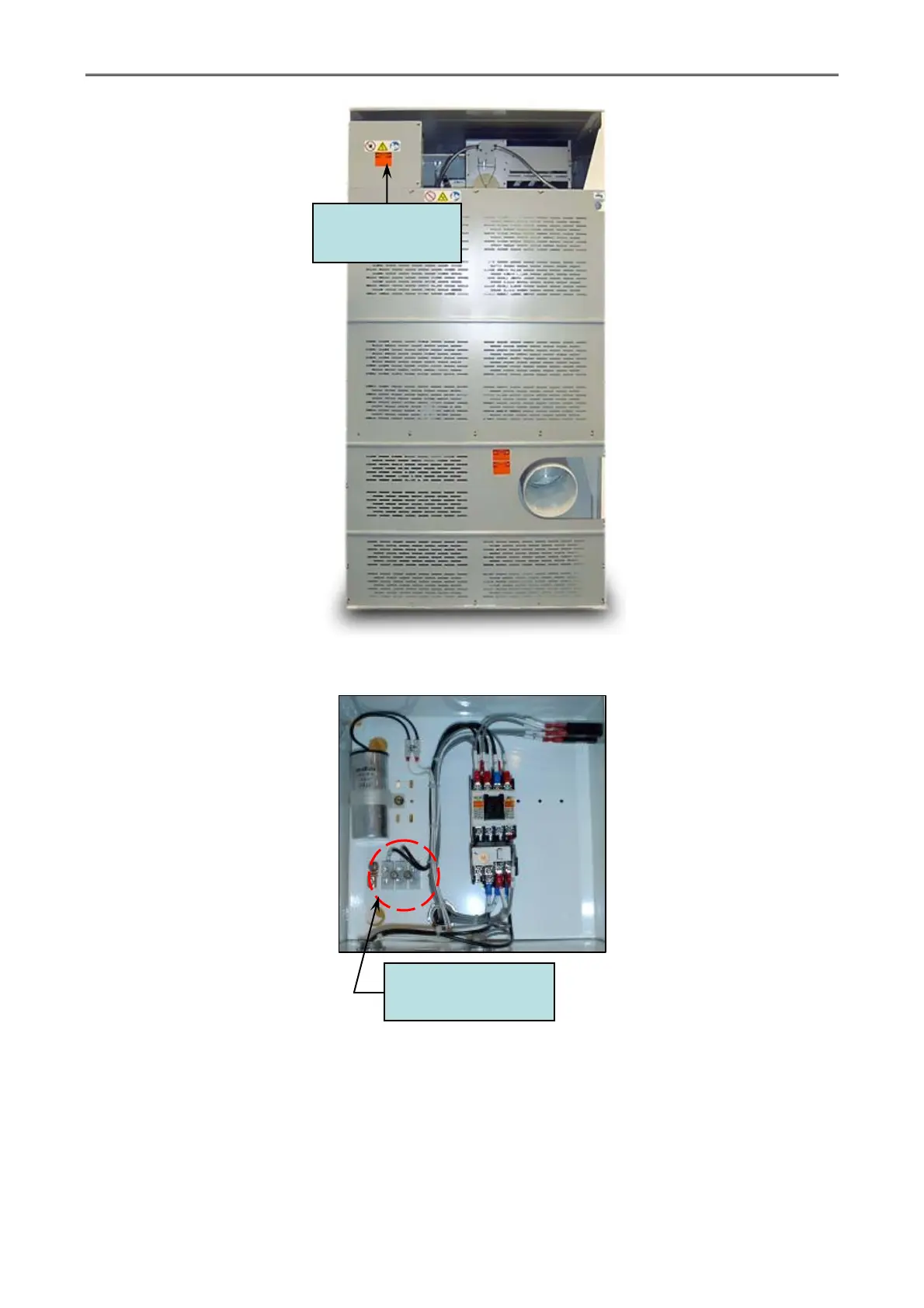

Figure.3-10 Electric service box cover position.
Figure.3-11 Electric power connector for gas and steam type
If local codes permit, power to the dryer can be made by the use of a flexible U.L. listed
power cord / pigtail (wire size must conform to rating of dryer), or the dryer can be hard wired
directly to the service breaker panel. In both cases, a strain relief must be installed where the wiring
enters the dryer
Electric service
box cover
Power connector
(R, S or R, N)
