INSTALLATION PROCEDURES
3-15

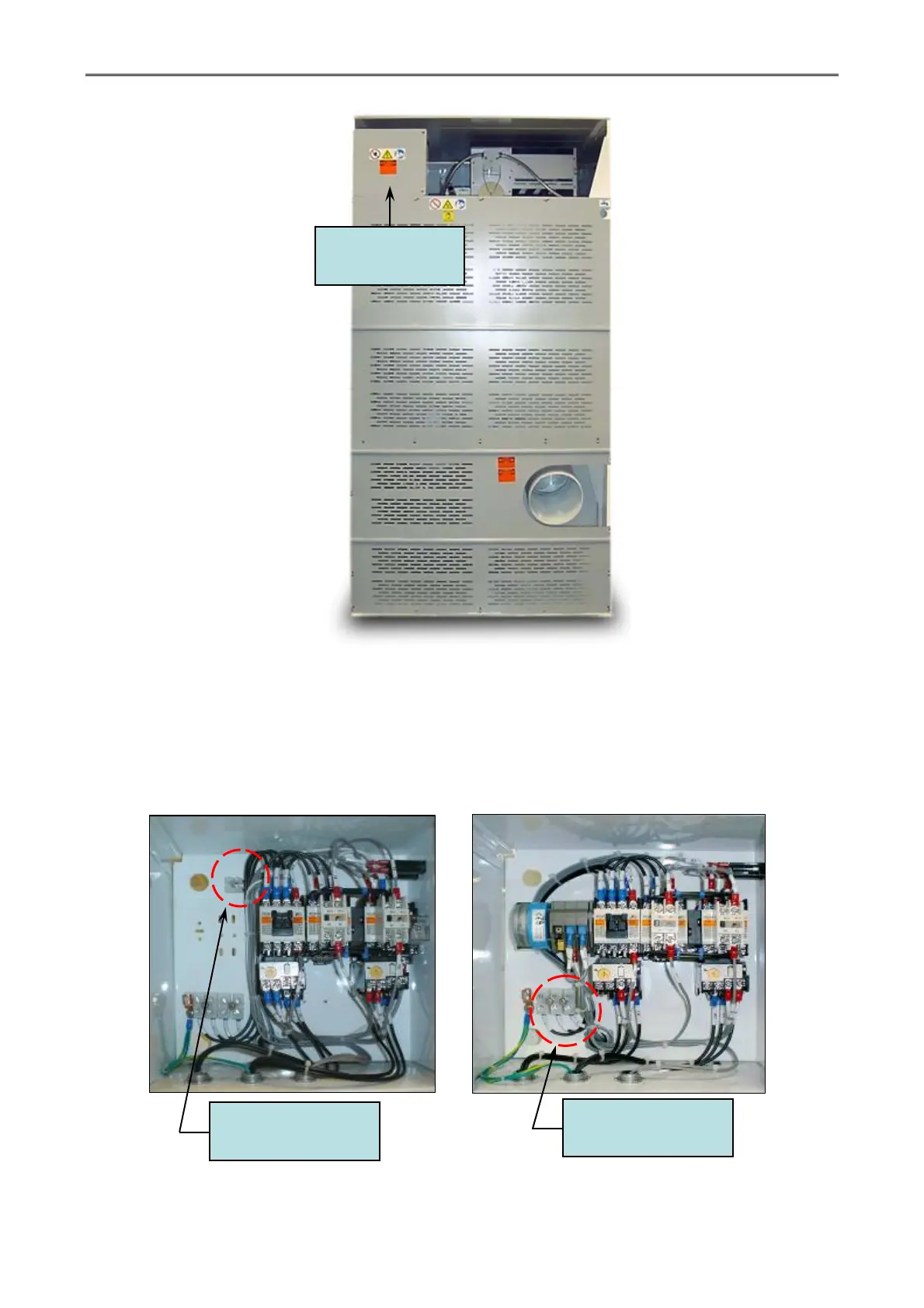

Figure.3-13 Electric service box cover position.
Providing local codes permit, power to the dryer can be made by the use of a flexible U.L.
listed cord / pigtail (wire size must conform to the rating of the dryer), or the dryer can be hard
wired directly to the service breaker. In all cases, a strain relief should be used both where the
wiring enters the dryer and the service box.
Figure.3-14 Electric power connector for gas and steam type
Electric service
box cover
Power connector
(R, S, T)
Control Steam
Valve Connector
