IMC CRONOS-PL - DSUB-15 Pin Configuration; Standard and Universal Connector

imc CRONOS-PL/-SL/compact - Getting Started, Version 5 R 7 - 2018-06-28© 2018 imc Meßsysteme GmbH

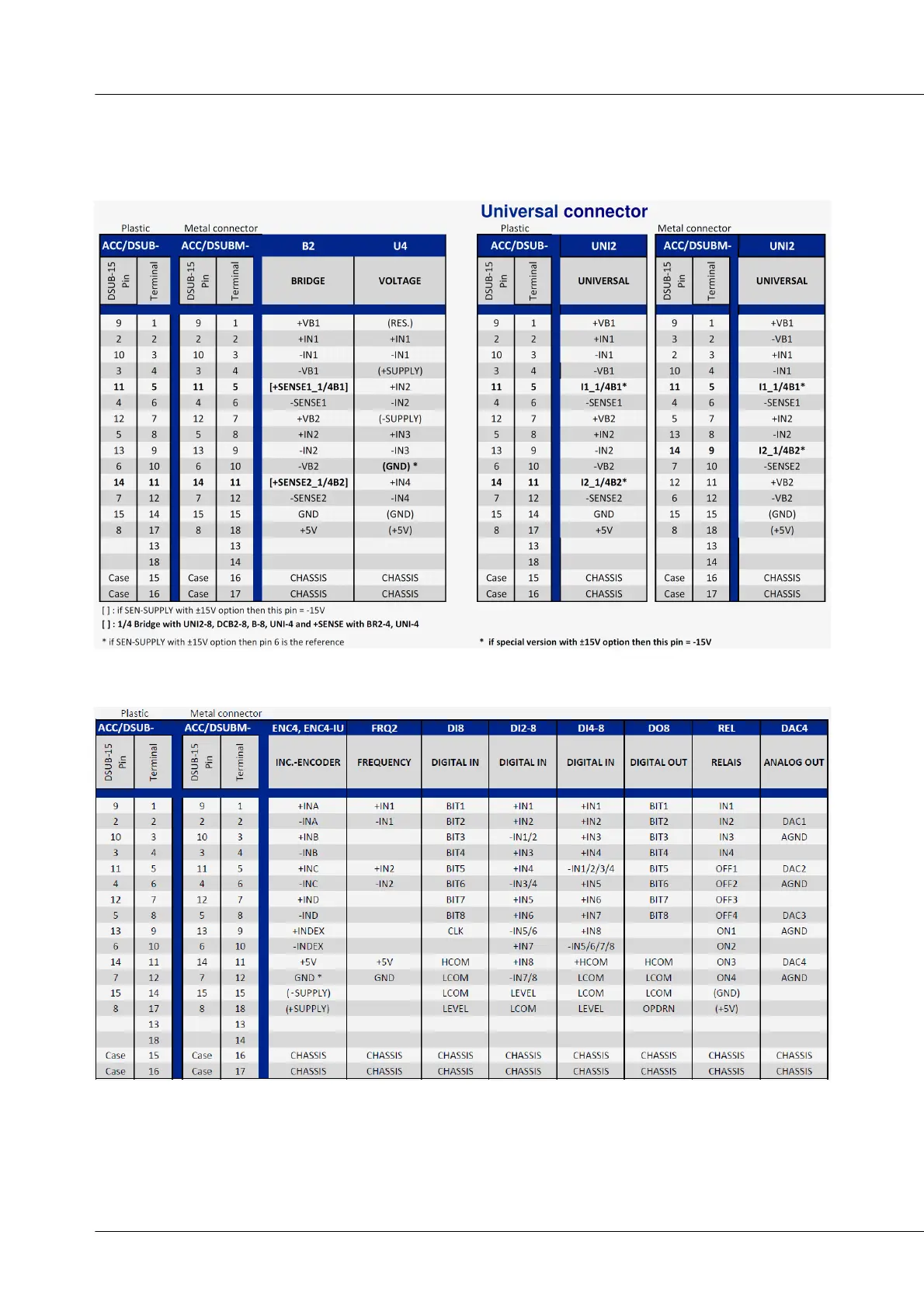

DSUB-15 pin configuration 35
4.4 DSUB-15 pin configuration
4.4.1 Standard and Universal connector
(+5 V): Note concerning ACC/DSUB(M)-U4 connector: +5 V (DSUB pin 8) for C-8, OSC-16 not available
*: if SEN-SUPPLY with ±15 V option then pin 7 is the reference
with HRENC-4: INDEX only on CON1
with ENC-4: INDEX only on CON2
