IMC CRONOS-PL - DSUB-26 Pin Configuration (High Density)

imc CRONOS-PL/-SL/compact - Getting Started, Version 5 R 7 - 2018-06-28© 2018 imc Meßsysteme GmbH
40 Pin configuration

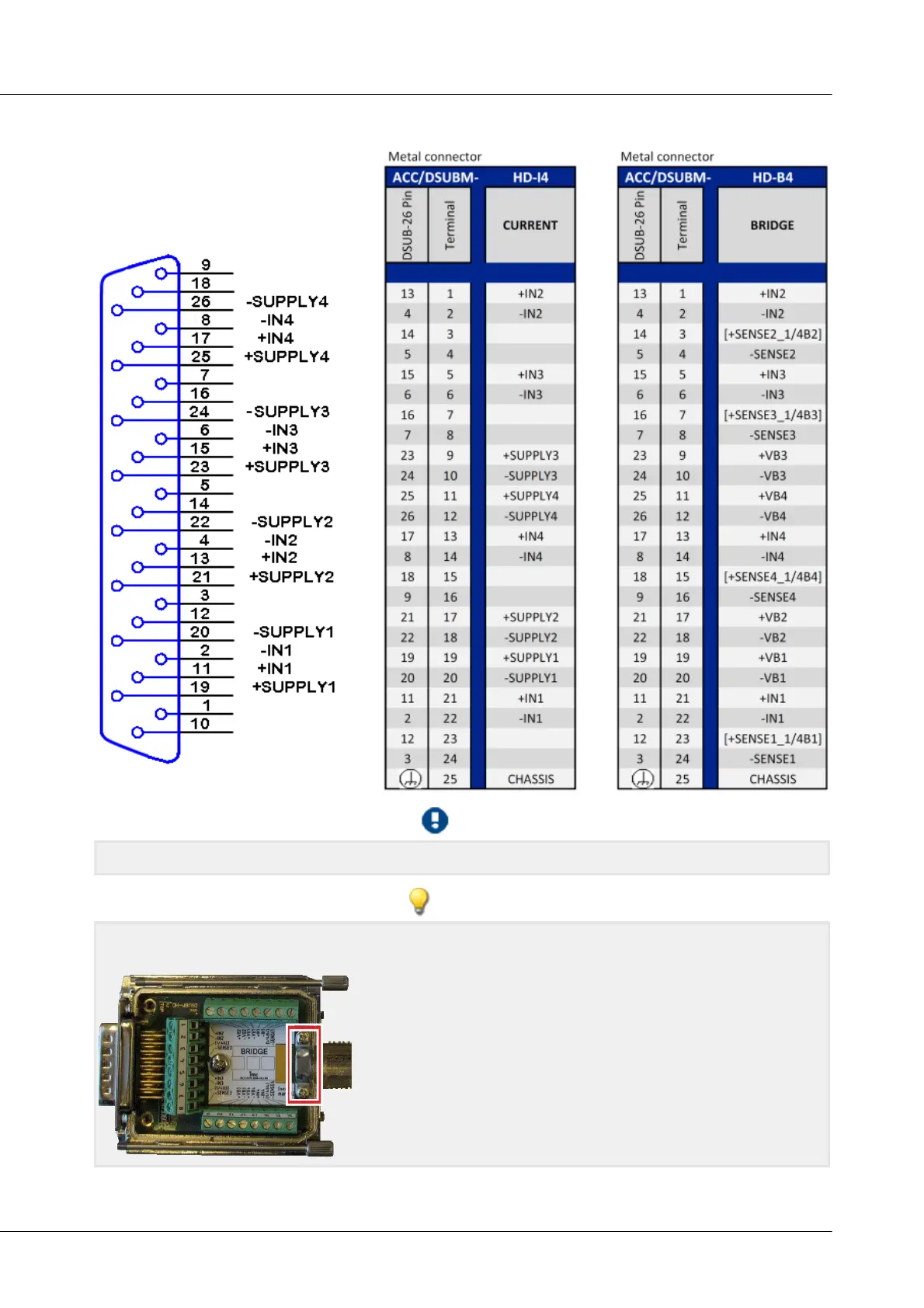

4.6 DSUB-26 pin configuration (high density)
Note
Please use the screw for a contact with Chassis.
Example
The following picture shows the ACC/DSUBM-HD-B4 connector. To contact with Chassis please use
marked screw displayed in the picture.
