IMCA Mini RadaScan - 6 Installation; Sensor Wiring Diagram; Sensor Placement

6 IMCA M 229
6 Installation
6.1 Sensor Wiring Diagram

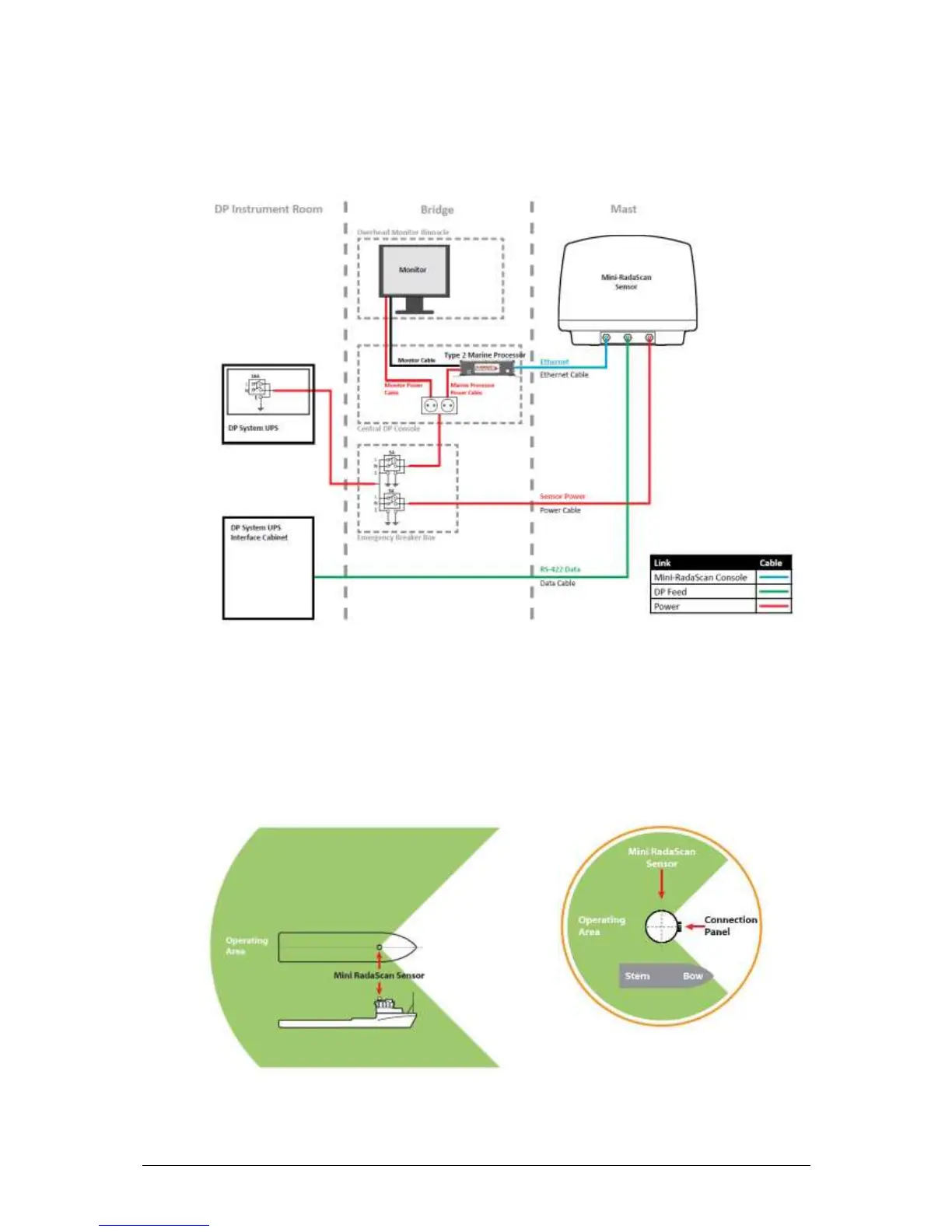

The Mini RadaScan installation cable routing is shown in Figure 2.
Figure 2 – Mini RadaScan components cable routing
6.2 Sensor Placement
Sensor placement varies with each application therefore the information hereafter is provided as a
general guideline.
On a platform supply vessel (PSV), the typical mounting position for the sensor is above the wheelhouse,
with a clear view over the aft deck area or whichever operating area is required.
Figure 3 – Typical sensor mounting position covering deck area
