4 IMCA M 229
4 Components
A Mini RadaScan system consists of three main components:
a sensor unit for the detection and processing of reflections;
a responder(s) unit, which reflects the signal from the sensor;
a marine computer used to configure and control the sensor using the dashboard software.
System components are shown in Figure 1.

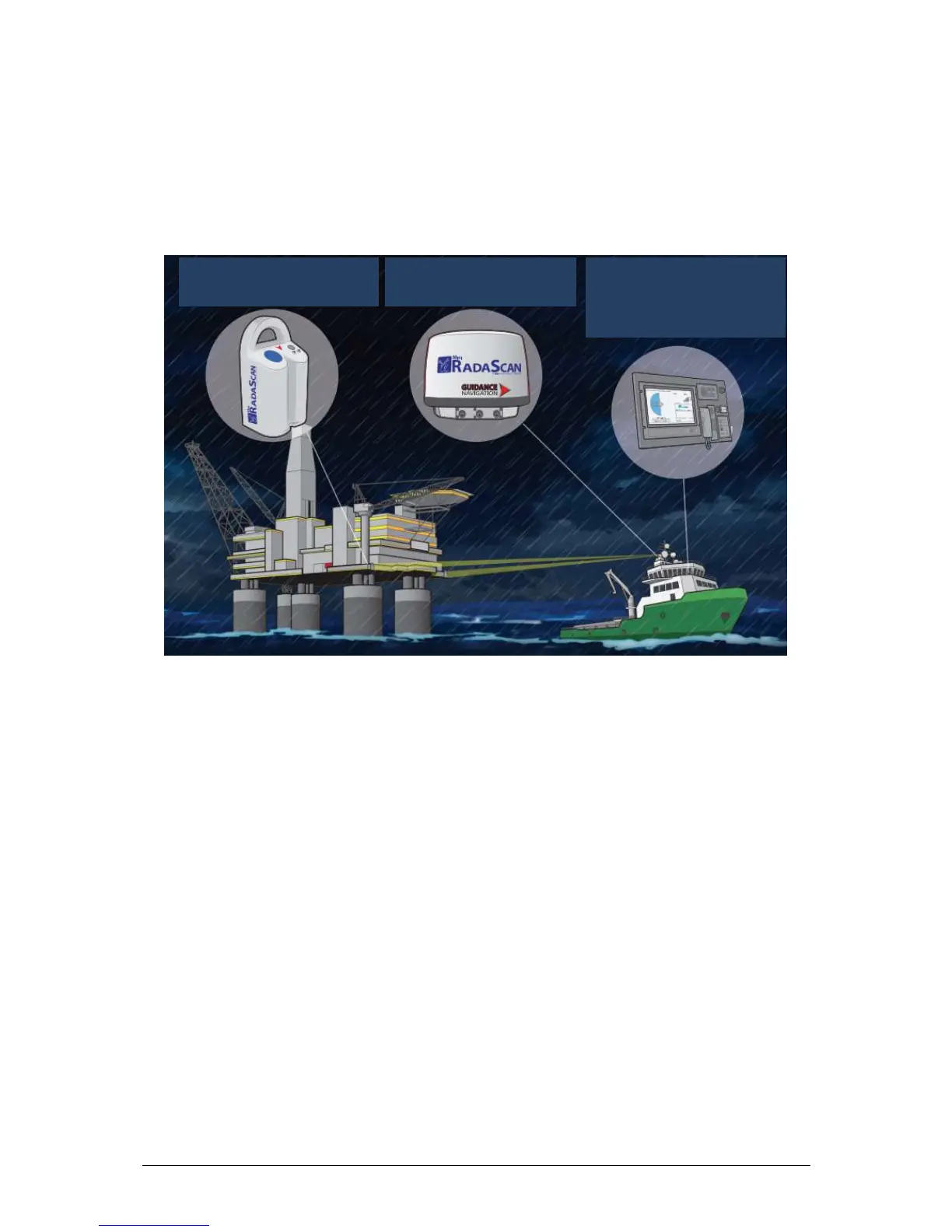

Figure 1 – Mini RadaScan system components
Mini RadaScan Responders (one
or more) that are mounted on the
fixed platform or mobile object
Mini RadaScan Sensor that is
installed on a vessel equipped with
a DP system
Mini RadaScan Console software
is used by the DP operator to
control the Mini RadaScan Sensor. It
runs on a marine computer installed
on the vessel’s bridge
