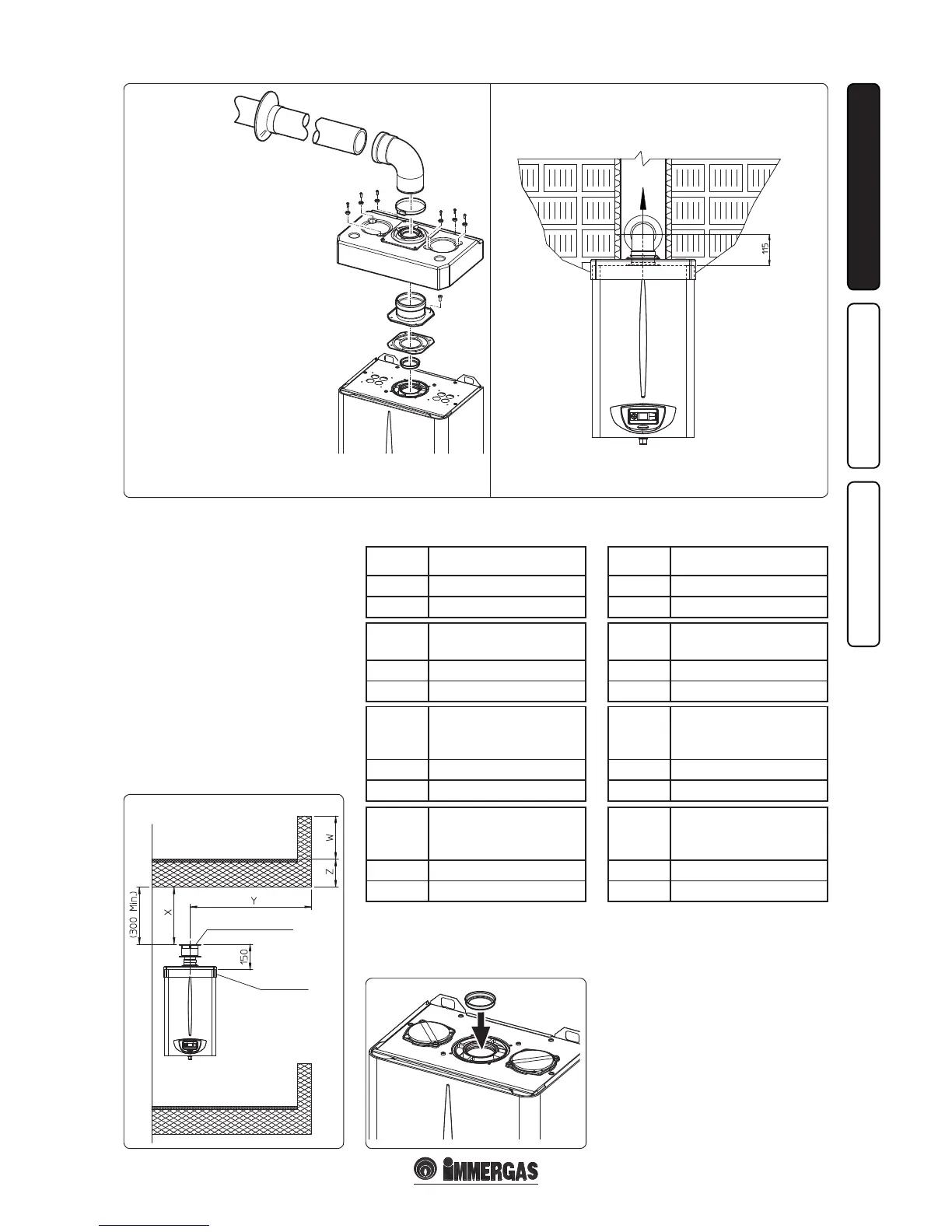

Immergas CAESAR 14 3 E - Page 7

1-7
1-8
B22 B22
B22
1-6
1-9
7 - IE
INSTALLATORUSERTECHNICIAN
e terminal kit includes:
N° 1 - Gasket
N° 1 - Exhaust ange Ø 80
N° 1 - Bend 90° Ø 80
N° 1 - Exhaust pipe Ø 80
N° 1 - Wall sealing plate
e cover kit includes:
N° 1 - Heat moulded cover
N° 1 - Ø 44 discharge diaphragm
N°1 - Gasket clamping plate
N° 1 - Gasket
* e values for maximum length are considered
with 1 metre of exhaust pipe and the remaining
on intake.
* e values for maximum length are considered
with 1 metre of exhaust pipe and the remaining
on intake.
Diaphragm
Extension in meters
pipe Ø 60/100 horizontal
Ø 46 From 0 to 1
NONE Exceeding 1
Diaphragm
Extension in meters
pipe Ø 60/100 horizontal
Ø 45 From 0 to 1
NONE Exceeding 1
Diaphragm
Pipe extension in metres Ø
60/100 vertical
Ø 46 From 0 to 2.2
NONE Exceeding 2.2
Diaphragm
Pipe extension in metres Ø
60/100 vertical
Ø 45 From 0 to 2.7
NONE Exceeding 2.7
Diaphragm
*Extension in metres
vertical pipe Ø 80
without bends
Ø 46 From 0 to 22
NONE Exceeding 22
Diaphragm
*Extension in metres
vertical pipe Ø 80
without bends
Ø 45 From 0 to 25
NONE Exceeding 25
Diaphragm
*Extension in meters
horizontal pipe Ø 80 with
two bends
Ø 46 From 0 to 17
NONE Exceeding 17
Diaphragm
*Extension in meters
horizontal pipe Ø 80 with
two bends
Ø 45 From 0 to 20
NONE Exceeding 20
Caesar 14 3 E discharge diaphragm. Caesar 17 3 E Super discharge diaphragm.
INTAKE
COVER KIT
VERTICAL TERMINAL KIT
FOR DIRECT DRAINING
