1.7 INDOOR INSTALLATION.
• Type C conguration, sealed chamber and
fan assisted.

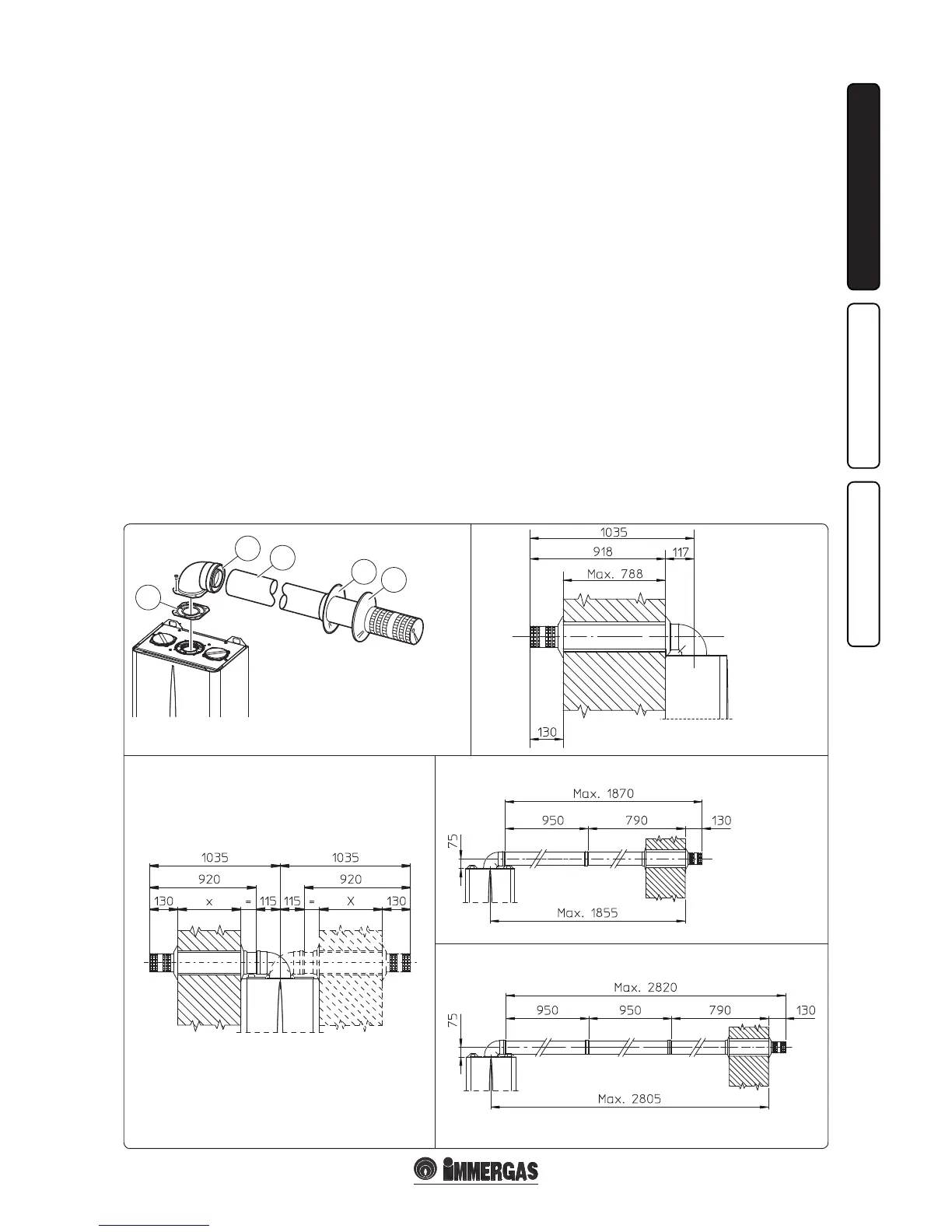

Horizontal intake - exhaust kit Ø60/100. Kit
assembly (Fig. 1-10): install the bend with ange
(2) onto the central hole of the water heater
inserting the gasket (1) and tighten using the
screws in the kit. Couple the terminal pipe (3)
with the male end (smooth) into the female
end of the bend (with lip seals) up to the stop;
making sure that the internal wall sealing plate
and external wall sealing plate have been tted,
this will ensure sealing and joining of the elements
making up the kit.
Note: when the water heater is installed in areas
where very rigid temperatures can be reached,
a special anti-freeze kit is available that can be
installed as an alternative to the standard kit.
• Coupling extension pipes and concentric elbows
Ø 60/100. To snap-t extensions with other
elements of the ue gas extraction elements,
operate as follows Install the concentric pipe
or elbow with the male side (smooth) on the
female section (with lip seal) to the end stop on
the previously installed element. is will ensure
the sealing and joining of the elements correctly.
e Ø 60/100 horizontal intake/exhaust kit can
be installed with the rear, right side, le side and
front outlet.
• Application with rear outlet (Fig. 1-11). e 788
mm pipe length enables routing through a wall
with maximum thickness of 788 mm. Normally
the terminal must be shortened. Calculate the
distance by adding the following values: Part
thickness + internal projection + external
projection. The minimum indispensable
projection values are given in the gure.
• Application with lateral output (Fig. 1-12); Only
using the horizontal intake-exhaust kit, without
the relevant extensions, permits to pass through
a wall with thickness of 715.5 mm with the
Caesar 14 3 E and of 705 mm with the Super
Caesar 17 3 E (height “X”), both with le and
right lateral output.
• Extensions for horizontal kit. e horizontal
intake-exhaust kit Ø 60/100 can be extended
up to a max. horizontal distance of 3000
mm including the terminal with grid and
excluding the concentric bend leaving the
water heater. is conguration corresponds
to a resistance factor of 100. In these cases the
special extensions must be requested.
Connection with N°1 extension (Fig. 1-13).
Max. distance between vertical water heater axis
and external wall is 1855mm.
Connection with N°2 extensions (Fig. 1-14).
Max. distance between vertical water heater axis
and external wall is 2805mm.
e kit includes:
N°1 - Gasket (1)
N°1 - Concentric bend 90° (2)
N°1 - Intake/exhaust concentric pipe
Ø60/100 (3)
N°1 - Internal white wall sealing plate (4)
N°1 - External grey wall sealing plate (5)
• External grill. N.B.: for safety purposes, do
not even temporarily obstruct the water heater
intake-exhaust terminal.
