Technical documentation
Technical documentation
STEME ed 07/03
3
EOLO MINI

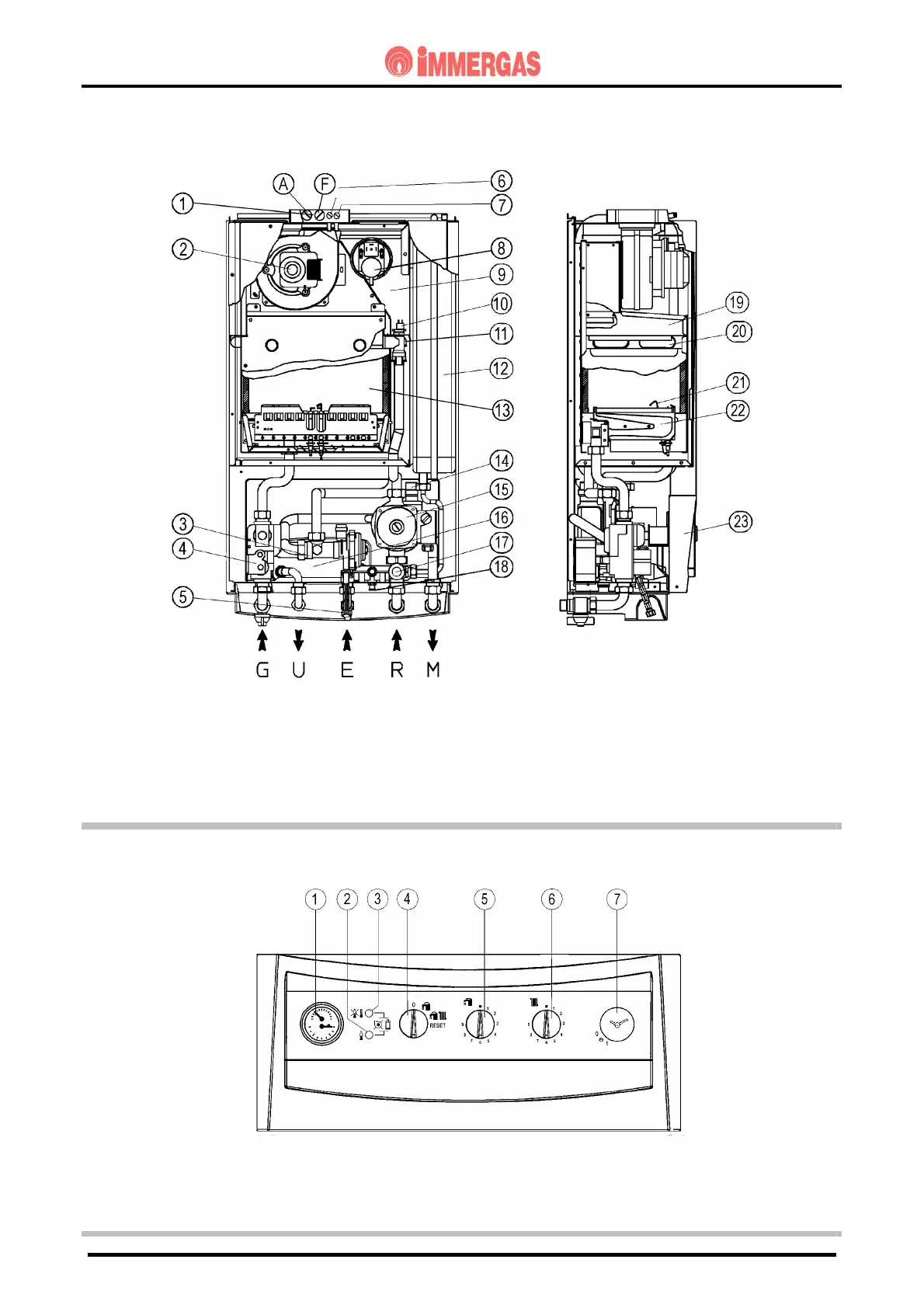

MAIN COMPONENT PARTS
(from serial number 2238341)
1 - Sampling points (A=air) (F=flue)
2 - Fan
3 - 3-way hydraulic valve
4 - Gas valve
5 - System filling valve
6 - Positive signal pressure point
7 - Negative signal pressure point
8 - Fan safety pressure switch
9 - Sealed room
10- Overheat safety thermostat (105°C)
11- Adjustment and limit NTC sensor
12- Expansion vessel
13- Combustion chamber
14- Automatic air vent valve
15- Circulating pump
16- D.h.w. exchanger
17- 3 bar safety valve
18- System drain valve
19- Flue hood
20- Primary heat exchanger
21- Ignition and detection electrodes
22- Burner
23- Control panel
CONTROL PANEL
1 - Boiler thermo-pressure gauge
2 - Flame presence yellow indicator lamp
3 - Boiler block led indicator lamp
4 - 0/SUMMER/WINTER/RESET switch
5 - D.h.w. temperature selector
6 - Central heating temperature selector
7 - Programmer clock hole plate
