EOLO SUPERIOR PLUS

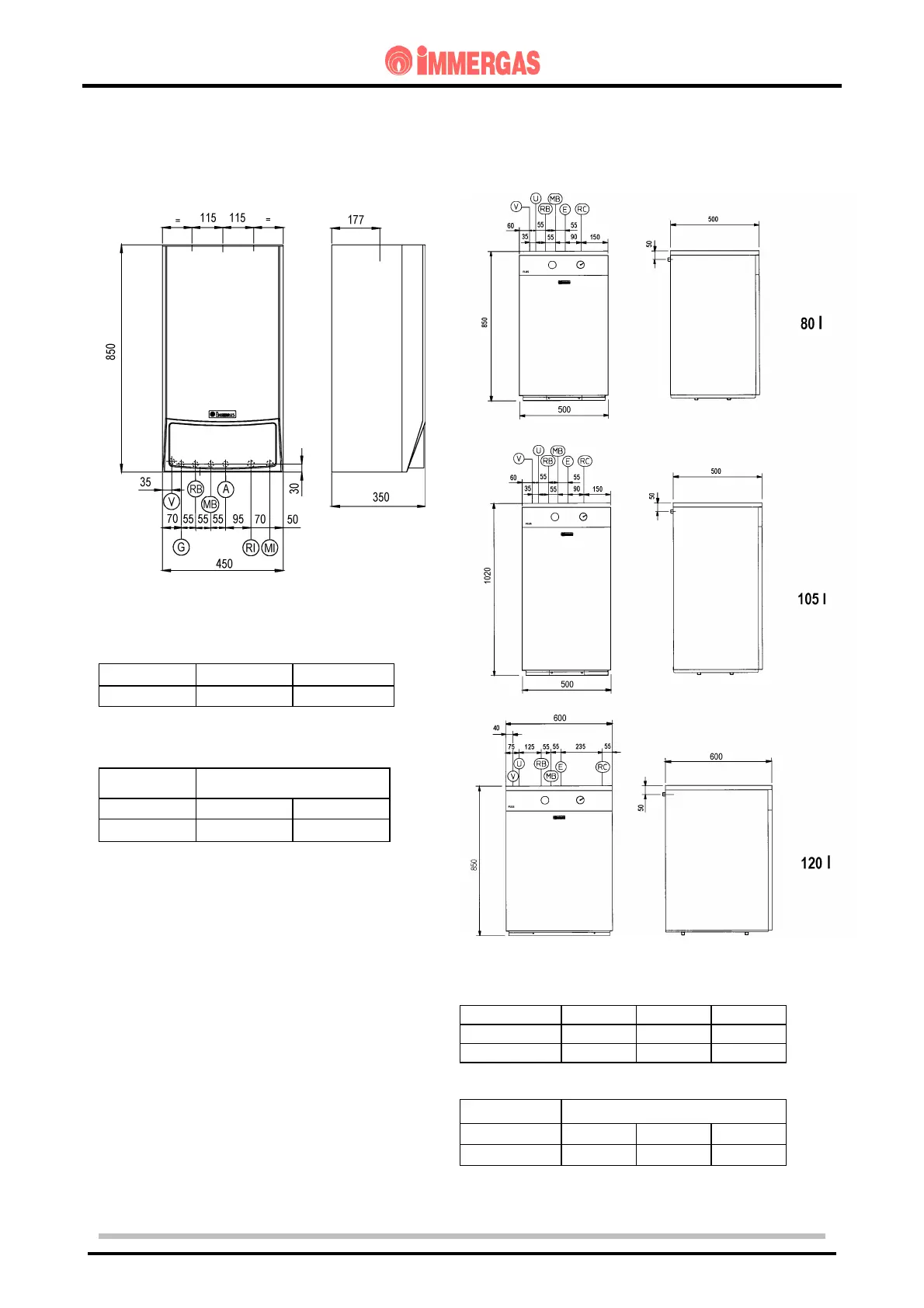

MAIN DIMENSIONS AND CONNECTIONS
BOILER
DIMENSIONS (mm)
HEIGHT WIDTH DEPTH
850 450 350
CONNECTIONS
GAS SYSTEM
G RB-MB RI-MI
1/2 “ 3/4 “ 3/4 “
V - power connection
G - gas supply
RB - boiler return
MB - boiler flow
A - system filling
RI - system return
MI - system flow
STORAGE TANK UNIT
DIMENSIONS (mm)
80 l 105 l 120 l
HEIGHT
850 1020 850
WIDTH
500 500 600
DEPTH
500 500 600
CONNECTIONS
SYSTEM DOMESTIC HOT WATER
RB-MB E U RC
3/4 “ 1/2 “ 1/2 “ 1/2 “
V - power supply
U - d.h.w. outlet
RB - boiler return
MB - boiler flow
E - d.h.w. inlet
RC - recirculation (optional)
