EOLO SUPERIOR PLUS

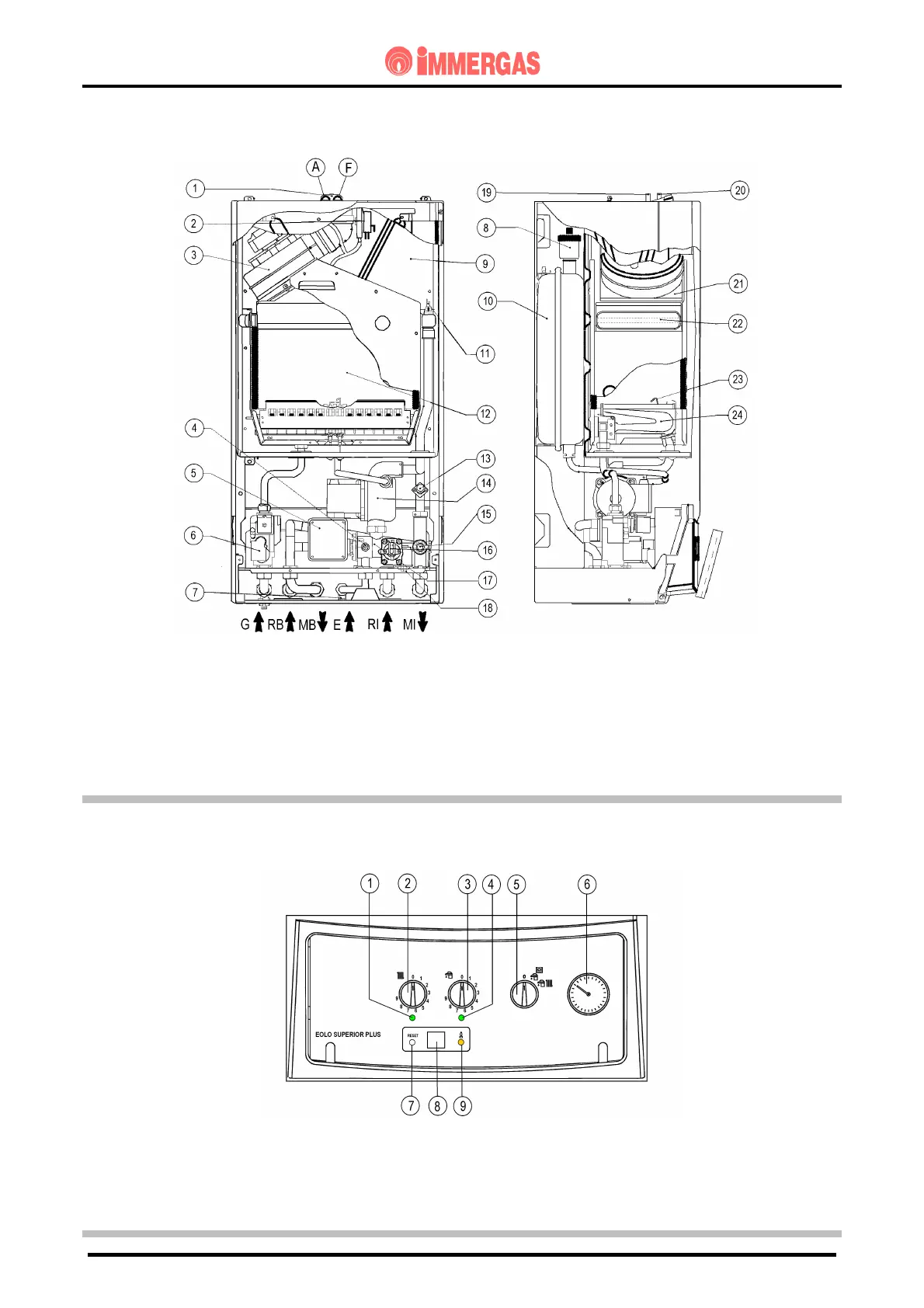

EOLO Superior PLUS MAIN COMPONENTS
1 - Intake points (A=air) (F=fumes)
2 - Flue safety pressure switch
3 - Fan
4– System drain valve
5 - Gearmotor for 3-way valve
6 - Gas valve
7 - System filling valve
8 - Automatic air vent
9 - Sealed chamber
10 - Expansion vessel
11 - Adjustment and limit NTC probe
12 - Combustion chamber
13 - Overheat. safety thermostat
14 - Circulator
15- 3-bar safety valve
13- Pump pressure switch
17- 3-way valve
18- Adjustable automatic by-pass
19- Positive signal pressure point
20- Negative signal pressure point
21 - Draught diverter
22 - Primary exchanger
23 - Ignition and detection electrodes
24 - Burner
CONTROL PANEL
1 - Green heating operating indicator
2 - Heating temperature selector
3 - D.h.w. temperature selector
4 - Green d.h.w. operation indicator
5 - 0/SUMMER and CAR/WINTER switch
6 - Boiler pressure gauge
7 - Reset
8 - Temp./diagnostics display
9 - Burner operation indicator
