Immergas ERP - Page 23

IE
23
2
4
3
1
2
8
7
6
4
5
6
10
11
12
13
14
15
15
16
17
17
16
15
19
19
8
9
18
18
3
1
2
6
12
11
13
19
19
8
9
13
14
15
4
5
4
8
7
6
10
5
20
19
15
16
17
18
18
18
16
15
16
15
18
17

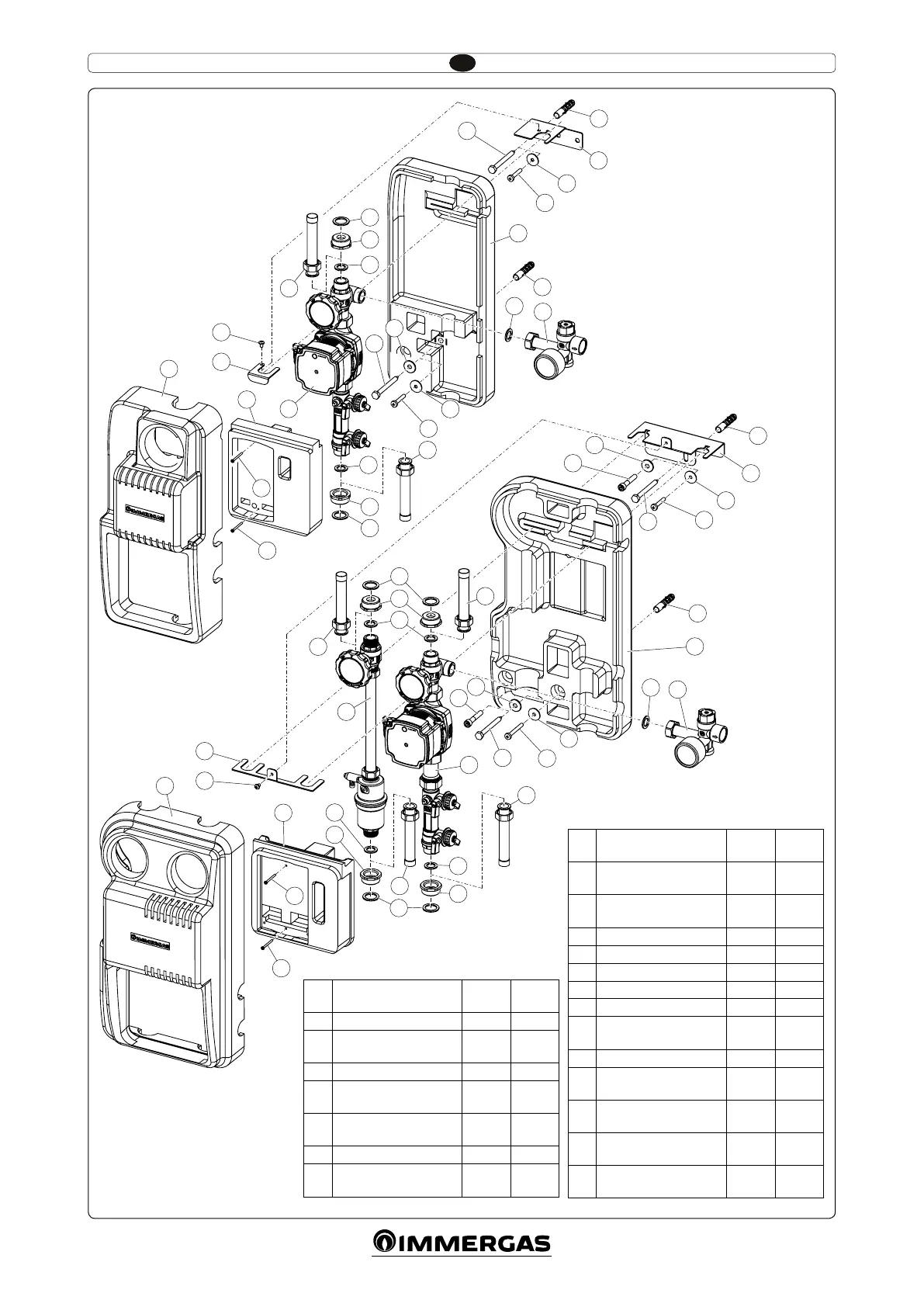

Ref. Description
Qty
Single
Qty
double
1 Upper insulation 1 1
2
Insulation for solar
control unit housing
1 1
3 Lower insulation 1 1
4
Hexagonal head screw
for wall installation
2 2
5
Flat washer
8.5 x 24 x 2
1 2
6 Plug 12 x 60 2 2
7
Inoxstor installation
screw M6 x 25
1 1
Ref. Description
Qty
Single
Qty
double
8
Flat washer
6.5 x 24 x 2
2 2
9
Inoxstor installation
screw M6 x 35
1 1
10 Support bracket 1 1
11 Fastening bracket 1 1
12 Screw M5 x 8 1 1
13 Circulation unit 1 1
14 Safety unit 1 1
15
Flat gasket
24 x 16 x 2
3 5
16 Reduction 3/4” F 1” M 2 4
17
Flat gasket
30 x 22 x 2.1
2 4
18
Copper bar hold Ø18
anged L = 120 mm
2 4
19
Solar control unit fas-
tening screw M3 x 35
2 2
20
Domestic Sol installa-
tion screw M8 x 45
- 2
