Immergas ERP - Circulation Group Available Head; Technical Data

IE
26
Technical data.
max. operating overpressure 6 bar
max. operating temperature 120°C
Safety valve 6 bar
Power absorbed by pump 80 W
Flow meter 2-12 / 8 / 28 l/min
EEI ≤ 0.20 - Part 3
7

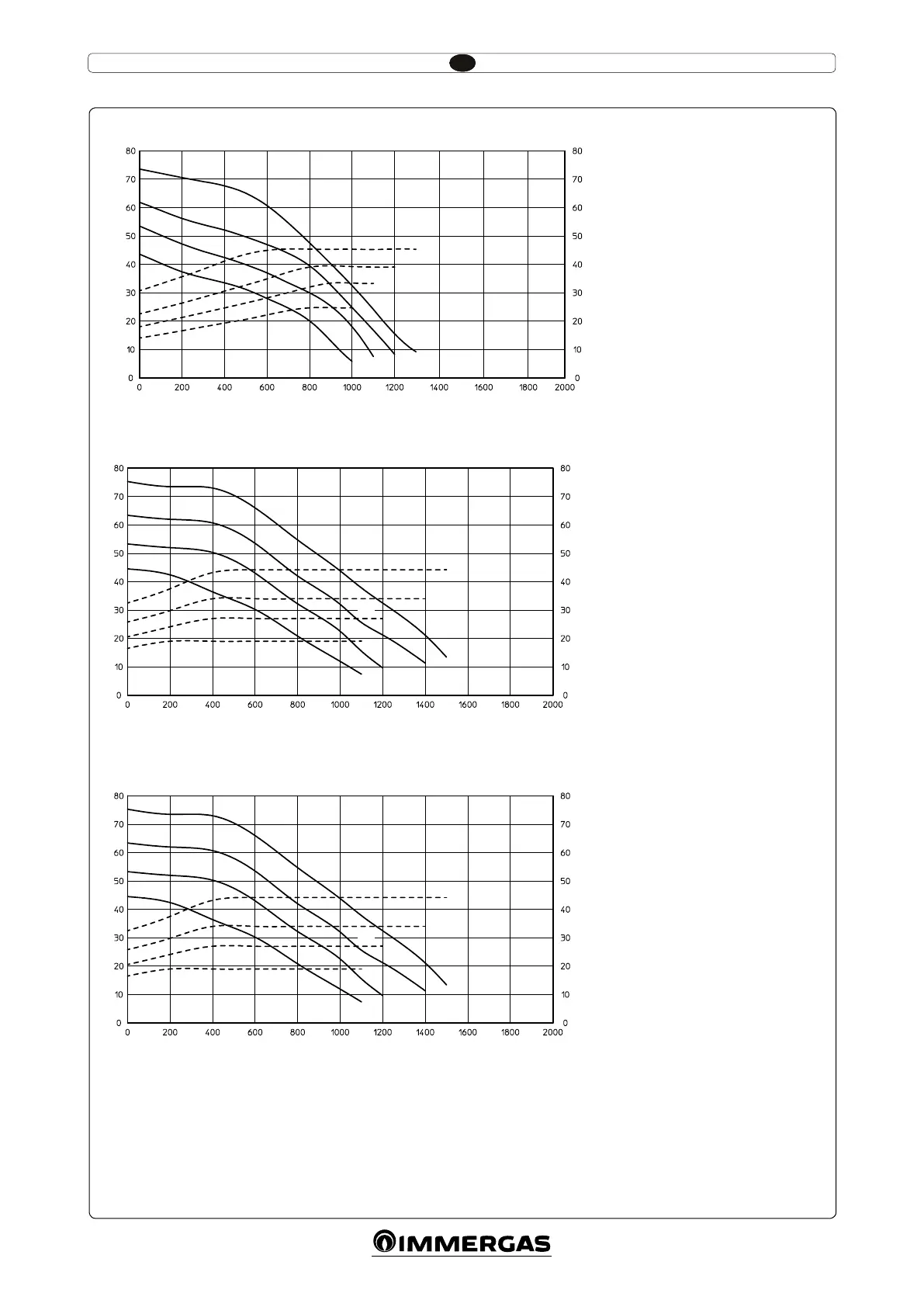

Circulation group available head.
Key:
Vn = Available head
An = Circulating pump absorbed power
Circulator pump absorbed power (W)
Flow rate (l/h)
Head (kPa)
V4
V3
V2
V1
A4
A3
A2
A1
Circulator pump absorbed power (W)
Flow rate (l/h)
Head (kPa)
V4
V3
V2
V1
A4
A3
A2
A1
Version 2 / 12 l/min
Version 1 / 6 l/min
Version 8 / 28 l/min
V4
V3
V2
V1
A4
A3
A2
A1
Circulator pump absorbed power (W)
Flow rate (l/h)
Head (kPa)
