INSTALLING THE CONNECTION AND DRAIN PIPES

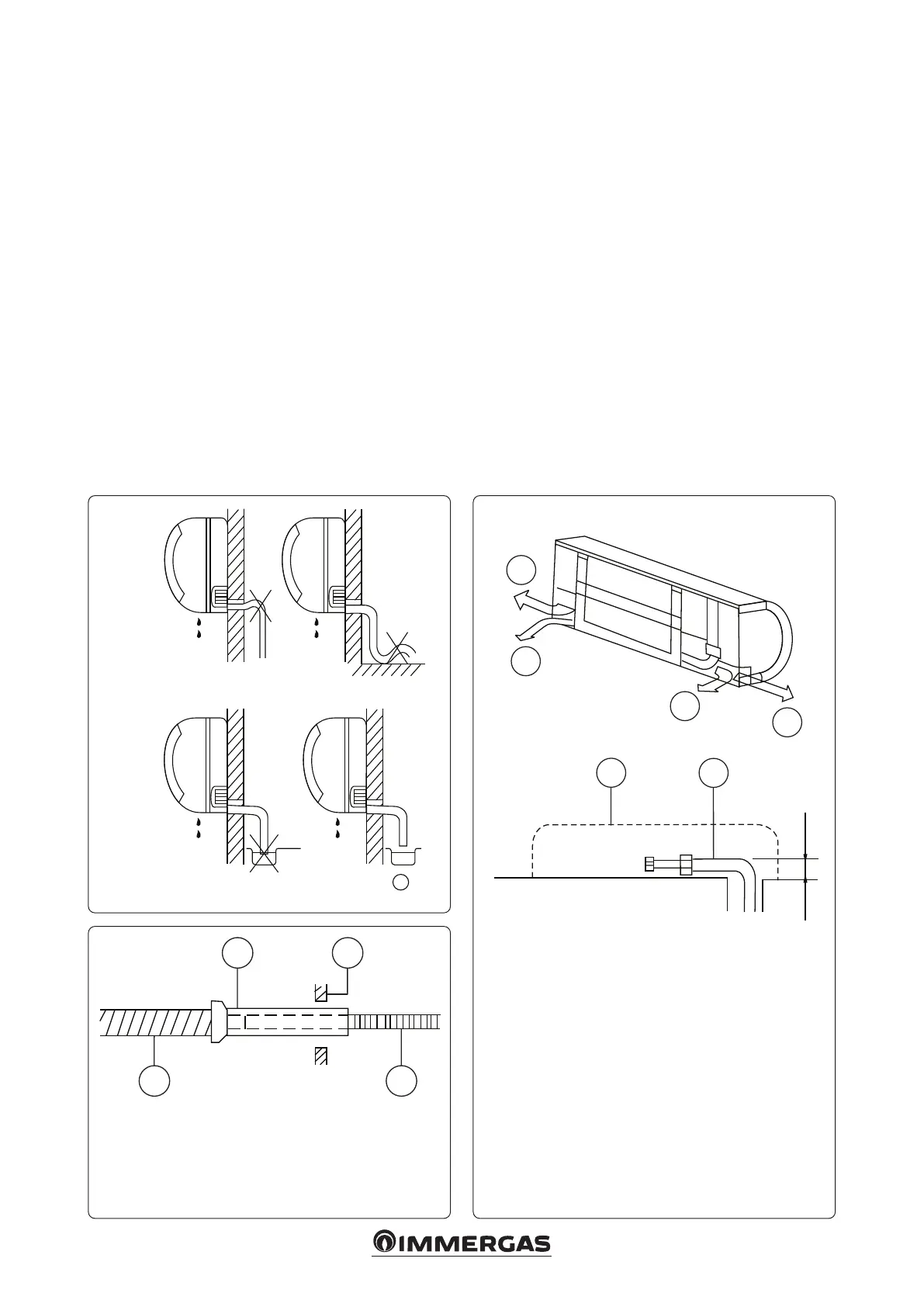

• Drainage
- Insert the drain pipe so that it slopes slightly downwards.
In (Fig. 9) shows the proper installation and those that
are not allowed.
- When connecting the drain pipe, insulate the part con-
necting the extension with the hard plastic pipe (Fig. 10).
• Connection pipe (Fig. 11)
- Install the le and rear le pipes as shown below. Bend
the connection pipe to a height of 43 mm or less from the
wall.
- Secure the end of the connection pipe (see the tightening
procedure in the section on INSTALLING THE WATER
PIPES). When connected, cover all of the pipes with heat-
resistant material.
Key:
1 - Hard plastic pipe
2 - Wall
3 - Drain pipe
4 - Drain pipe extension
Key:
1 - Le pipe
2 - Rear le pipe
3 - Rearright pipe
4 - Right pipe
5 - Indoor unit prole
6 - Connection pipe
BOTTOM VIEW
Note: bend and position the pipe carefully.
Ensure the pipe does not protrude from the back of the
indoor unit.
Make sure the drain pipe is connected correctly.
Insulate the supply and return pipes.
Pass the drain pipe under the supply pipe and the return pipe.
In the event of supply and return piping connections coming
from the le side (looking at the split front), we recommend
using a cassette tape to split predisposition, recessed to avoid
having joints hydronic bulwarks.
