STMiN3E ed 09/11 MINI NIKE 3 E
Technical Documentation
Technical Documentation

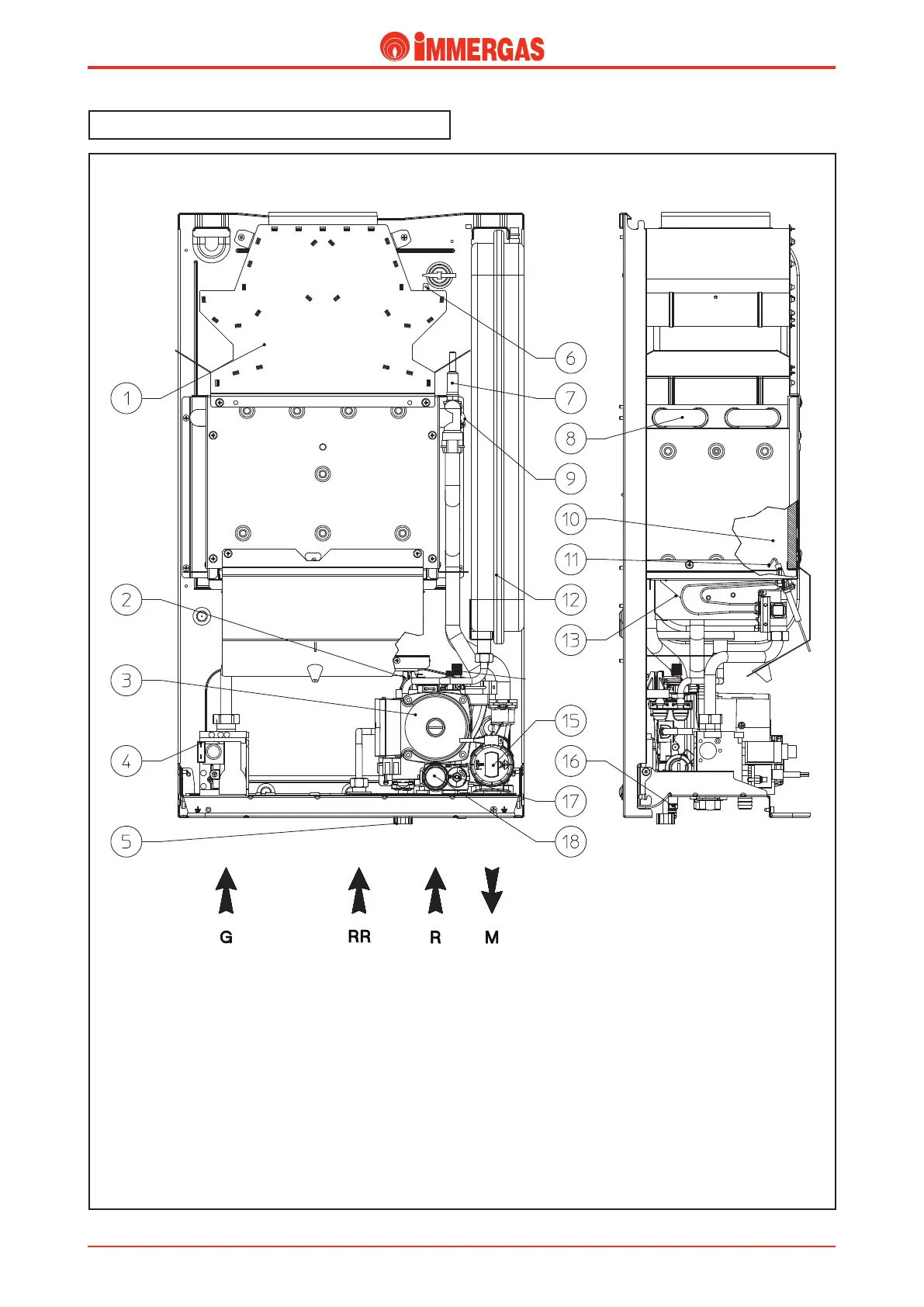

Key:
1 - Flue hood
2 - System pressure switch
3 - Boiler pump
4 - Gas valve
5 - System lling valve
6 - Flue safety thermostat
7 - Safety thermostat
8 - Primary heat exchanger
9 - Flow probe
10 - Combustion chamber
Main MINI NIKE X 24 parts
11 - Ignition and detection electrodes
12 - System expansion vessel
13 - Burner
14 - Air vent valve
16 - 3-way valve (motorised) (optional)
17 - System draining valve
18 - By-pass
19 - 3 bar safety valve
N.B.: connection group (optional)
