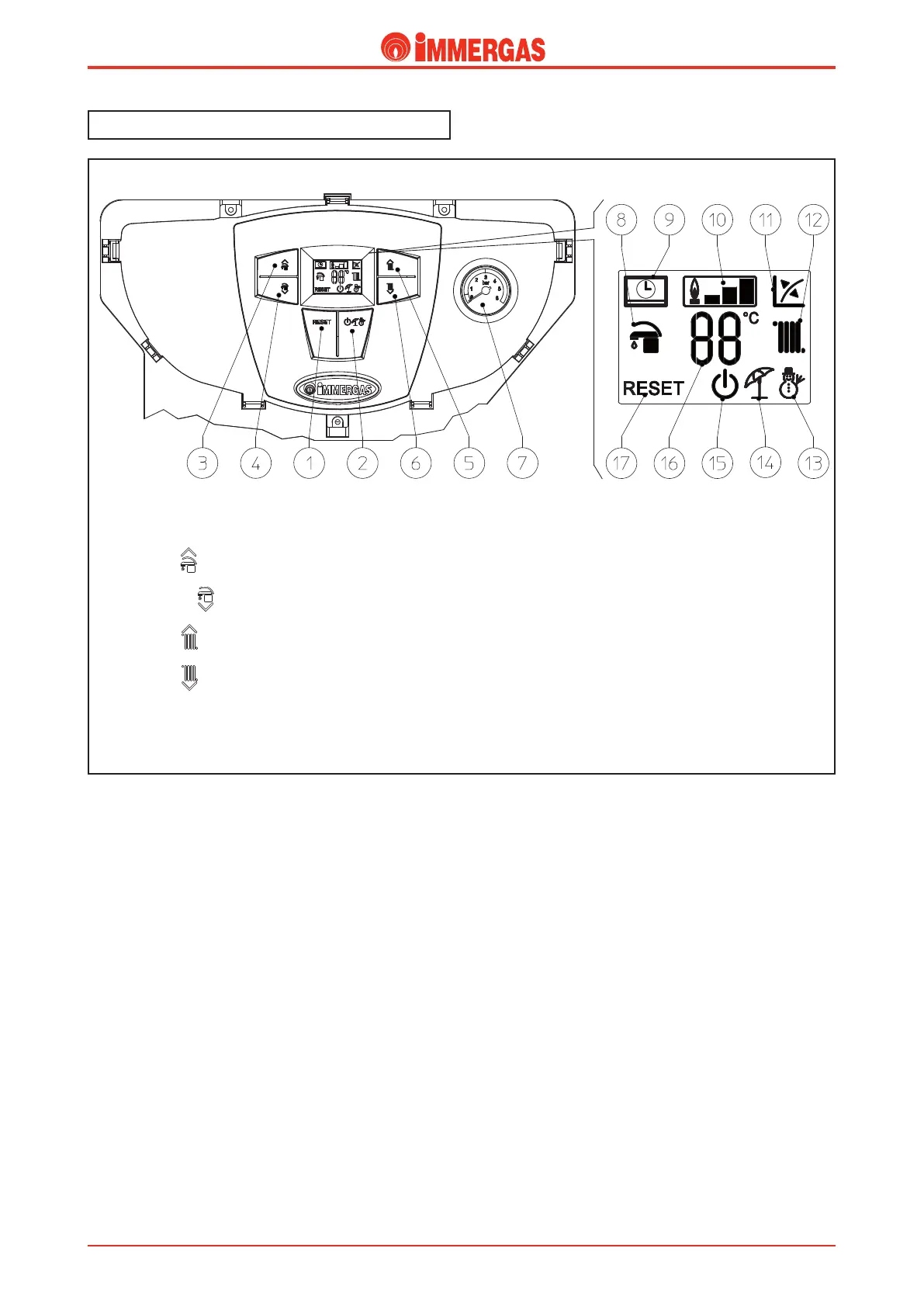

Control panel
Key:
1 - Reset Button
2 - Stand-by / O / Summer / Winter button
3 - Key ( ) to increase
the domestic hot water temperature
4 - Button ( ) to reduce
the domestic hot water temperature
5 - Key ( ) to increase the system water
temperature
6 - Key ( ) to reduce the system water
temperature
7 - Boiler manometer
8 - DHW production phase function active
9 - Boiler connected to remote control (optional)
10 - Flame presence symbol and relative output scale
11 - Operation with external temperature probe active
(optional)
12 - Central heating room phase function active
13 - Operation in winter mode
14 - Operation in summer mode
15 - Boiler in Stand-by mode
16 - Temperature and error code display
17 - Boiler in block does not require release via “Reset”
button
