STVP ed 02/06 VICTRIX Plus
VICTRIX PLUS
Condensation-type wall-hung room sealed
fan-assisted boiler for central heating only
or with an external storage tank.
VICTRIX 20 Plus
VICTRIX 27 Plus
General features.

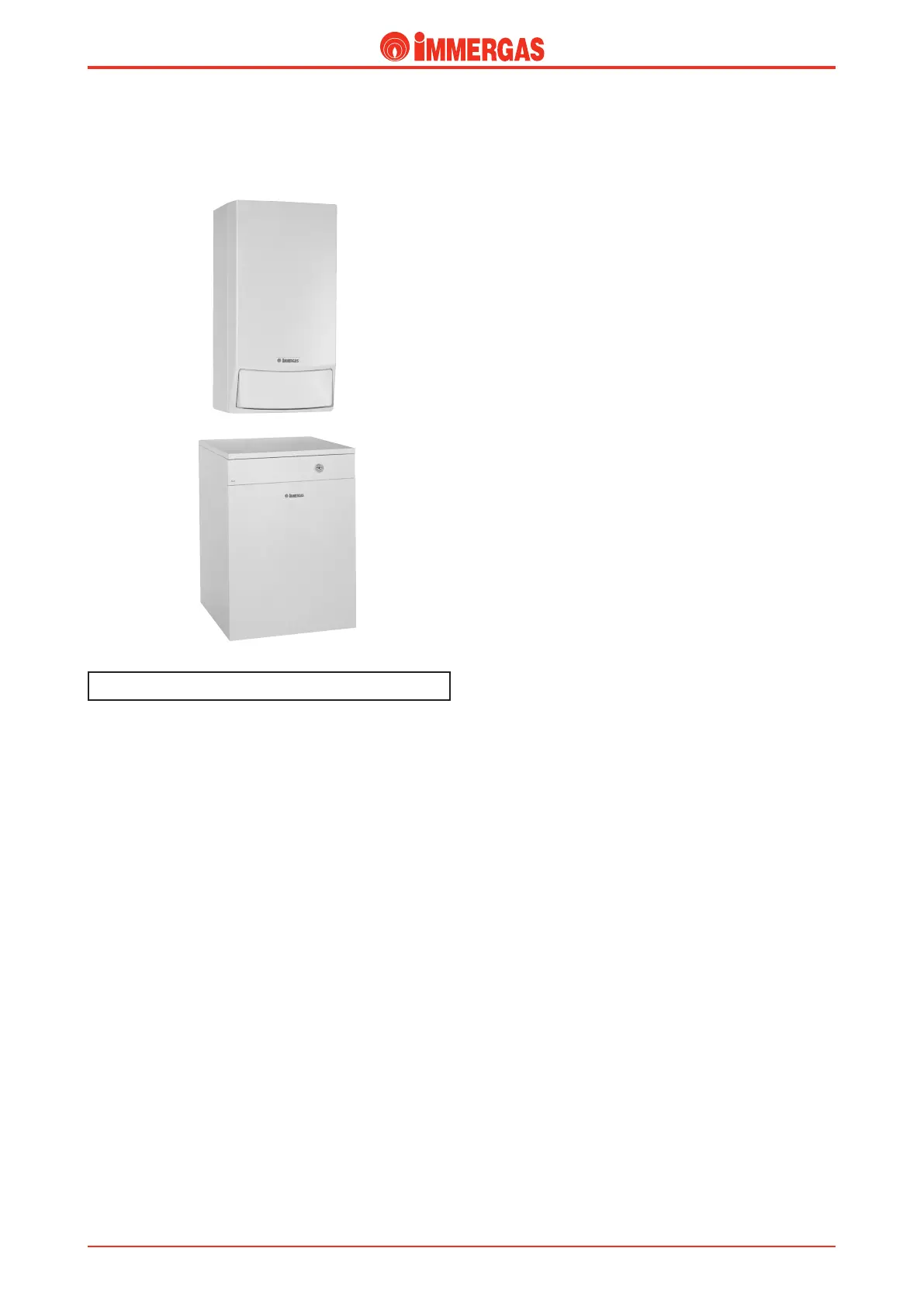

VICTRIX Plus is a condensation type wall-hung room sealed
fan-assisted boiler for central heating only, designed to work
with a Plus storage tank with an 80, 105, 120 or 200-litre
capacity.
anks to the condensation technology this boiler stands out
for its high performance and wide modulation range (from
20% to 100% of nominal heat power).
ere are two versions in the range with working outputs of
23.5 kW (20210 kcal/h) and 32.0 kW (27520 kcal/h) and
both models feature an innovative total premix combustion
system that ensures minimal pollution emissions. ey can
run on natural gas or LPG.
anks to their excellent energy performance, these boilers
bear the 4-star mark (´´´´) in conformity with the P.D.
660/96.
e appliance is regulated and controlled by means of a printed
microprocessor control board which, via a display, shows the
state of boiler operation (temperatures, safety devices, etc.) and
enables it to be connected (optional) to the Remote Control,
to the external probe, to the zone control unit and to the
Multisystem Distribution Manifold.
e hydraulic circuit features a water-gas coil exchanger in
stainless steel, a 3-way hydraulic diverter valve and an adjustable
by-pass on the system.
All boilers are fitted with an antifreeze device for temperatures
of -5 °C.
e VICTRIX Plus boiler has to be installed using the suc-
tion/exhaust kit or the ducting systems (60 mm Ø rigid and
80 mm Ø flexible) made of plastic and expressly conceived for
the Immergas condensation boilers.
e AISI 316L stainless steel storage tanks are supplied with
an anode and domestic hot water expansion vessel as standard
features and can be connected to the recirculation system by
means of a specific kit (optional).
