STVP ed 02/06 VICTRIX Plus

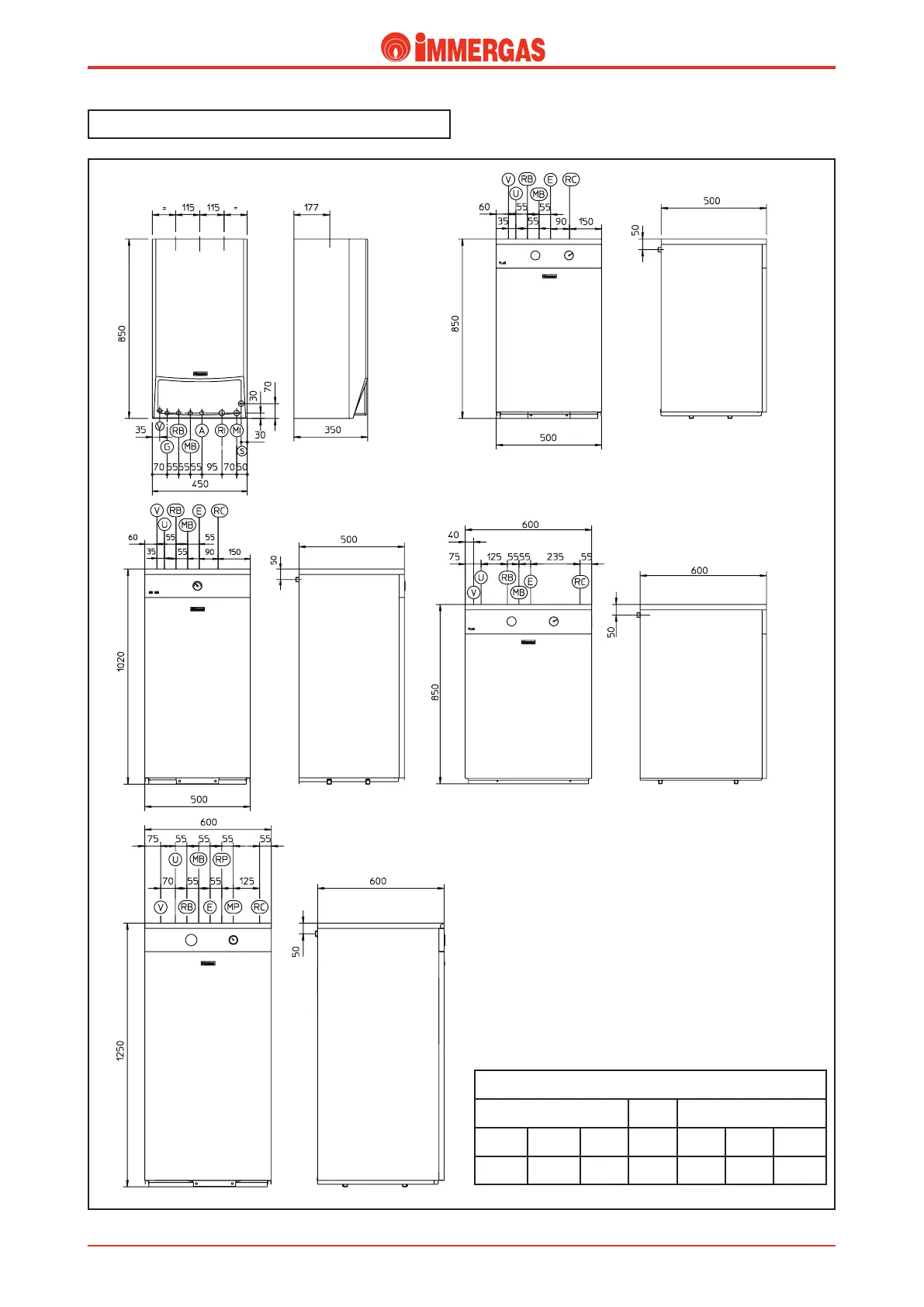

VICTRIX 20 Plus main dimensions.
80-litre storage tank
200-litre storage tank
105-litre storage tank
120-litre storage tank
Legend:
V - Power connection
U - D.h.w. outlet
G - Gas supply
RB - Boiler return
MB - Boiler delivery
A - System filling
E - D.h.w. (cold) inlet
RI - System return
MI - System delivery
RP - Solar panel return (optional)
MP - Solar panel delivery (optional)
S - Condensation runoff
RC - Recirculation (optional)
FITTINGS
SYSTEM GAS D.H.W.
MB-RB MI-RI MP-RP G Inlet Outlet RC
3/4” 3/4” 3/4” 1/2” 1/2” 1/2” 1/2”
