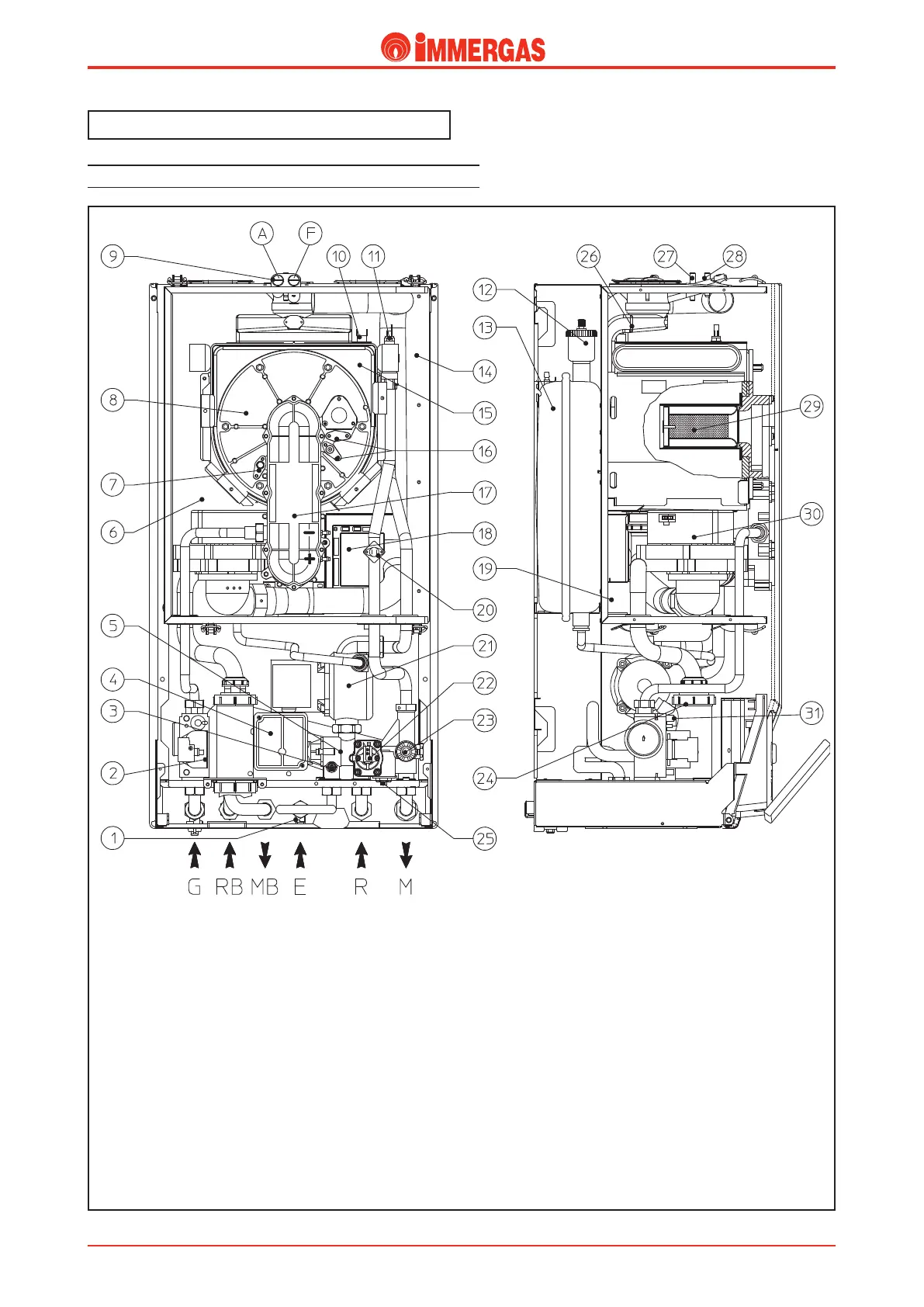

VICTRIX Plus main components.
Legend:
1 - System filling valve
2 - Gas valve
3 - System drainage fitting
4 - Gear motor for the 3-way diverter valve
5 - 3-way diverter valve
6 - Sealed chamber back
7 - Detection electrode
8 - Condensation module lid
9 - Intake traps (air A) - (fumes F)
10 - Fume thermostat
11 - Heating limit and adjustment NTC probe
12 - Air vent
13 - Expansion vessel
14 - Air intake pipe
15 - Condensation module
16 - Ignition electrodes
17 - Sleeve with Venturi housing
18 - Electronic control unit
19 - Voltage transformer
20 - Overtemperature safety thermostat
21 - Circulator
22 - Pump safety pressure switch
23 - System safety valve 3 bar
24 - Condensation siphon
25 - Adjustable by-pass
26 - Draught diverter
27 - Positive signal pressure point
28 - Negative signal pressure point
29 - Burner
30 - Air fan
31 - Gas valve outlet pressure test
(from the serial number 3035590 for VICTRIX 20 Plus)
(from the serial number 2773117 for VICTRIX 27 Plus)
