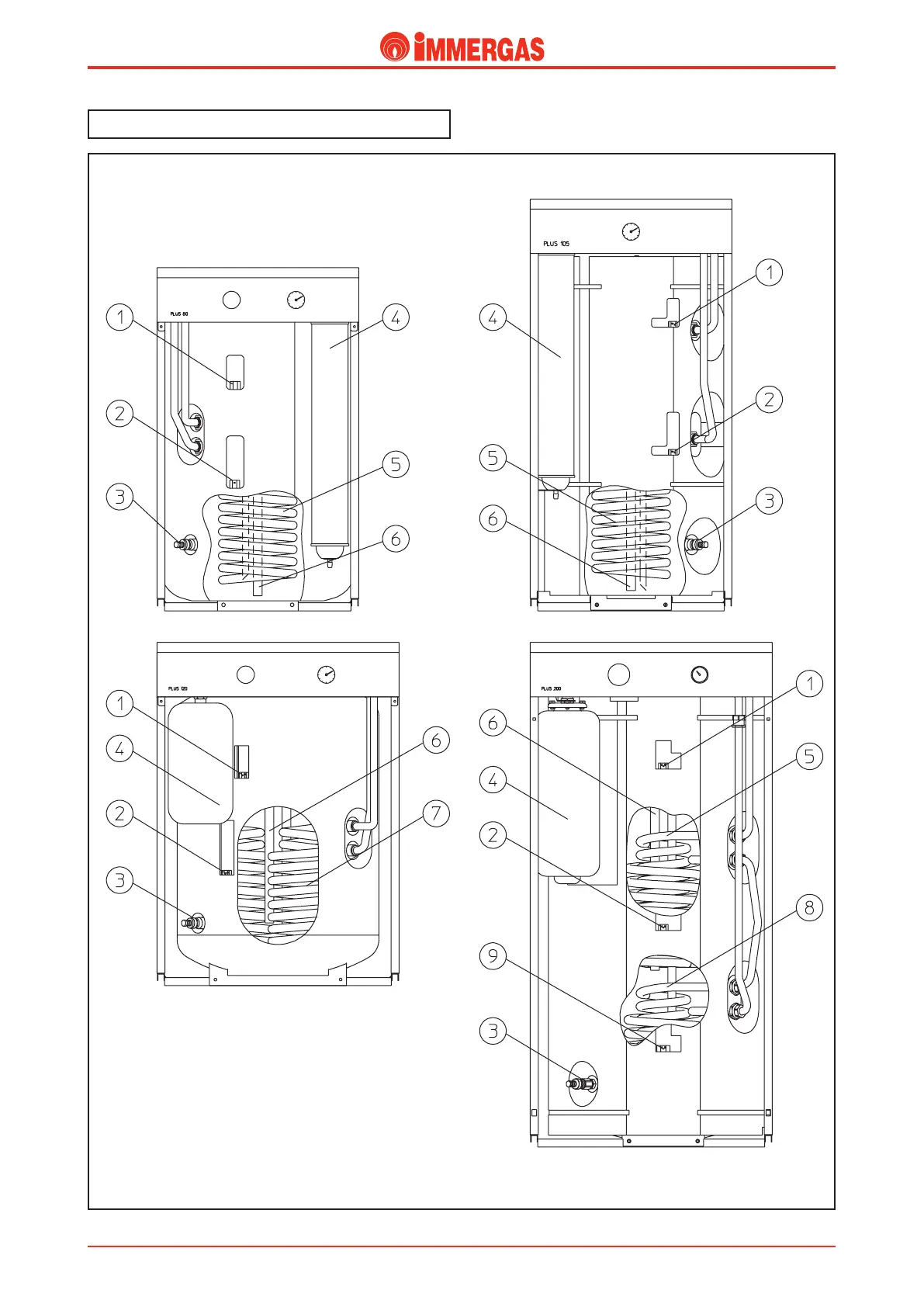

Storage tank main components.
Legend:
1 - ermometer
2 - D.h.w. probe
3 - D.h.w. drainage cock
4 - D.h.w. expansion vessel
5 - Coil
6 - Magnesium anode
7 - Double coil
8 - Coil for use with solar panels
9 - Solar panels probe (Optional for the 200-litre S.T. only)
80-litre storage tank
120-litre storage tank
105-litre storage tank
200-litre storage tank
