Immergas VICTRIX 50 - VICTRIX 50 Main Dimensions

2
STV50 ed 09/08 VICTRIX 50 Rev. 002

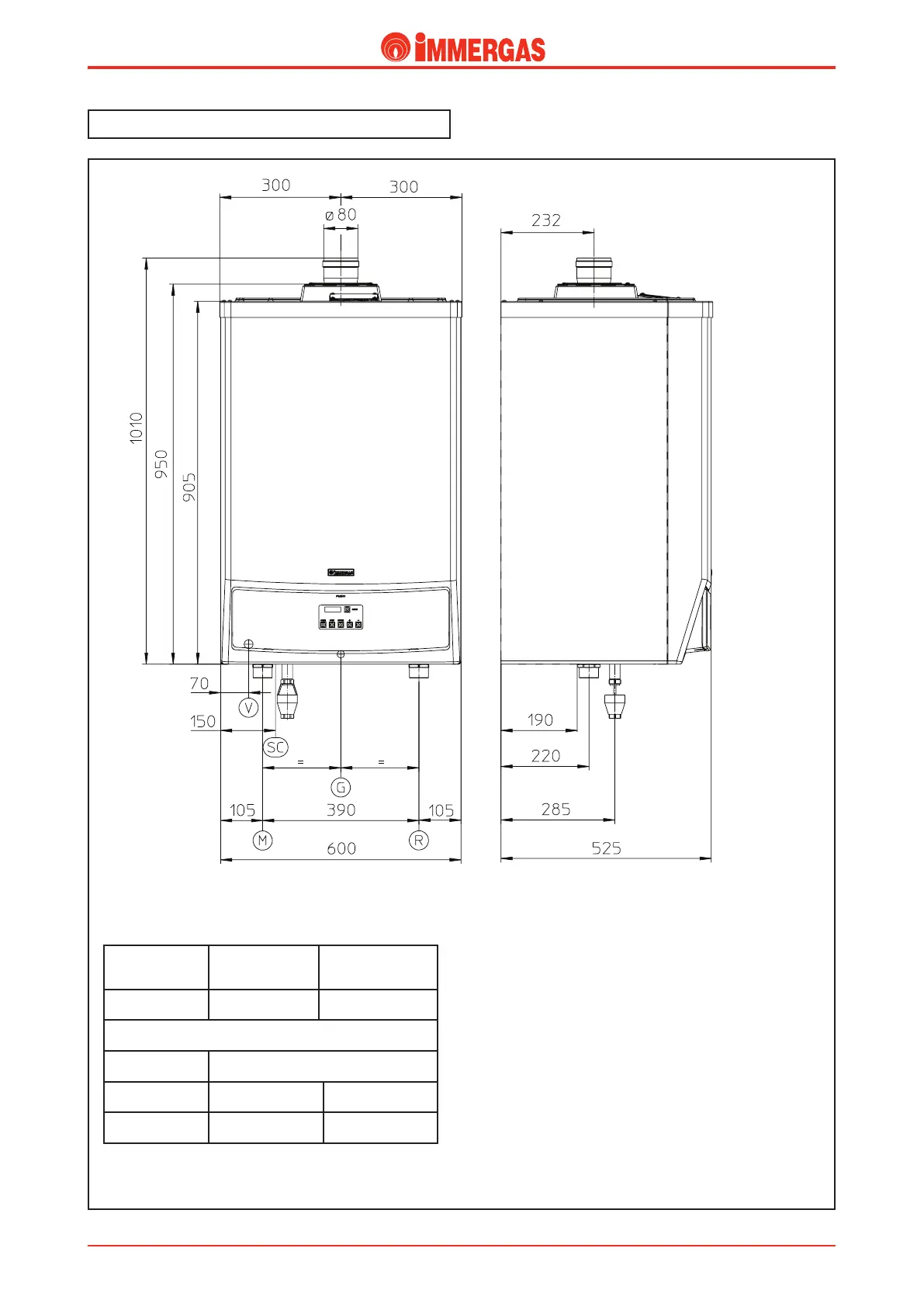

VICTRIX 50 main dimensions.
Legend:
V - electrical connection
G - Gas supply
R - System return
M - System delivery
SC - Condensate discarge (minimum
internal diameter 13 mm Ø)
Height (mm) Width (mm) Depth (mm)
950 600 525
Connections
GAS SYSTEM
G R M
3/4” 1”1/2 1”1/2
