Technical Notes:
- e jumper X40 must be removed.
- e parameter 'Heating request type' must be set as 'Room thermostat setpoint' (default value).
- It is possible to connect the following sensors to the device and read them via BUS:
- External probe (B4);
- DHW probe (B2);
- DHW Contact or ermostat (S50).
- e DHW can be managed locally (appropriately congure the 3-way valve via the parameters in the "Relay
settings" menu).

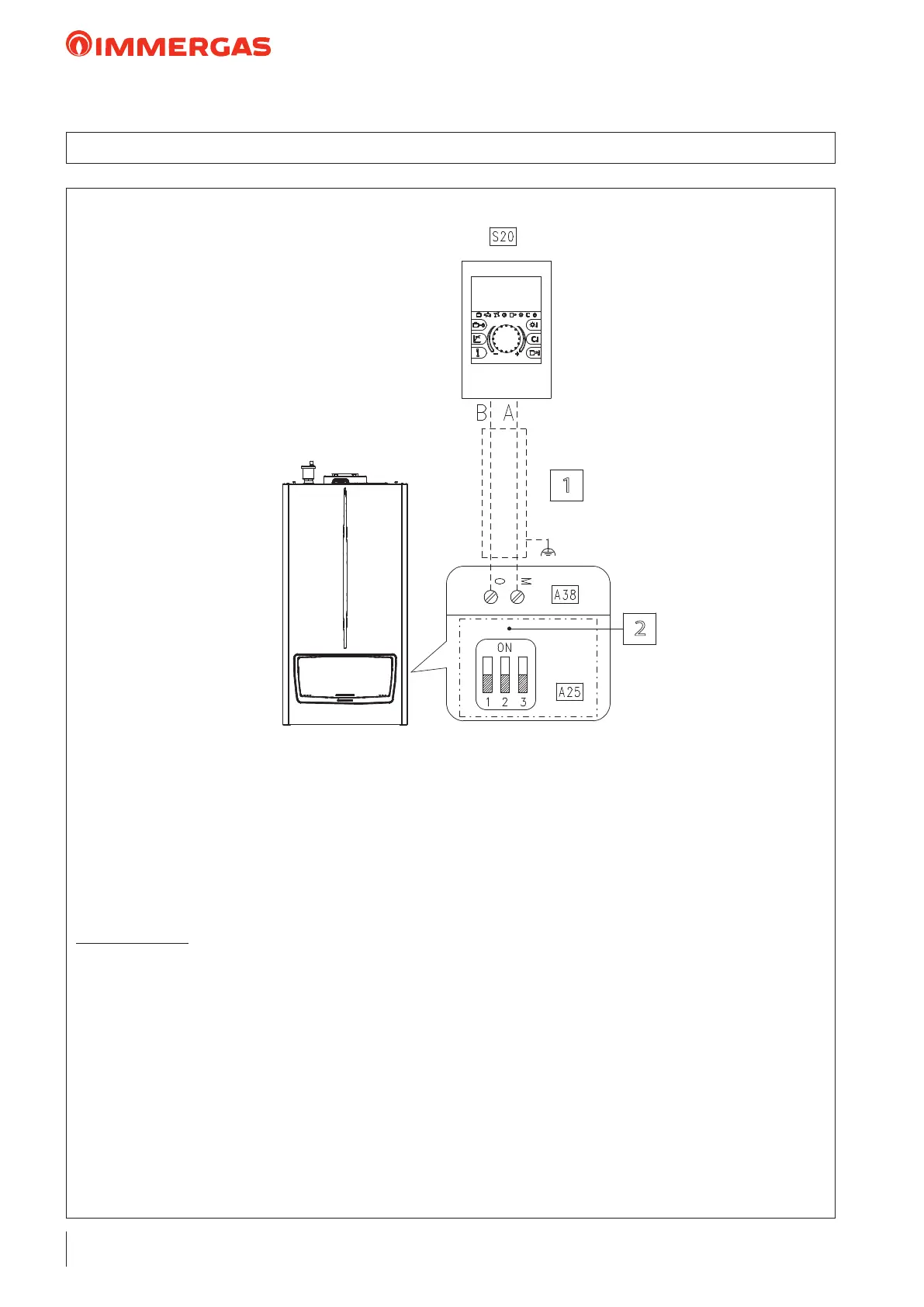

26.17 WIRING DIAGRAM: VICTRIX PRO V2 EU REMOTE CONTROL
Key:
A25 - CLIP-IN (optional) code: 3.034122
A38 - Connection card (signals)
S20 - Room thermostat (optional)
1 - Cable type: J-Y(St)Y 2x2x0,6. Maximum permit-
ted length: 50 m
2 - Address = 0
