VICTRIX PRO V2 EU
128
e cascade and zones regulator allows to manage, control and
program the functioning sequence of the connected boilers.
It consists of 2 elements, an interface with display and push-
button panel and a terminal board for electric connections
from DIN rail to be inserted inside the electric panel of the
thermal control unit.
e 2 elements are connected by at cable for data transmission
included in the kit Code: 3.034119.
N.B.: to connect the Cascade and zone regulator kit to the
generators, therefore, the terminal board for electric connec-
tions, you must use the Clip-in communication board code:
3.034122 for each boiler connected.
When the Cascade and zone regulator is installed, it will be
necessary to remove the "X40" jumper included in the standard
conguration of the boiler P.C.B.
e electrical connection is made with 2 wires powered at
230V (diameter 1.5 mm
2
).
e connection to the boiler, , therefore to Clip-in, takes place
with 2 BUS data cables with maximum length of 50 metres.
e Cascade and zone regulator allows to:
• manage up to 8 appliances in set conguration;
• manage a maximum of three zones (2 of which may be
mixed) and a zone enabled for DHW production via separate
storage tank.
• up to 2 expansion kits can be added Code: 3.034124 for each
cascade and zone regulator, to control additional zones (one
zone for each expansion);
• it is possible to replicate the system described above up to
3 times with 3 cascade and zone regulator kits, 6 expansion
kits and 1 signal repeater kit; in this case up to 15 zones of
the system and 3 DHW protection circuits can be managed;
• set two room temperature values: one for day (comfort
temperature) and one for night (reduced temperature) with
the aid of the zone manager kit;
• manage the domestic hot water temperature also with the
programmable anti-Legionella function with a specific
calendar (coupled to a storage tank unit managed as a zone
with a pump);
• select the operation mode for space heating and DHW at:
- comfort temperature,
- reduced temperature,
- adjustable antifreeze temperature;
• manage the boiler ow temperature depending on the ex-
ternal temperature with setting of the climatic curve;
• obtain information regarding the system:
- system temperature,
- operating mode,
- counter data,
- timer program,
- pump operation status,
- operation and values of the variable inputs;
• impostare i parametri di funzionamento:
30.1 FEATURES
30 CASCADE AND ZONE REGULATOR CODE 3.034119

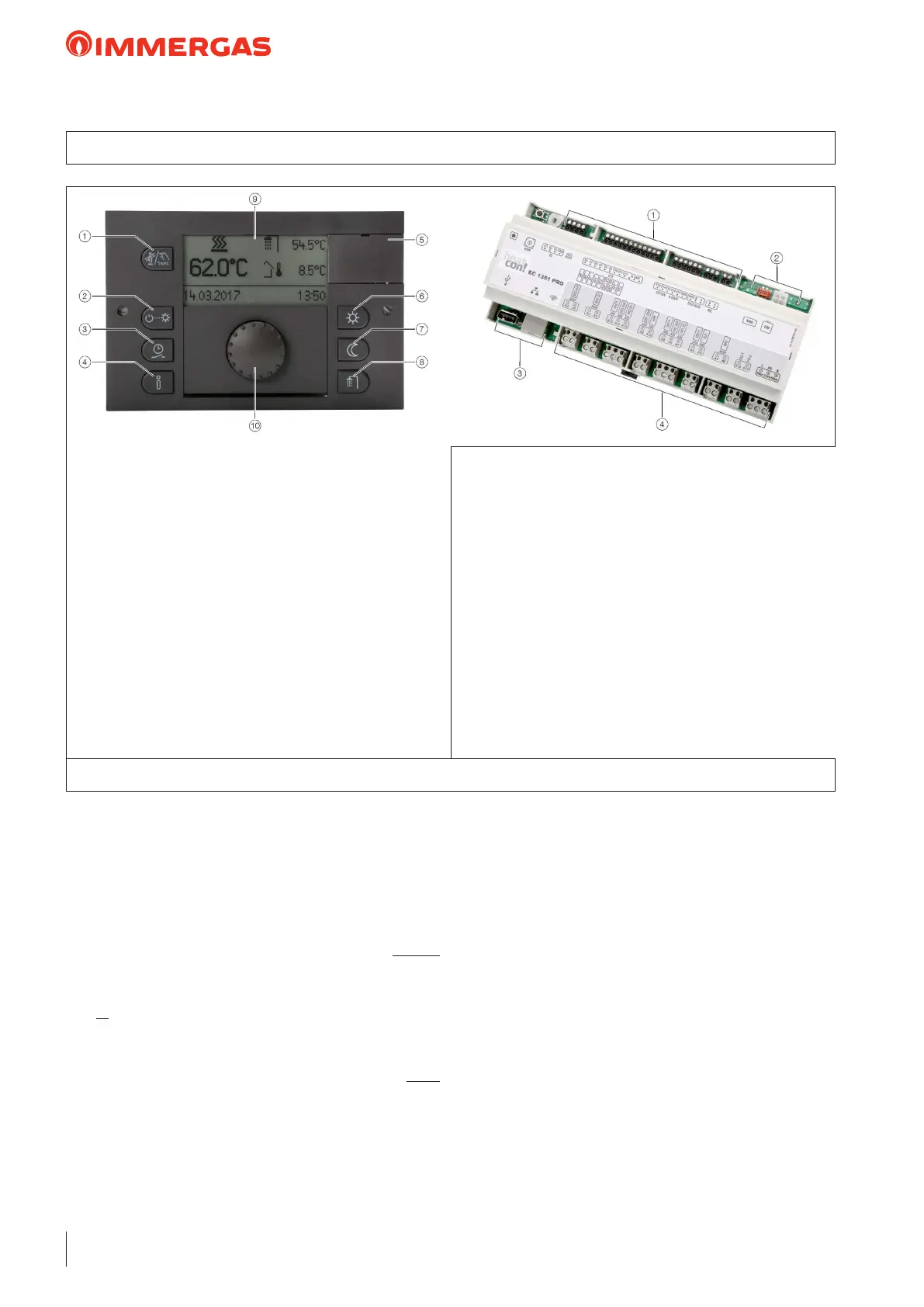

INTERFACE KEY:
1 - "Emissions measurement / manual mode" button.
2 - "Operating scenarios/mode" button
3 - "Programming" button
4 - "Info" button
5 - Connection lid
6 - "Well-being/economy temperature" button
7 - "Reduced temperature" button
8 - "Daily hot water temperature" button
9 - Display
10 - Knob (push and turn)
TERMINAL BOARD KEY:
1 - Low voltage connections
2 - Bus data for system expansion
3 - USB/network connection
4 - 230V connections
Dimensions (H x L x P) mm 96 x 144 x 75
