VICTRIX PRO V2 100 - 120 - 150 -180 EU
32
KEY:
1 - 2 Gaskets 18.5x11.5x2 AFM 34/2
2 - 4 Gaskets 38X28X2 mm in Fasit So RG
3 - 8 Gaskets 44X34X2 mm in Fasit So RG
4 - Plate heat exchanger threaded connec-
tions Ø 1" ¼
5 - O.R. 18X2 Nitrile 70 SH
6 - Hose union tting type Roma fem. G½"
X15
7 - Cock G1/2 MF with bar hold
8 - 110-plate heat exchanger XB12L-1-110
9 - Cap G½" F
10 - Brass plug Kramer G½" male
11 - Pipe DN40 G1" ½ on ow
12 - Pipe DN40 G1" ½ L.478
13 - Pipe DN40 G1" ½ L.88
14 - Pipe DN45 G2" ½ return
15 - Pipe DN45 G2" ½ long
16 - Pipe DN45 G2" ½ short
17 - Pipe DN45 G2" ½ return
18 - Set kit ow pipe
19 - Automatic air vent valve ½" mini
20 - Boiler

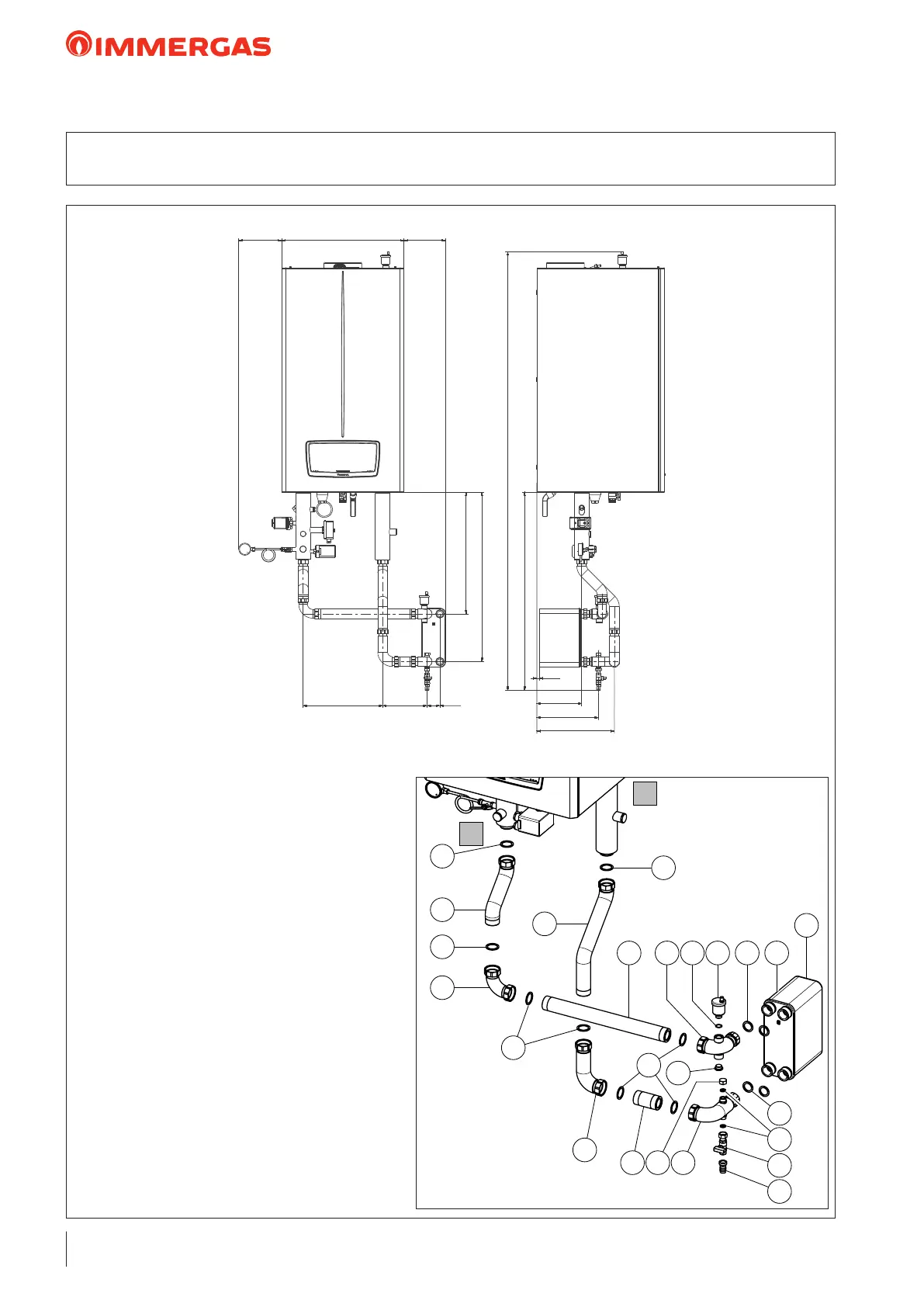

12.3 DIMENSIONS AND INSTALLATION OF RH PLATE EXCHANGER KIT
FOR VICTRIX PRO V2 100  120  150  180 EU SINGLE BOILER CODE: 3.033677
R
M
1
2
2
3
3
3
3
4
19
516
7
6
8
159
10
13
12
14
11
20
3
17
18
600 204
597
218390
831
2151
973
12
302
380
220
63
210
