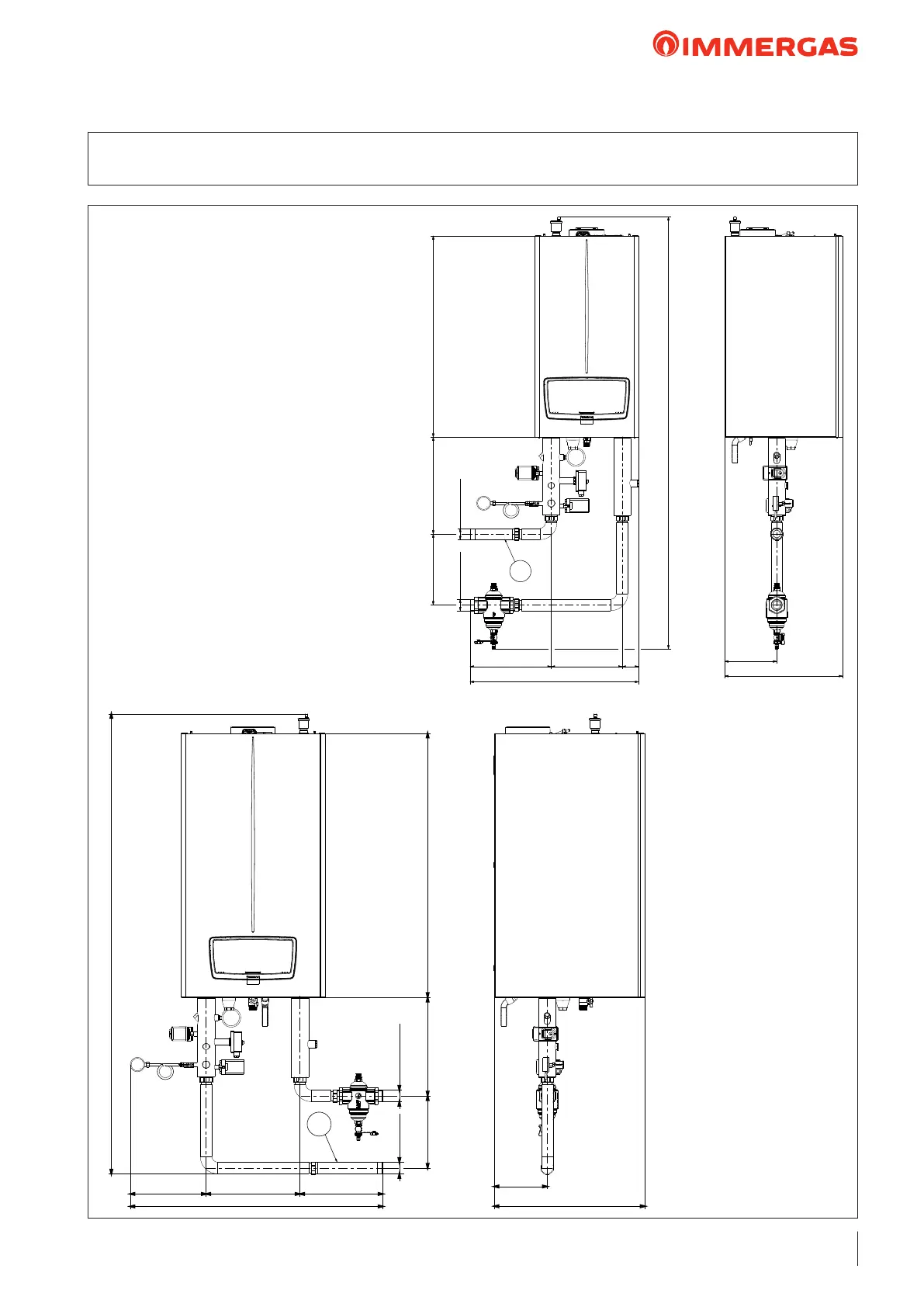

13.1 DIMENSIONS AND CONNECTIONS RH/LH SLUDGE REMOVER KIT
FOR VICTRIX PRO V2 EU SINGLE INSTALLATION CODE: 3.033673
390 345315
1050
G 1 1/2"
G 1 1/2"
300 409.6 1098
1913
220
627
5B
300
G 1 1/2"
G 1 1/2"
409.5
851
1827
343 300 70
713
220
499
5A
