VICTRIX PRO V2 EU
36
KEY:
1 - 6 Gaskets 44x34x2
2 - Set kit ow pipe
3 - 2 Brass nipples G1 1/2 G2 mm
4 - Sludge remover G2 R146 MY018
5a - Pipe DN40 G1 1/2 L 199
5b - Pipe DN40 G1 1/2 L 289
5c - Pipe DN40 G1 1/2 L 111
6 - Sludge remover kit ow pipe
7 - Boiler

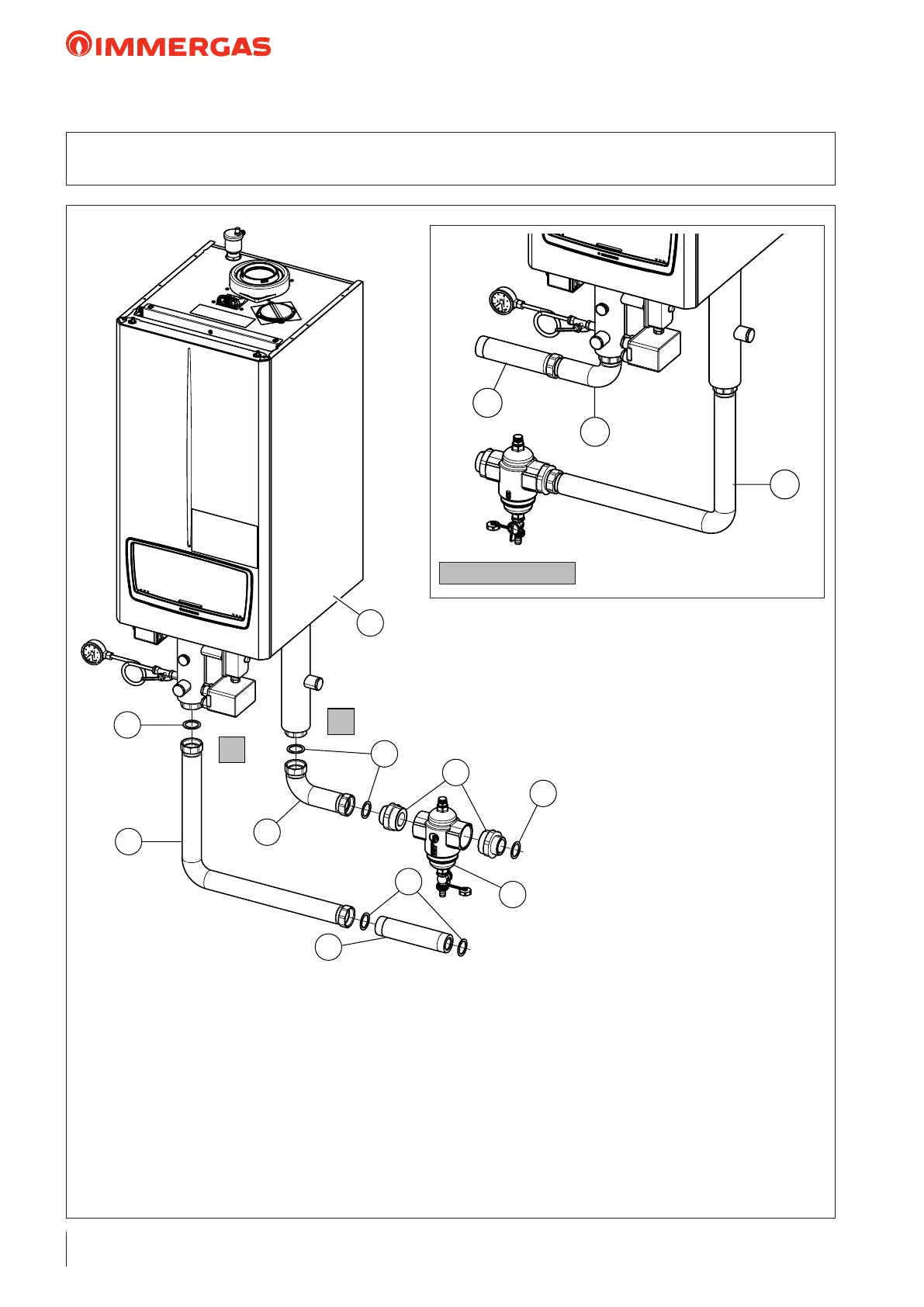

13.2 INSTALLATION OF RH/LH SLUDGE REMOVER KIT FOR VICTRIX PRO V2 EU
SINGLE INSTALLATION CODE: 3.033673
3
5x
1
1
2
4
1
1
6
7
R
M
5x
2
6
LEFT OUTLET
