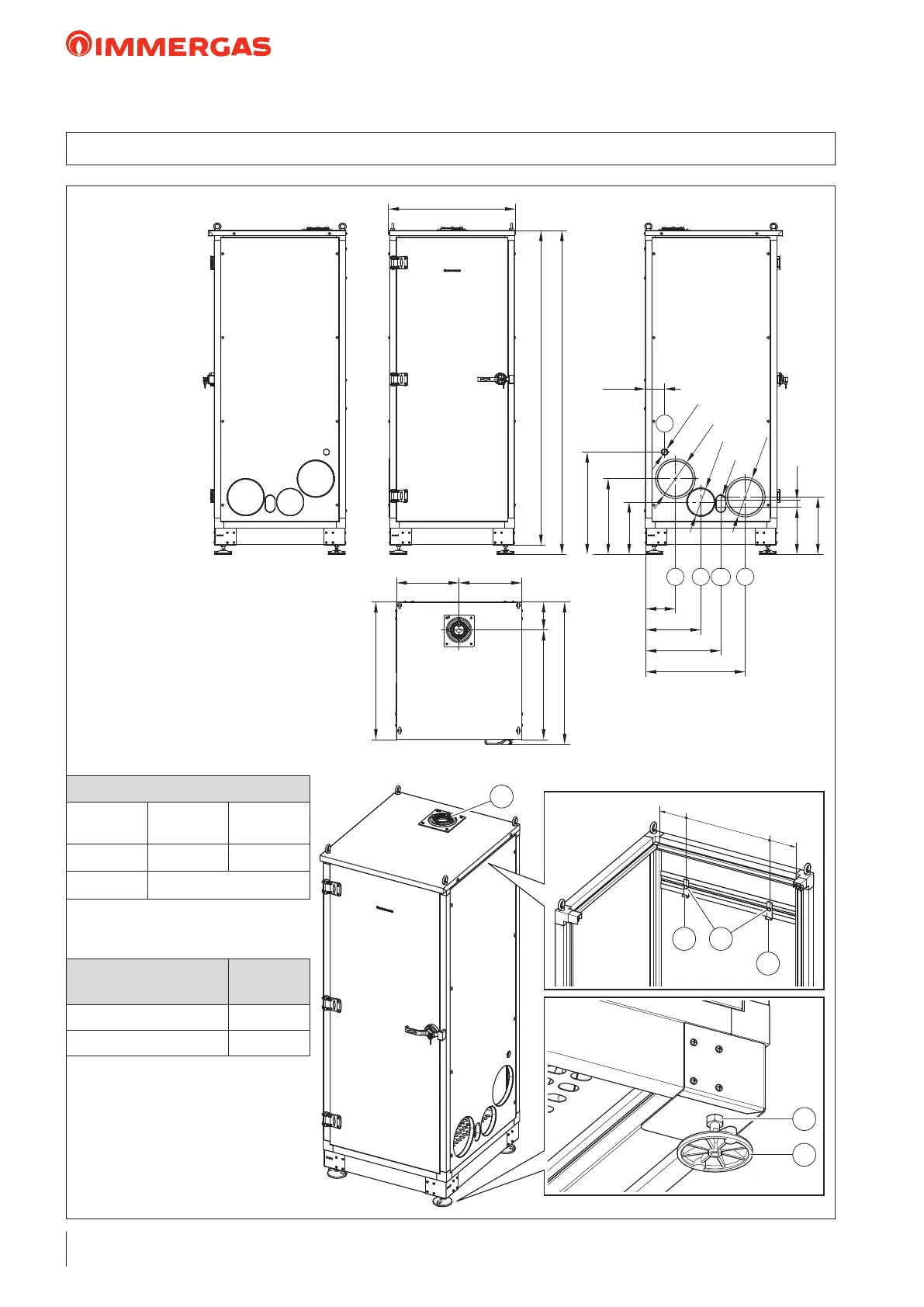

14.1 OUTDOOR VICTRIX PRO V2 EU CABINET KIT MAIN DIMENSIONS
KEY:
V - Electrical connection
G - Gas supply
R - System return
M - System ow
SC - Condensate drain
=
=
y
1
1
2
3
4
5
VICTRIX PRO V2 EU
models
y (mm)
35 - 55 - 60 - 68 - 80 340
100 - 120 - 150 470
Main dimensions (mm)
Height with
feet
Width Depth
1970 772 836
Net weight 125 kg
