Technical note
Hydraulic manifolds (optional) are equipped with non return valve and 3-way valve
on the ow pipe of each thermal module and 2-way shut o valve on the return pipe
to the thermal module.
Inserting the 3-way valve on the ow pipe of the thermal module puts it in commu-
nication with the proper heat carrying uid exhaust system in the module itself to
perform extraordinary maintenance.

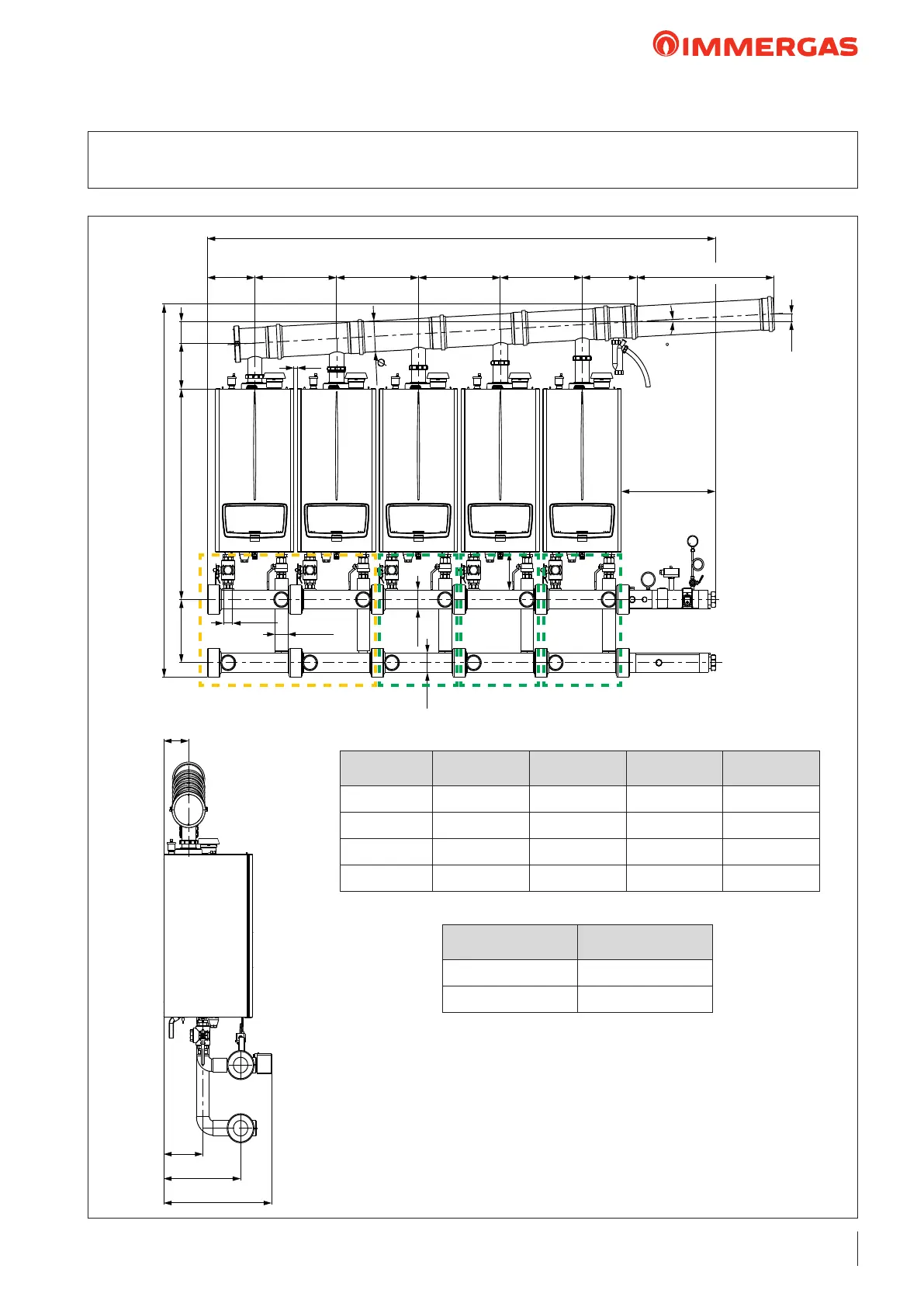

16 KIT DIMENSIONS AND CONNECTIONS OPTIONAL FOR VICTRIX PRO V2
35  55 - 60 - 68 - 80 EU MODULES IN SET CONFIGURATION MAXIMUM 5 APPLIANCES
266 460 460 460 460 308
160
20
330 1100 239 Z
Y
G 1 1/2"
DN65
DN65
200
220
432
606
140
3
105
2000
X
511
G 1 1/2"
A B B B
Ref. Position Code KIT
A 3.032338
B 3.033669
Reference 2 boilers 3 boilers 4 boilers 5 boilers
X 1456 mm 1916 mm 2376 mm 2836 mm
Y 1876 mm 1900 mm 1924 mm 1948 mm
Z 41 mm 65 mm 89 mm 113 mm
Ø 160 mm 160 mm 160 mm 160 mm
